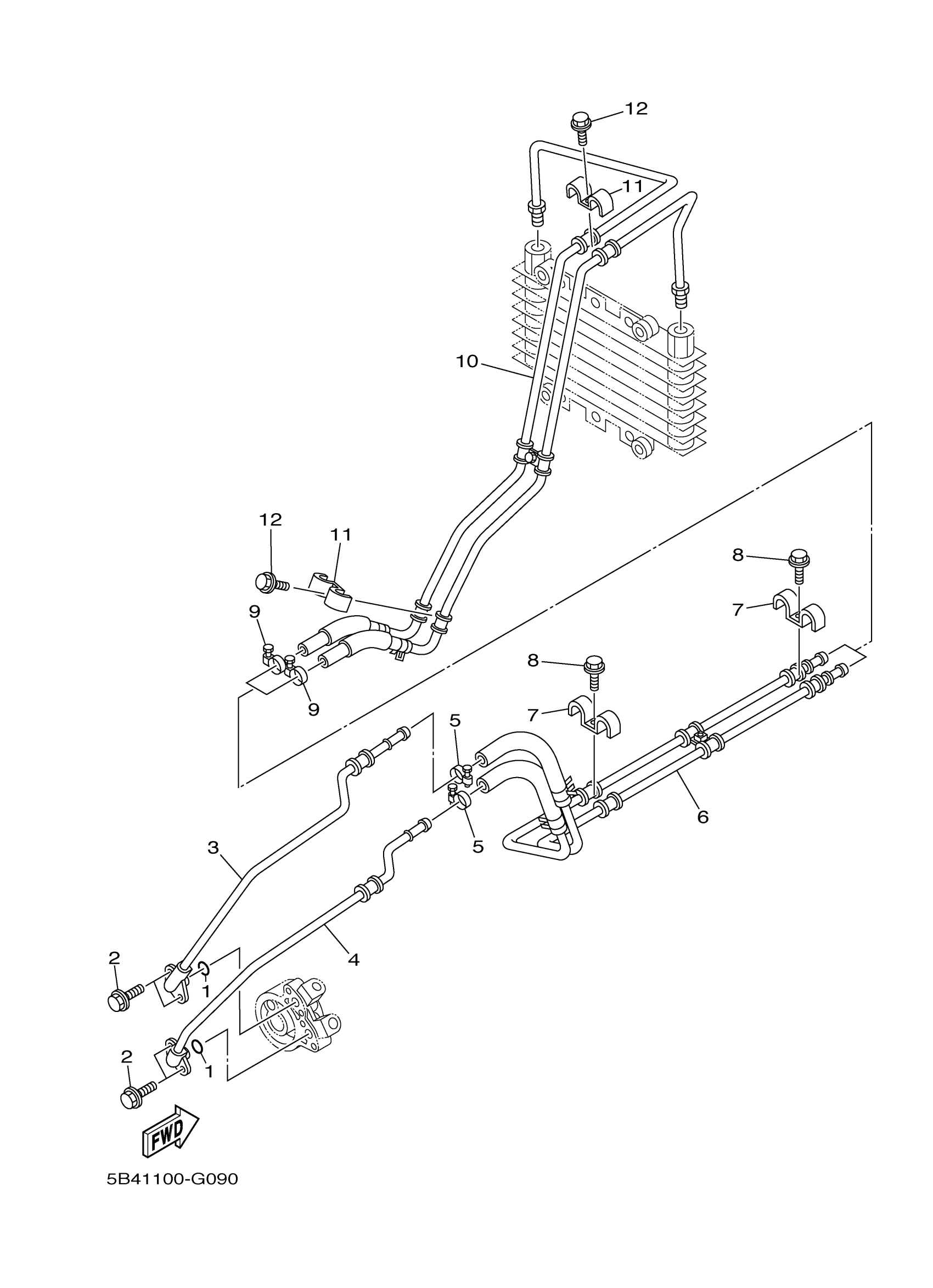

Yamaha YXR7FHY (RHINO 700 FI HUNTER) 5B4T 2009 OIL PIPE Diagram

#

Description

Price

1

O-RING (371)

93210-10197-00

$7.49

2

BOLT(3MA)

91312-06016-00

$5.60

3

PIPE, OIL 1

5B4-13416-00-00

Unavailable

4

PIPE, OIL 2

5B4-13418-00-00

Unavailable

5

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

6

OIL PIPE COMP. 2

5B4-E3406-00-00

Unavailable

7

CLAMP

90462-15800-00

Unavailable

8

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$2.13

9

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

10

OIL PIPE COMP. 1

5B4-E3405-00-00

Unavailable

11

CLAMP

90462-15800-00

Unavailable

12

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$2.13
