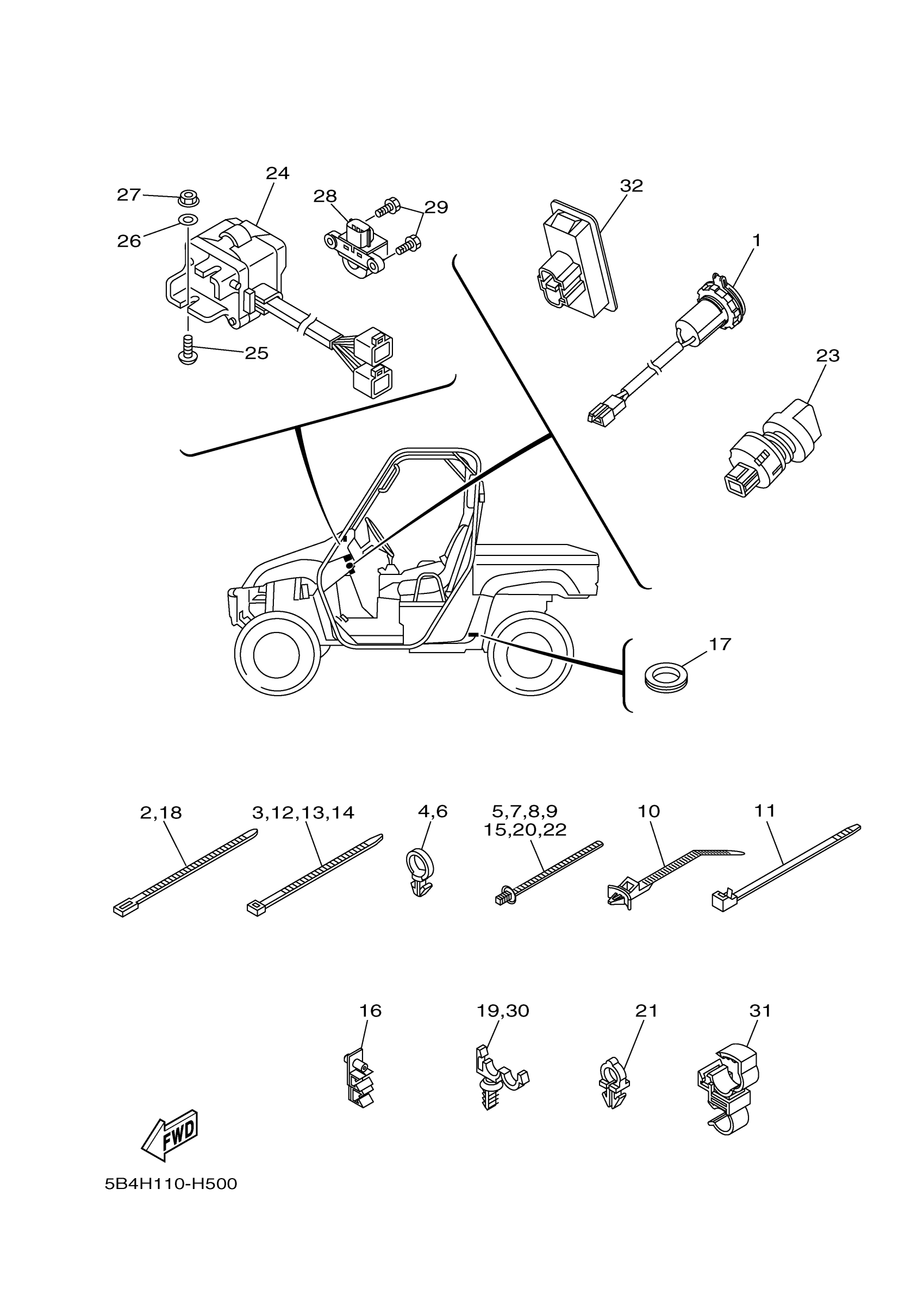

Yamaha YXR7FHY (RHINO 700 FI HUNTER) 5B4T 2009 ELECTRICAL 2 Diagram
#
1
TERMINAL COMP.
1HP-8254B-10-00
Unavailable
2
CLAMP(JN6)
90464-40825-00
$3.05
3
CLAMP
90464-48800-00
Unavailable
4
CLAMP
90464-19815-00
Unavailable
5
CLAMP
90464-20005-00
Unavailable
6
CLAMP
90464-19815-00
Unavailable
7
CLAMP
90464-20005-00
Unavailable
8
CLAMP
90464-20005-00
Unavailable
9
CLAMP
90464-20005-00
Unavailable
10
CLAMP
90464-38800-00
$5.60
11
CLAMP
90464-51800-00
$14.99
12
CLAMP
90464-48800-00
Unavailable
13
CLAMP
90464-48800-00
Unavailable
14
CLAMP
90464-48800-00
Unavailable
15
CLAMP
90464-20005-00
Unavailable
16
CLAMP
5UG-F481H-00-00
Unavailable
17
GROMMET
90480-25856-00
Unavailable
18
CLAMP(JN6)
90464-40825-00
$3.05
19
CLAMP
90464-12830-00
Unavailable
20
CLAMP
90464-20005-00
Unavailable
21
CLAMP
90464-12830-00
Unavailable
22
CLAMP
90464-20005-00
Unavailable
23
SWITCH, LAMP
5UG-H2526-00-00
Unavailable
24
SWITCH, HANDLE 1
5UG-83976-23-00
Unavailable
25
SCREW(3YF)
90149-05299-00
Unavailable
26
WASHER, PLATE
90201-05042-00
Unavailable
27
NUT, NYLON
95707-05300-00
Unavailable
28
LEAN ANGLE SENSOR
3B4-82576-00-00
Unavailable
29
BOLT, SPECIAL
JW1-F3394-00-00
Unavailable
30
CLAMP
90464-12830-00
Unavailable
31
CLAMP
90464-12012-00
Unavailable
32
PILOT LIGHT ASSY
5B4-H3530-00-00
Unavailable
