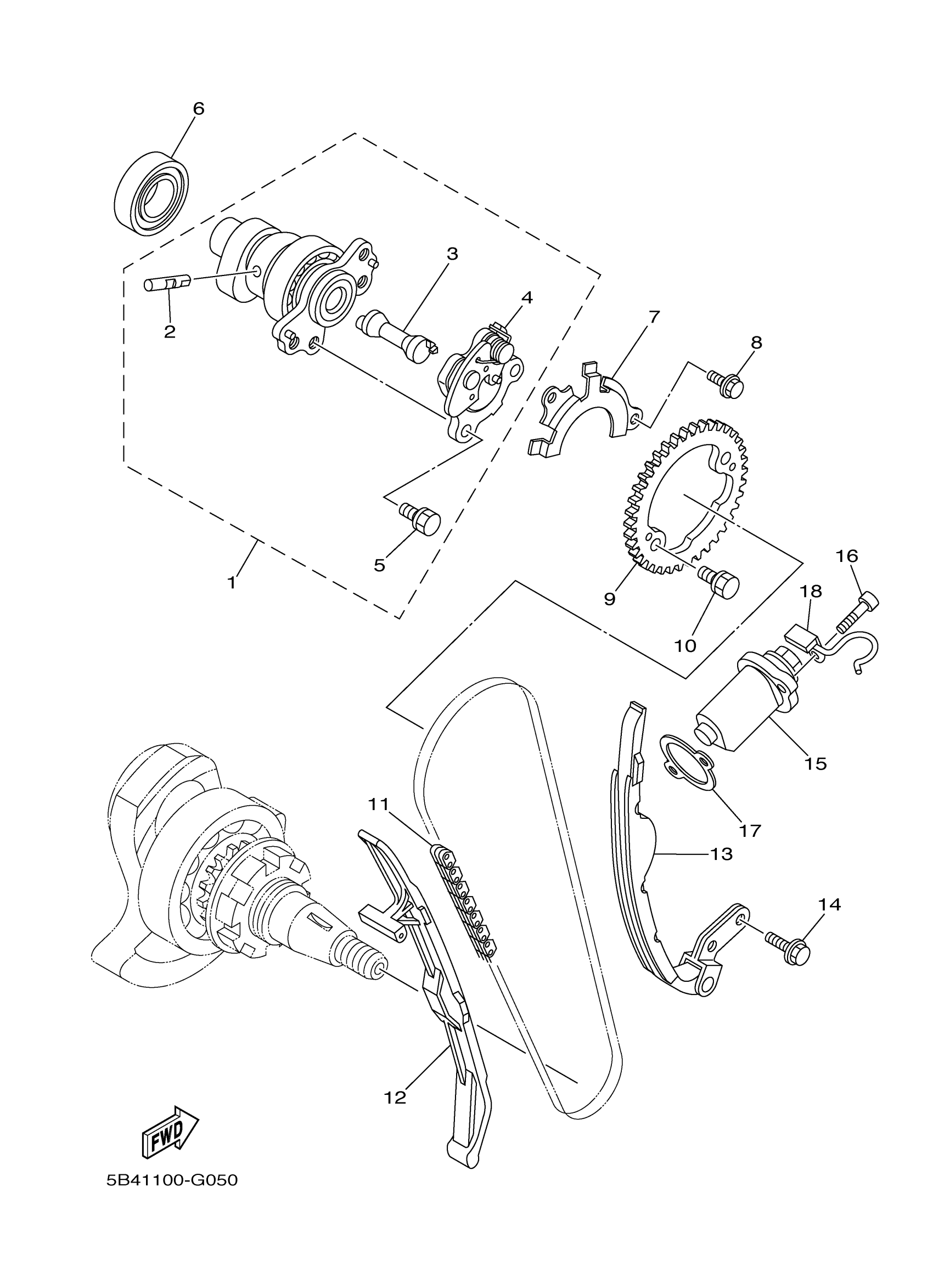

Yamaha YXR7FHY (RHINO 700 FI HUNTER) 5B4T 2009 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5B4-12170-00-00

Unavailable

2

PIN, DECOMPRESSION LEVER

5VK-12284-00-00

$19.18

3

LEVER, DECOMPRESSION SPRING

1S3-12290-00-00

$53.05

4

DECOMPRESSION ASSY

1S3-12280-01-00

$93.01

5

BOLT, FLANGE

90105-07004-00

$5.00

6

BEARING

93306-07209-00

$36.86

7

PLATE

5VK-1111F-00-00

$13.06

8

BOLT, FLANGE

95022-06012-00

$3.00

9

SPROCKET, CAM CHAIN

1S3-12176-00-00

$64.14

10

BOLT, FLANGE

90105-07004-00

$5.00

11

CHAIN

94591-57126-00

$34.05

12

GUIDE, STOPPER 1

3B4-12231-01-00

$26.37

13

GUIDE, STOPPER 2

3B4-12241-01-00

$50.22

14

BOLT, FLANGE

95022-06020-00

$3.32

15

TENSIONER ASSY, CAM CHAIN

3TB-12210-00-00

$121.96

16

BOLT,SOCKET

91317-06025-00

Unavailable

17

GASKET, TENSIONER CASE

4DW-12213-00-00

Unavailable

18

HOLDER

5B4-13898-00-00

Unavailable
