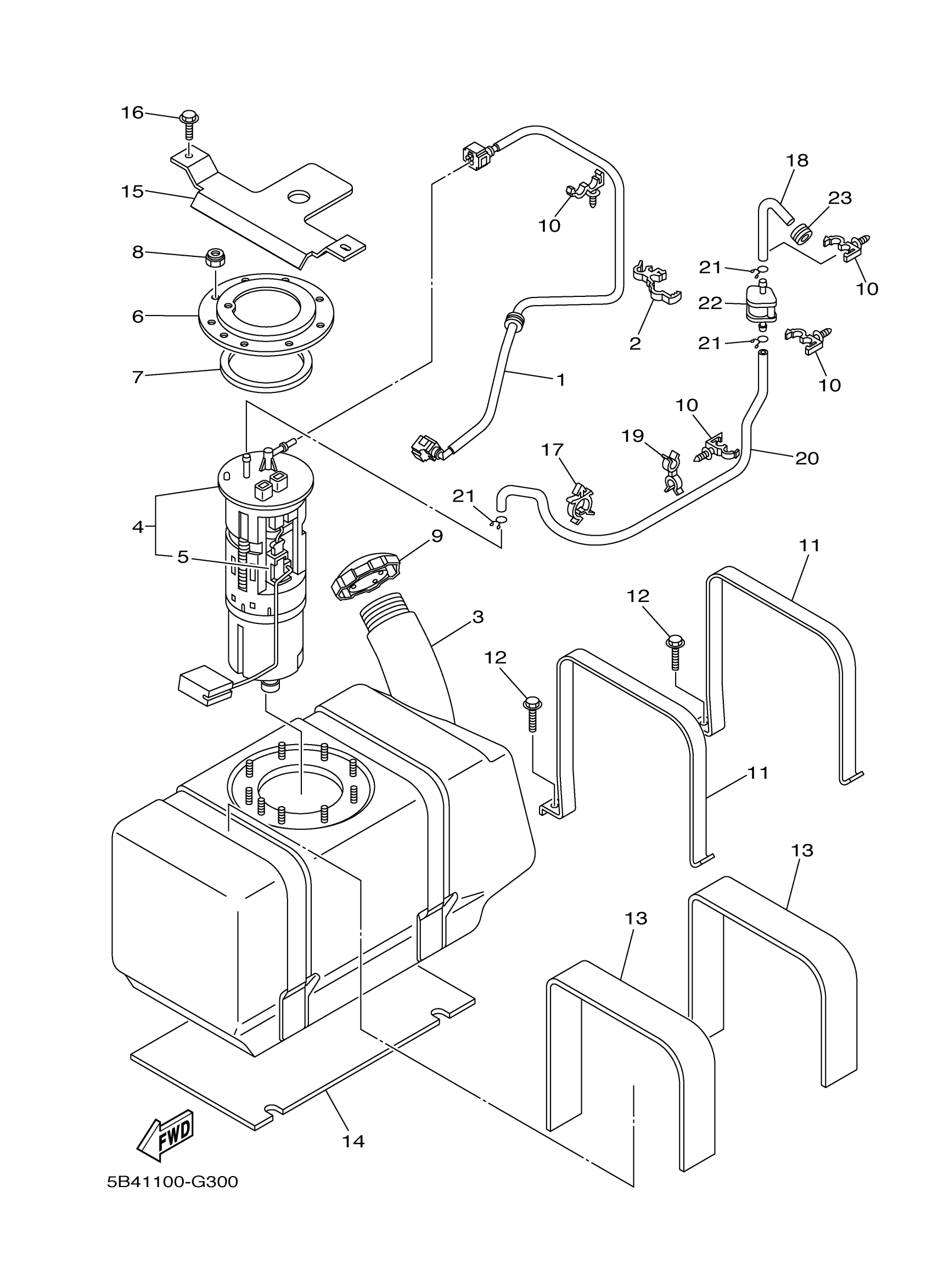

Yamaha YXR7FHD (700 HUNTER 1RBJ) 1RBJ 2013 FUEL TANK Diagram

#

Description
Price

1

PIPE, FUEL 1

5B4-13971-00-00

$123.65

2

CLAMP

90464-12012-00

$3.00

3

FUEL TANK

5B4-F4110-00-00

Unavailable

4

FUEL PUMP COMP.

5B4-13907-04-00

Unavailable

5

SENDER ASSY

5B4-85701-00-00

$148.29

6

RING

5B4-U7773-00-00

Unavailable

7

PACKING, SEAL

F1B-67747-00-00

$17.81

8

NUT, SELF-LOCKING

95617-06100-00

$2.32

9

CAP ASSY

BVG-24610-00-00

$26.60

10

CLAMP

90464-12830-00

$1.02

11

STAY, FUEL TANK 1

5B4-F4157-00-00

$28.83

12

BOLT, FLANGE

90105-08879-00

$3.68

13

DAMPER, PLATE 1

5UG-F414H-00-00

$16.62

14

DAMPER, PLATE 2

5UG-F414J-00-00

Unavailable

15

DAMPER, SIDE COVER

5B4-F4145-00-00

Unavailable

16

BOLT, FLANGE

90105-08867-00

$1.49

17

CLAMP

90464-25826-00

$2.08

18

PIPE 2

5B4-F4312-00-00

Unavailable

19

CLAMP(2YK)

90464-13103-00

$3.82

20

PIPE 4

5B4-F4314-00-00

$14.75

21

CLIP

90467-100A1-00

$6.38

22

PIPE JOINT ASSY

3B4-24380-11-00

$41.29

23

GROMMET (1E6)

90480-15058-00

$6.17
