Description

Price

1

PIPE 1

5B4-12481-00-00

$45.99

2

BOLT,SOCKET

91317-06012-00

$8.49

3

O-RING

93210-21190-00

$7.49

4

HOSE 2

5B4-12577-00-00

Unavailable

5

HOSE CLAMP ASSY

90450-32015-00

$17.99

6

JOINT 1

5KM-12469-00-00

$56.99

7

BOLT,SOCKET HEAD

91314-06020-00

$1.49

8

O-RING

93210-33006-00

$4.72

9

IMPELLER SHAFT ASSY

3B4-12450-00-00

$53.99

10

COVER, HOUSING

5B4-12422-00-00

$80.99

11

BOLT, FLANGE

95022-06030-00

$3.72

12

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

13

PIPE, DRAIN

5D3-1243K-00-00

$9.99

14

OIL SEAL (J10)

93101-10090-00

$8.49

15

SEAL, MECHANICAL

11H-12438-10-00

$62.99

16

CIRCLIP(10W)

99009-10400-00

Unavailable

17

GASKET, HOUSING COVER 2

3B4-12428-00-00

Unavailable

18

BOLT, FLANGE

95022-06010-00

Unavailable

19

GASKET 256113960000

90430-06014-00

Unavailable

20

HOSE (L1050)

90445-072G8-00

Unavailable

21

CLIP(42X)

90467-07093-00

Unavailable

22

PIN,DOWEL (603)

93604-10011-00

Unavailable

23

BOLT, FLANGE

95022-06050-00

Unavailable

24

BOLT, FLANGE

95022-06050-00

Unavailable

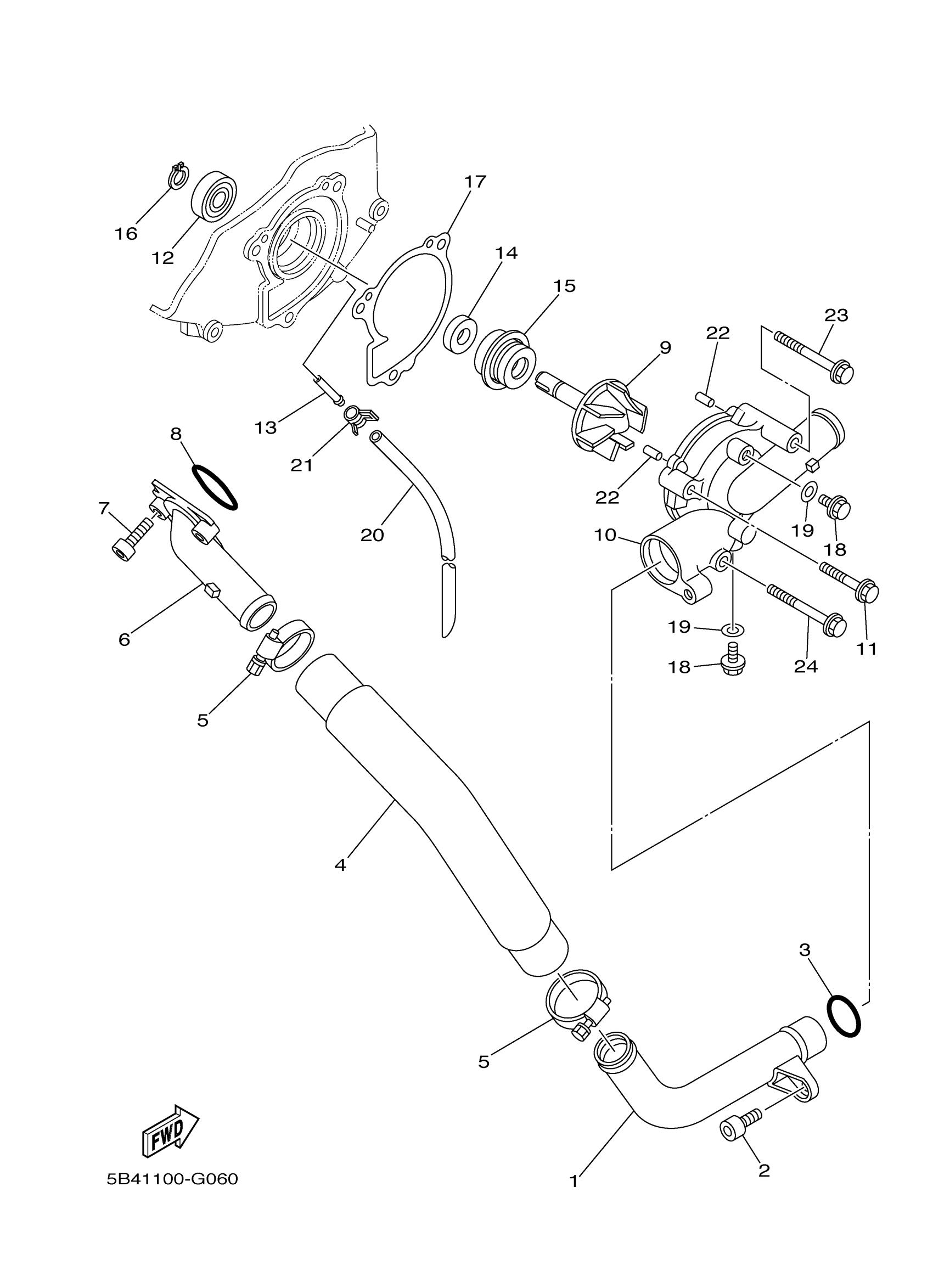

Yamaha YXR7FHB (RHINO 700 HUNTER EDITION) 1RB6 2012 WATER PUMP Diagram

PIPE 1

BOLT,SOCKET

O-RING

HOSE 2

HOSE CLAMP ASSY

JOINT 1

BOLT,SOCKET HEAD

O-RING

IMPELLER SHAFT ASSY

COVER, HOUSING

BOLT, FLANGE

BRG,R-B 6000 26MM 19G KY

PIPE, DRAIN

OIL SEAL (J10)

SEAL, MECHANICAL

CIRCLIP(10W)

GASKET, HOUSING COVER 2

BOLT, FLANGE

GASKET 256113960000

HOSE (L1050)

CLIP(42X)

PIN,DOWEL (603)

BOLT, FLANGE

BOLT, FLANGE
