Description

Price

1

SUPPORT, ROOF 3

1RB-K831A-00-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-10803-00

Unavailable

3

NUT, SELF-LOCKING

90185-10011-00

$5.60

4

BOLT

5B4-K7519-00-00

Unavailable

5

NUT, SPECIAL

5UG-K7573-00-00

$8.99

6

WASHER 2

5UG-K7526-00-00

$5.49

7

SUPPORT, ROOF 4

1RB-K831E-00-00

Unavailable

8

BOLT,HEX. SOCKET BUTTON

90111-10803-00

Unavailable

9

NUT, SELF-LOCKING

90185-10011-00

$5.60

10

BOLT

5B4-K7519-00-00

Unavailable

11

NUT, SPECIAL

5UG-K7573-00-00

$8.99

12

WASHER 2

5UG-K7526-00-00

$5.49

13

MEMBER, ROOF FRAME

1RB-K8392-00-00

Unavailable

14

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

15

MEMBER, CROSS ROOF

1RB-K8336-00-00

Unavailable

16

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

17

ROOF SUPPORT ASSY

1RB-K830A-00-00

Unavailable

18

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

19

BOLT

5B4-K7519-00-00

Unavailable

20

NUT, SPECIAL

5UG-K7573-00-00

$8.99

21

ROOF SUPPORT ASSY

1RB-K830B-00-00

Unavailable

22

BOLT, FLANGE

95812-10016-00

Unavailable

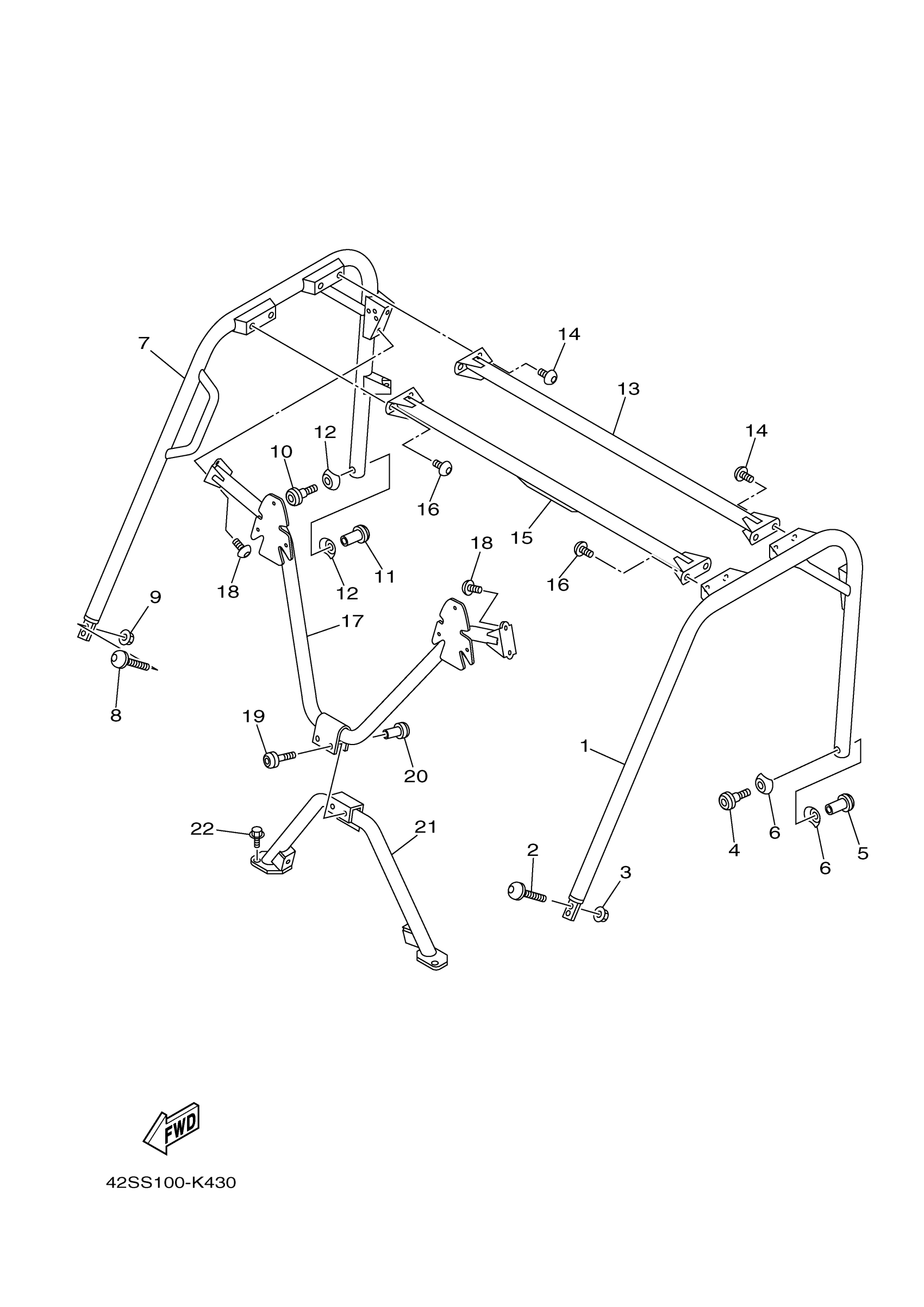

Yamaha YXR7FHB (RHINO 700 HUNTER EDITION) 1RB6 2012 GUARD 2 Diagram

SUPPORT, ROOF 3

BOLT,HEX. SOCKET BUTTON

NUT, SELF-LOCKING

BOLT

NUT, SPECIAL

WASHER 2

SUPPORT, ROOF 4

BOLT,HEX. SOCKET BUTTON

NUT, SELF-LOCKING

BOLT

NUT, SPECIAL

WASHER 2

MEMBER, ROOF FRAME

BOLT,HEX. SOCKET B

MEMBER, CROSS ROOF

BOLT,HEX. SOCKET B

ROOF SUPPORT ASSY

BOLT,HEX. SOCKET B

BOLT

NUT, SPECIAL

ROOF SUPPORT ASSY

BOLT, FLANGE
