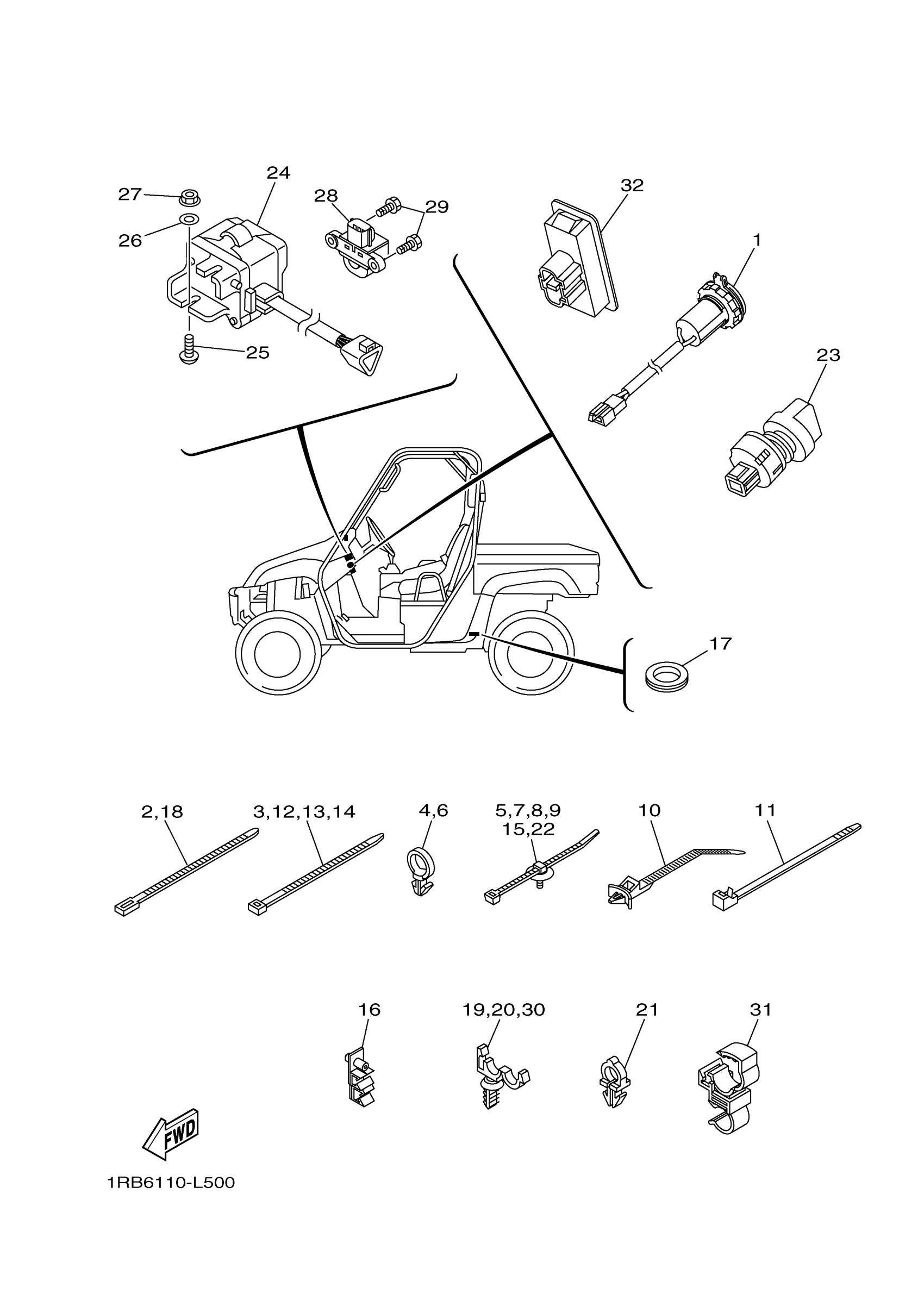

Yamaha YXR7FHB (RHINO 700 HUNTER EDITION) 1RB6 2012 ELECTRICAL 2 Diagram

#

Description
Price

1

TERMINAL COMP.

1HP-H254B-10-00

$18.99

2

CLAMP(JN6)

90464-40825-00

$3.05

3

CLAMP

90464-48800-00

Unavailable

4

CLAMP

90464-19815-00

Unavailable

5

CLAMP

5B4-F1338-00-00

$3.33

6

CLAMP

90464-19815-00

Unavailable

7

CLAMP

5B4-F1338-00-00

$3.33

8

CLAMP

5B4-F1338-00-00

$3.33

9

CLAMP

5B4-F1338-00-00

$3.33

10

CLAMP

90464-38800-00

$5.60

11

CLAMP

90464-51800-00

$14.99

12

CLAMP

90464-48800-00

Unavailable

13

CLAMP

90464-48800-00

Unavailable

14

CLAMP

90464-48800-00

Unavailable

15

CLAMP

5B4-F1338-00-00

$3.33

16

CLAMP

5UG-F481H-00-00

Unavailable

17

GROMMET

90480-25856-00

Unavailable

18

CLAMP(JN6)

90464-40825-00

$3.05

19

CLAMP

90464-12830-00

Unavailable

20

CLAMP

90464-12830-00

Unavailable

21

CLAMP

90464-12830-00

Unavailable

22

CLAMP

5B4-F1338-00-00

$3.33

23

SWITCH, LAMP

5UG-H2526-00-00

Unavailable

24

SWITCH, HANDLE 1

1RB-83976-02-00

Unavailable

25

SCREW(3YF)

90149-05299-00

Unavailable

26

WASHER, PLATE

90201-05039-00

Unavailable

27

NUT, NYLON

95707-05300-00

Unavailable

28

LEAN ANGLE SENSOR

3B4-82576-00-00

Unavailable

29

BOLT, SPECIAL

JW1-F3394-00-00

Unavailable

30

CLAMP

90464-12830-00

Unavailable

31

CLAMP

90464-12012-00

Unavailable

32

PILOT LIGHT ASSY

5B4-H3530-00-00

Unavailable
