RADIATOR HOSE

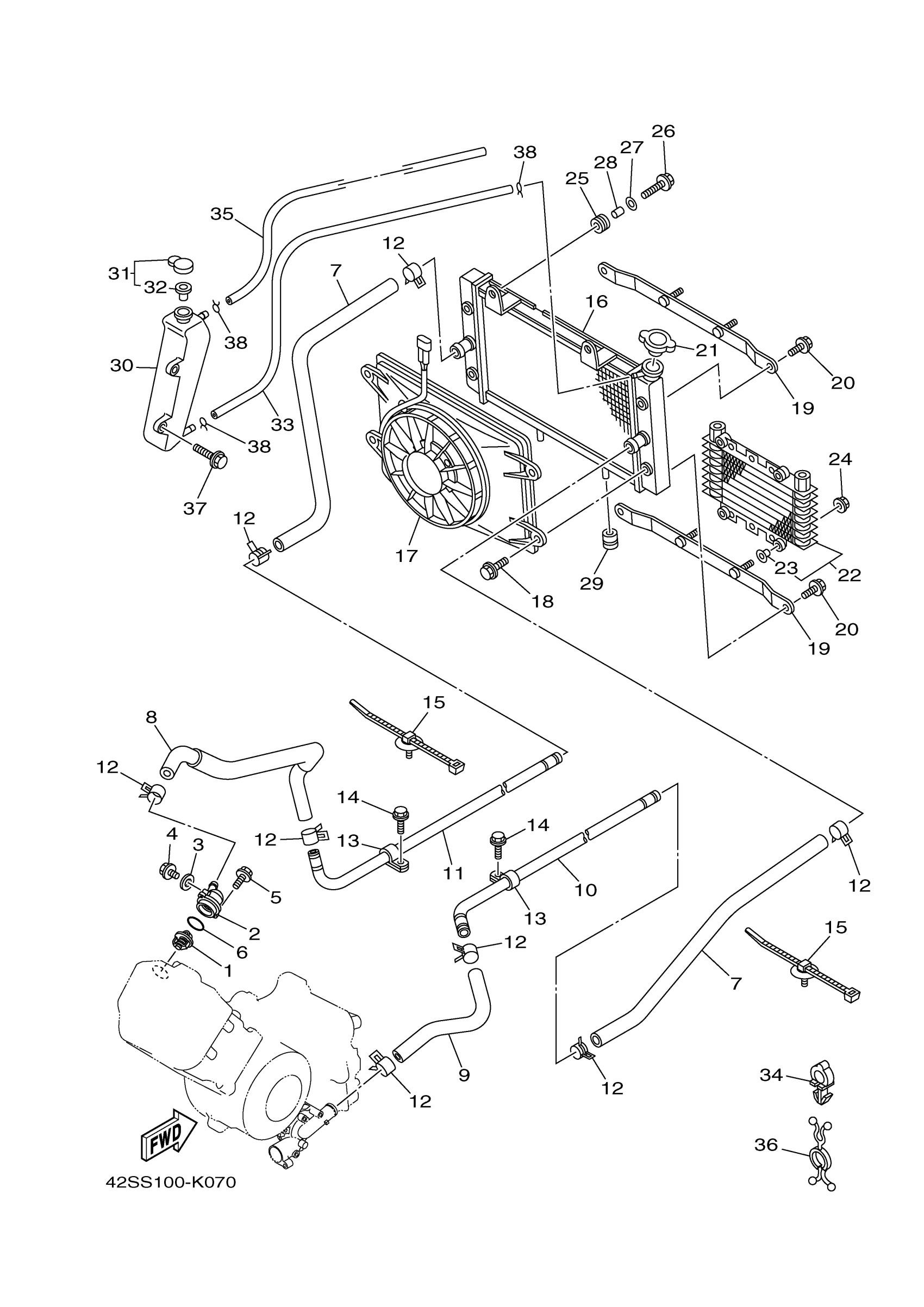

Yamaha YXR7FHA (RHINO 700 HUNTER) 42SM 2011 RADIATOR HOSE Diagram
#
1
THERMOSTAT
3B4-12411-01-00
Unavailable
2
COVER, THERMOSTAT
5B4-12413-00-00
$46.99
3
GASKET 256113960000
90430-06014-00
Unavailable
4
BOLT, FLANGE
95022-06010-00
$5.60
5
BOLT, FLANGE
95022-06020-00
$3.62
6
O-RING (132)
93210-41042-00
$7.49
7
HOSE 1
5UG-E2576-00-00
$36.99
8
HOSE 2
5B4-E2577-00-00
$34.99
9
HOSE 4
5B4-E2579-00-00
$12.99
10
PIPE, WATER
5B4-E2564-00-00
Unavailable
11
PIPE 3
5B4-E2483-00-00
Unavailable
12
CLIP
90467-26189-00
$7.49
13
CLAMP
90461-12800-00
$2.28
14
BOLT, FLANGE
90105-06833-00
$2.28
15
CLAMP
5B4-F1338-00-00
$3.33
16
RADIATOR COMP
5B4-E2461-00-00
Unavailable
17
BLOWER ASSY
5B4-E2405-00-00
Unavailable
18
BOLT, BLOWER HOLDING
5B4-E2675-00-00
Unavailable
19
BRACKET 1
5B4-E244E-00-00
Unavailable
20
BOLT
5B4-E2623-00-00
Unavailable
21
CAP, RADIATOR
5B4-E2462-00-00
Unavailable
22
OIL COOLER ASSY
5B4-E3470-00-00
Unavailable
23
. COLLAR 1
5B4-E2662-00-00
Unavailable
24
NUT, FLANGE
95702-06500-00
Unavailable
25
GROMMET (29L)
90480-15363-00
Unavailable
26
BOLT, FLANGE
90105-06833-00
$2.28
27
WASHER, PLATE
90201-06033-00
Unavailable
28
COLLAR
90387-06131-00
Unavailable
29
GROMMET
90480-17800-00
Unavailable
30
TANK, RECOVERY
5B4-F1871-01-00
Unavailable
31
CAP
1AA-21815-00-00
Unavailable
32
GASKET
1AA-21874-00-00
Unavailable
33
HOSE 1
5B4-F247A-00-00
Unavailable
34
CLAMP
90464-12830-00
Unavailable
35
HOSE 2
5B4-F247B-00-00
Unavailable
36
CLAMP(3XV)
90464-29179-00
Unavailable
37
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
38
CLIP 101235600
90467-08003-00
Unavailable
