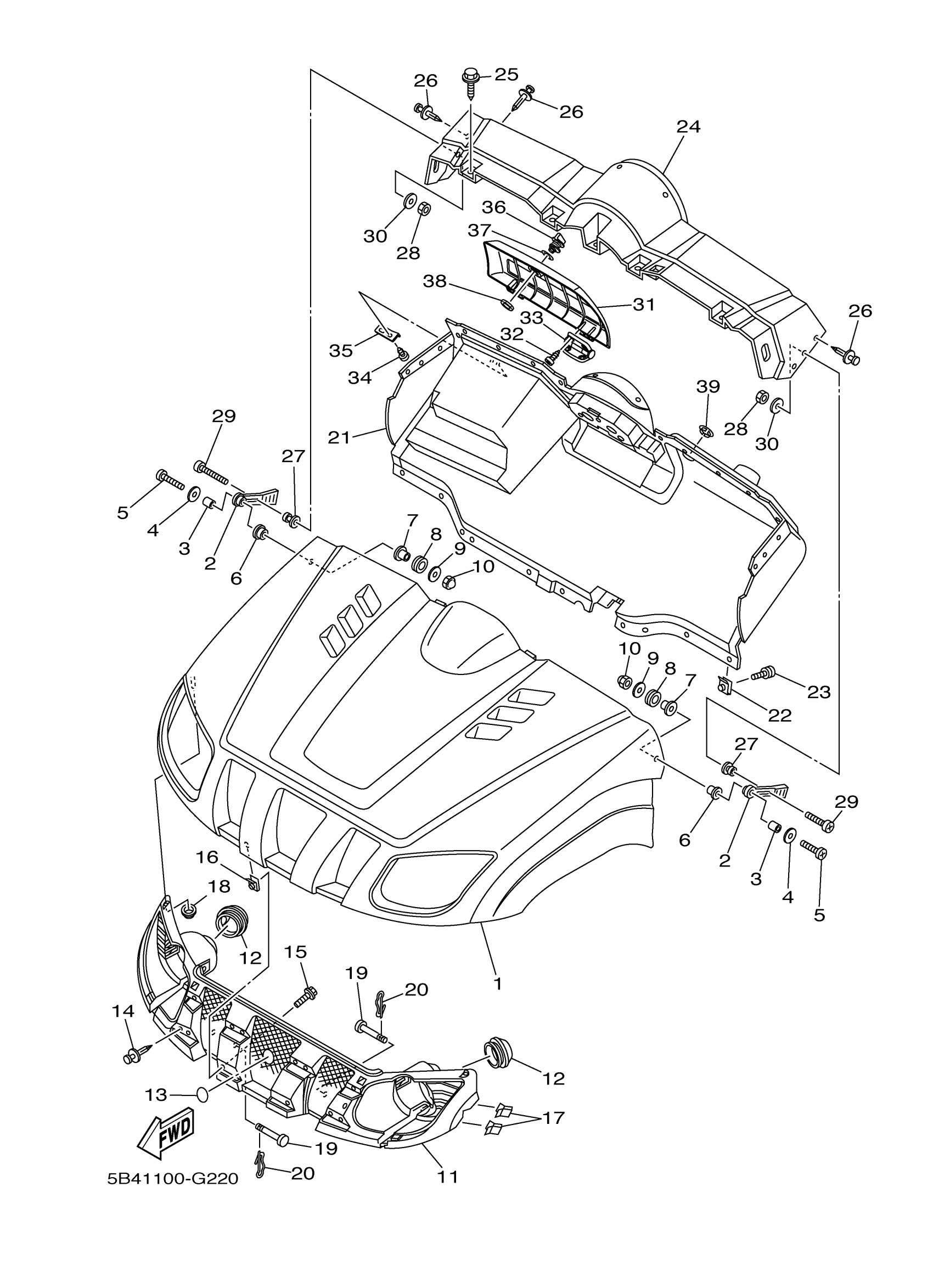

Yamaha YXR7FHA (RHINO 700 HUNTER) 42SM 2011 FRONT FENDER Diagram
#
1
FRONT FENDER COMP.
5UG-F1510-G0-00
Unavailable
2
BODY, LATCH 1
8V0-77171-00-00
$21.99
3
COLLAR (420)
90387-06241-00
$8.49
4
WASHER, PLATE
90201-06557-00
$3.30
5
SCREW, BINDING
98907-06035-00
$9.49
6
C0LLAR
90387-062M9-00
$9.49
7
COLLAR (6G1)
90387-06M52-00
Unavailable
8
GROMMET(2GH)
90480-12475-00
$8.49
9
WASHER, PLATE
90201-06557-00
$3.30
10
NUT (J17)
95380-06800-00
$8.49
11
GRILL, FRONT
5UG-F8309-11-00
Unavailable
12
CAP
5GH-28349-00-00
$10.99
13
TUNING FORK MARK
5FU-F175B-01-00
$14.99
14
RIVET
90269-06804-00
$2.13
15
BOLT, WITH WASHER
90119-05023-00
$8.49
16
NUT, SPRING
90183-050A0-00
Unavailable
17
CLIP
5UG-F3447-00-00
Unavailable
18
NUT, SPRING
90183-08800-00
Unavailable
19
PIN,CLEVIS
90240-13802-00
Unavailable
20
CLIP(3YF)
90468-16191-00
Unavailable
21
PANEL, FRONT
5UG-F3391-03-00
Unavailable
22
NUT, SPRING
90183-051A1-00
Unavailable
23
BOLT, WITH WASHER
90119-05023-00
$8.49
24
PANEL, OUTER 2
5UG-F3312-M0-00
Unavailable
25
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
26
RIVET
90269-06800-00
Unavailable
27
. HOLDER, LATCH
8M6-77175-00-00
Unavailable
28
NUT, NYLON
95707-06300-00
Unavailable
29
SCREW, BINDING
98907-06035-00
$9.49
30
WASHER, PLATE
90201-06097-00
Unavailable
31
LID, GLOVE BOX
5UG-K7736-00-00
Unavailable
32
SCREW, TAPPING
90164-04800-00
Unavailable
33
HINGE
5UG-F1797-00-00
Unavailable
34
SCREW, TAPPING (GLOVE BOX)
90164-05800-00
Unavailable
35
BRACKET,COVER
5UG-F139T-10-00
Unavailable
36
LOCK ASSY
5UG-F16A0-00-00
Unavailable
37
GASKET
5UG-F3139-00-00
Unavailable
38
NUT
5UG-F1494-00-00
Unavailable
39
PLUG
5B4-F2417-00-00
Unavailable
