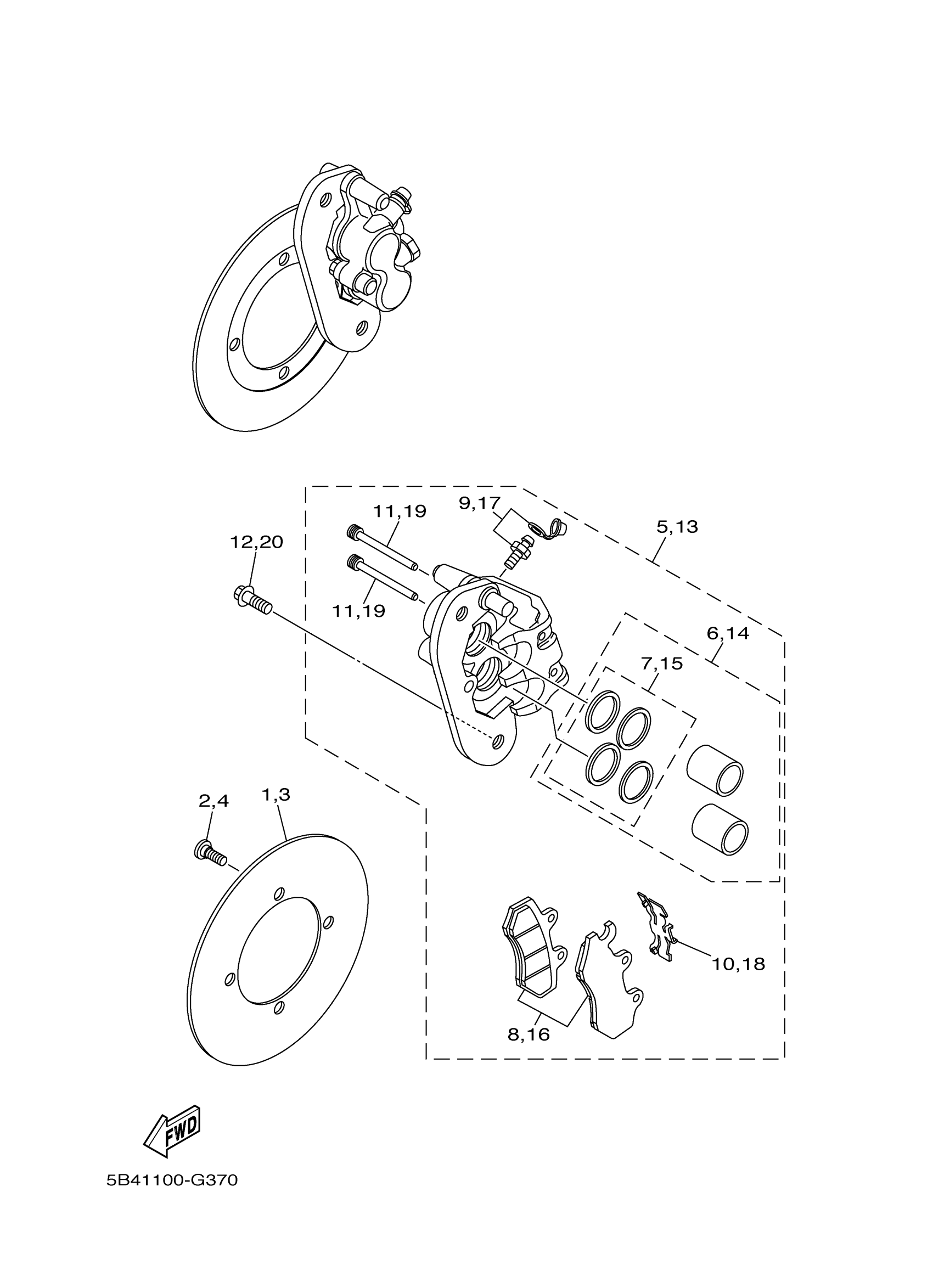

Yamaha YXR7FDUY (RHINO 700 FI DUCKS UNLIMITED) 5B4M 2009 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (RIGHT

5B4-F5831-00-00

$76.99

2

BOLT

90109-08087-00

$8.49

3

DISC, BRAKE (RIGHT

5B4-F5831-00-00

$76.99

4

BOLT

90109-08087-00

$8.49

5

CALIPER ASSY, REAR 1

5B4-2580V-00-00

$369.99

6

PISTON ASSY, CALIPER

5B4-W0057-00-00

Unavailable

7

CALIPER SEAL KIT

3LC-W0047-50-00

$58.99

8

BRAKE PAD KIT

5B4-W0045-00-00

$47.99

9

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

10

SPRING, PAD

3LD-25934-01-00

$30.99

11

PIN, PAD

3FV-25924-00-00

$23.99

12

BOLT, FLANGE

90105-10265-00

$5.60

13

CALIPER ASSY, REAR 2

5B4-2580W-00-00

$369.99

14

PISTON ASSY, CALIPER

5B4-W0057-00-00

Unavailable

15

CALIPER SEAL KIT

3LC-W0047-50-00

$58.99

16

BRAKE PAD KIT

5B4-W0045-10-00

Unavailable

17

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

18

SPRING, PAD

3LD-25934-01-00

$30.99

19

PIN, PAD

3FV-25924-00-00

$23.99

20

BOLT, FLANGE

90105-10265-00

$5.60
