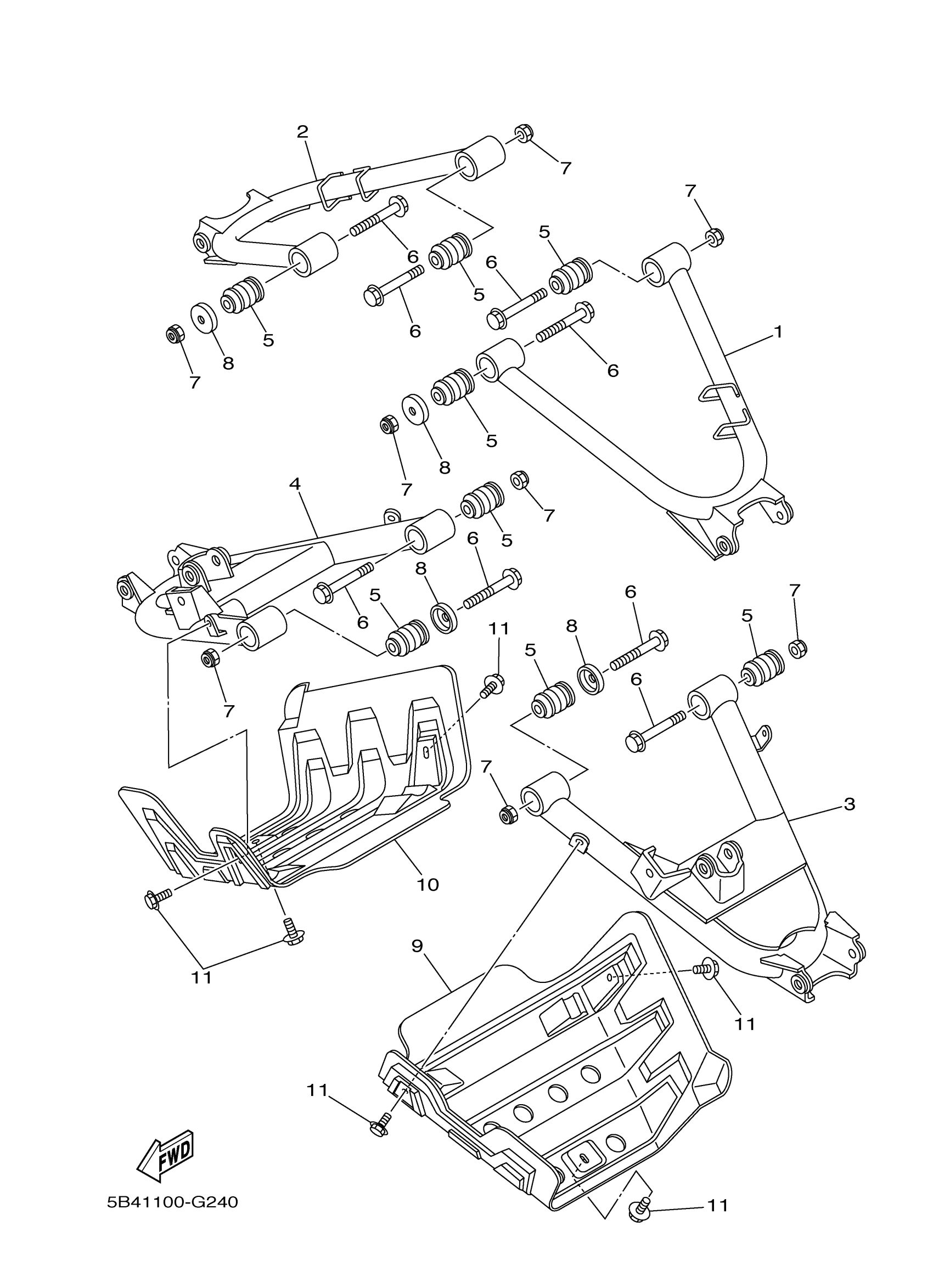

Yamaha YXR7FDUY (RHINO 700 FI DUCKS UNLIMITED) 5B4M 2009 REAR ARM Diagram

#

Description
Price

1

ARM, REAR 1

5B4-F2171-00-00

$53.68

2

ARM, REAR 2

5B4-F2172-00-00

$64.44

3

ARM 1

5B4-F217M-00-00

Unavailable

4

ARM 2

5B4-F217N-00-00

Unavailable

5

BUSH

5KM-23526-00-00

$16.25

6

BOLT, FLANGE

90105-10267-00

$7.38

7

NUT, SELF-LOCKING

90185-10012-00

$2.94

8

WASHER

5KM-22149-10-00

$6.29

9

COVER, THRUST 1

5B4-F2128-00-00

$25.79

10

COVER, THRUST 2

5B4-F2129-00-00

$26.80

11

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.49
