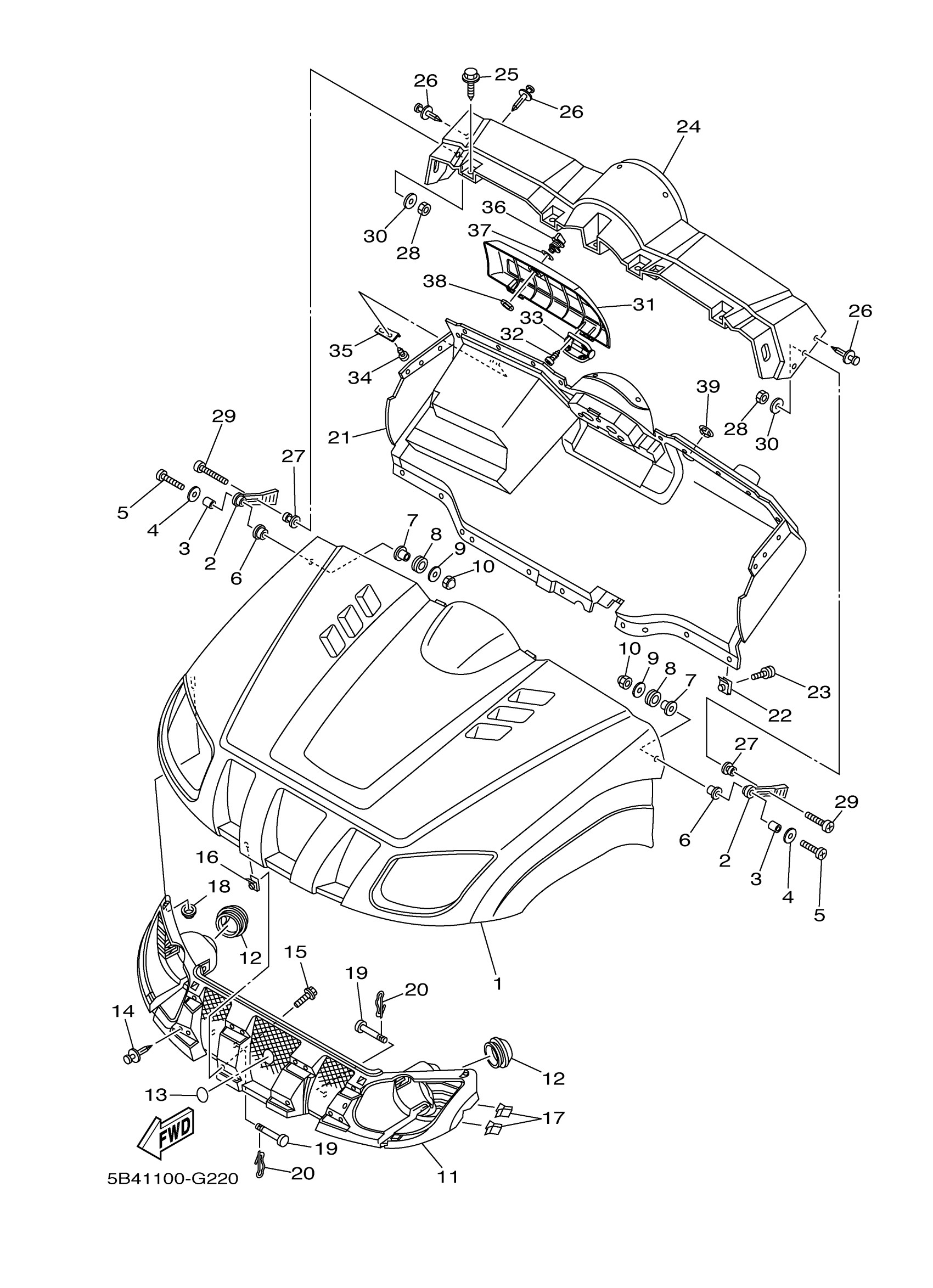

Yamaha YXR7FDUY (RHINO 700 FI DUCKS UNLIMITED) 5B4M 2009 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

5UG-F1510-K0-00

Unavailable

2

BODY, LATCH 1

8V0-77171-00-00

$17.51

3

COLLAR (420)

90387-06241-00

$5.88

4

WASHER, PLATE

90201-06557-00

$2.63

5

SCREW, BINDING

98907-06035-00

$7.13

6

C0LLAR

90387-062M9-00

$6.30

7

COLLAR (6G1)

90387-06M52-00

$6.67

8

GROMMET(2GH)

90480-12475-00

$6.35

9

WASHER, PLATE

90201-06557-00

$2.63

10

NUT (J17)

95380-06800-00

$6.41

11

GRILL, FRONT

5UG-F8309-11-00

Unavailable

12

CAP

5GH-28349-00-00

$7.84

13

TUNING FORK MARK

5FU-F175B-01-00

$13.64

14

RIVET

90269-06804-00

$1.49

15

BOLT, WITH WASHER

90119-05023-00

$6.35

16

NUT, SPRING

90183-050A0-00

Unavailable

17

CLIP

5UG-F3447-00-00

$1.78

18

NUT, SPRING

90183-08800-00

Unavailable

19

PIN,CLEVIS

90240-13802-00

Unavailable

20

CLIP(3YF)

90468-16191-00

Unavailable

21

PANEL, FRONT

5UG-F3391-03-00

Unavailable

22

NUT, SPRING

90183-051A1-00

Unavailable

23

BOLT, WITH WASHER

90119-05023-00

$6.35

24

PANEL, OUTER 2

5UG-F3312-M0-00

Unavailable

25

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.49

26

RIVET

90269-06800-00

Unavailable

27

. HOLDER, LATCH

8M6-77175-00-00

$12.12

28

NUT, NYLON

95707-06300-00

Unavailable

29

SCREW, BINDING

98907-06035-00

$7.13

30

WASHER, PLATE

90201-06097-00

Unavailable

31

LID, GLOVE BOX

5UG-K7736-00-00

$30.32

32

SCREW, TAPPING

90164-04800-00

$1.49

33

HINGE

5UG-F1797-00-00

Unavailable

34

SCREW, TAPPING (GLOVE BOX)

90164-05800-00

Unavailable

35

BRACKET,COVER

5UG-F139T-10-00

$4.82

36

LOCK ASSY

5UG-F16A0-00-00

$38.95

37

GASKET

5UG-F3139-00-00

$1.65

38

NUT

5UG-F1494-00-00

$3.83

39

PLUG

5B4-F2417-00-00

$4.02
