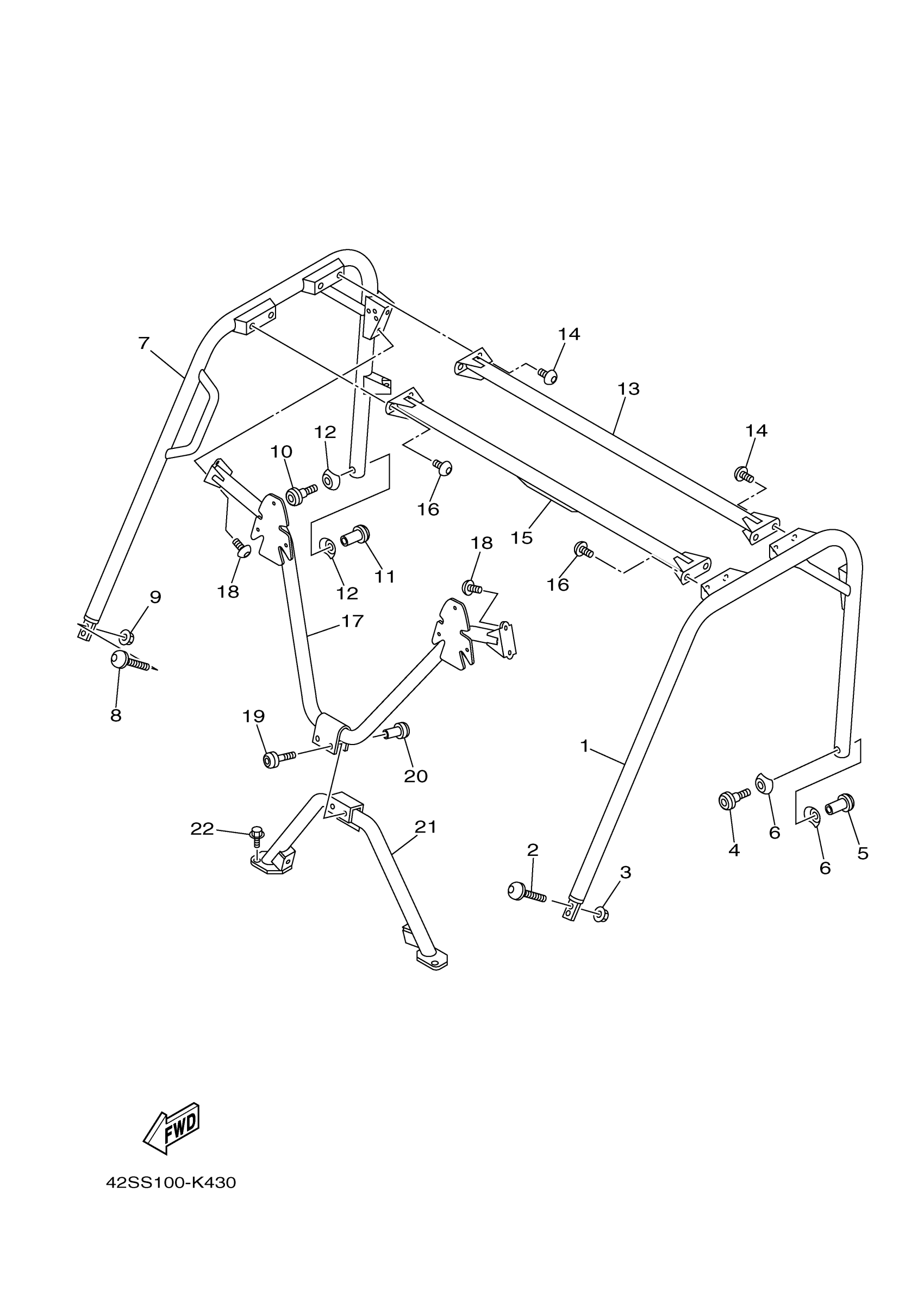

Yamaha YXR7FBL (RHINO 700) 1RBC1 2012 GUARD 2 Diagram
#
Description
Price
1
SUPPORT, ROOF 3
1RB-K831A-00-00
Unavailable
2
BOLT,HEX. SOCKET BUTTON
90111-10803-00
Unavailable
4
BOLT
5B4-K7519-00-00
Unavailable
7
SUPPORT, ROOF 4
1RB-K831E-00-00
Unavailable
8
BOLT,HEX. SOCKET BUTTON
90111-10803-00
Unavailable
10
BOLT
5B4-K7519-00-00
Unavailable
13
MEMBER, ROOF FRAME
1RB-K8392-00-00
Unavailable
15
MEMBER, CROSS ROOF
1RB-K8336-00-00
Unavailable
17
ROOF SUPPORT ASSY
1RB-K830A-00-00
Unavailable
19
BOLT
5B4-K7519-00-00
Unavailable
21
ROOF SUPPORT ASSY
1RB-K830B-00-00
Unavailable
22
BOLT, FLANGE
95812-10016-00
Unavailable
