Description

Price

1

DISC, BRAKE (LEFT)

5B4-F582T-00-00

$64.99

2

BOLT

90109-08087-00

$8.49

3

DISC, BRAKE (LEFT)

5B4-F582T-00-00

$64.99

4

BOLT

90109-08087-00

$8.49

5

BOLT, FLANGE

90105-10265-00

$5.60

6

CALIPER ASSY (LEFT)

5B4-2580T-01-00

$443.99

7

PISTON ASSY, CALIPER

3LD-25802-00-00

$53.99

8

CALIPER SEAL KIT

3JD-25803-00-00

$21.99

9

BRAKE PAD KIT

5B4-W0045-00-00

$47.99

10

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

11

SPRING, PAD

3LD-25934-01-00

$30.99

12

PIN, PAD

3FV-25924-00-00

$23.99

13

CALIPER ASSY (RIGHT)

5B4-2580U-01-00

$443.99

14

PISTON ASSY, CALIPER

3LD-25802-00-00

$53.99

15

CALIPER SEAL KIT

3JD-25803-00-00

$21.99

16

BRAKE PAD KIT

5B4-W0045-10-00

Unavailable

17

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

18

SPRING, PAD

3LD-25934-01-00

$30.99

19

PIN, PAD

3FV-25924-00-00

$23.99

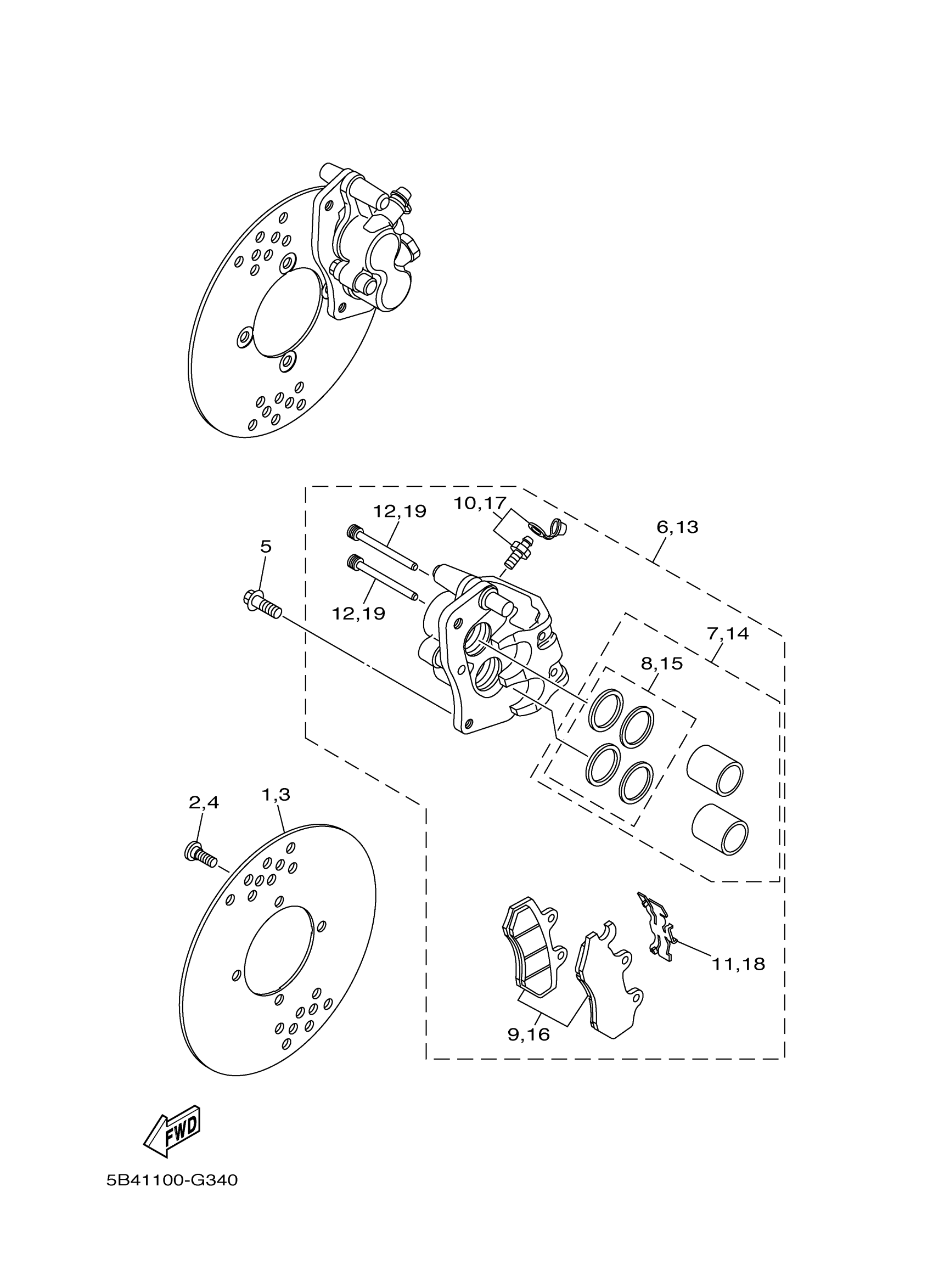

Yamaha YXR7FBL (RHINO 700) 1RBC1 2012 FRONT BRAKE CALIPER Diagram

DISC, BRAKE (LEFT)

BOLT

DISC, BRAKE (LEFT)

BOLT

BOLT, FLANGE

CALIPER ASSY (LEFT)

PISTON ASSY, CALIPER

CALIPER SEAL KIT

BRAKE PAD KIT

BLEED SCREW KIT

SPRING, PAD

PIN, PAD

CALIPER ASSY (RIGHT)

PISTON ASSY, CALIPER

CALIPER SEAL KIT

BRAKE PAD KIT

BLEED SCREW KIT

SPRING, PAD

PIN, PAD
