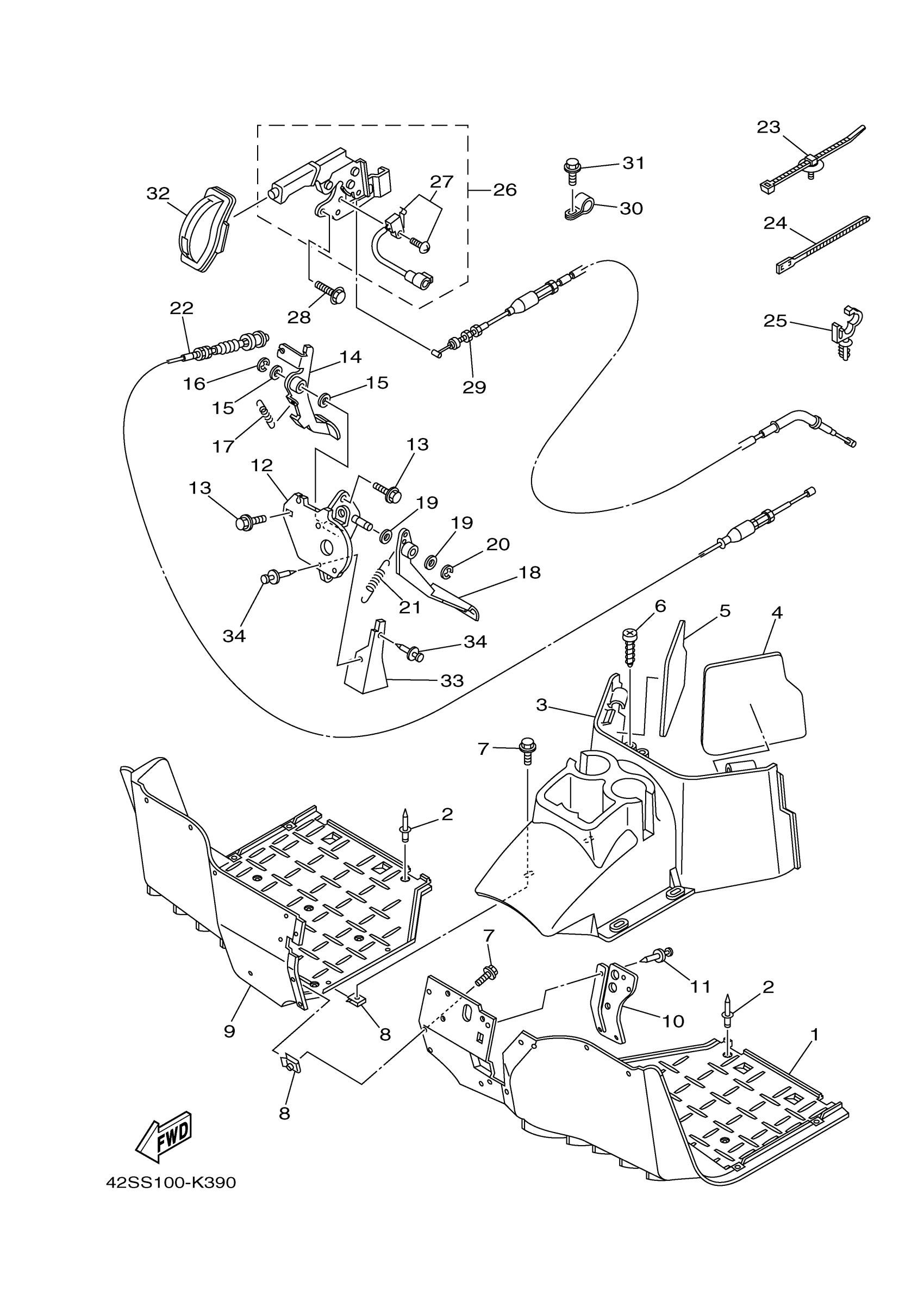

Yamaha YXR7FAR (RHINO 700) 42SK1 2011 STAND FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

5UG-F7411-12-00

Unavailable

2

RIVET, BLIND

90267-48820-00

Unavailable

3

COVER, FOOTREST

5B4-F7413-00-00

Unavailable

4

SEAL 3

5B4-F8238-00-00

Unavailable

5

SEAL 4

5B4-F8268-00-00

Unavailable

6

SCREW, TAPPING

90167-06800-00

$1.71

7

BOLT, WITH WASHER

90119-05023-00

$8.49

8

NUT, SPRING

90183-051A1-00

Unavailable

9

FOOTREST 2

5UG-F7421-12-00

$127.99

10

COVER, DUST

5UG-F7286-00-00

Unavailable

11

RIVET

90269-06800-00

$2.18

12

BRACKET,PEDL SUPRT

5UG-F2548-01-00

Unavailable

13

BOLT, FLANGE

95812-08020-00

$2.80

14

ACCEL PEDAL ASSY

5B4-F7801-00-00

Unavailable

15

WASHER, PLATE

90201-15018-00

$7.49

16

CIRCLIP (122)

93430-12008-00

Unavailable

17

SPRING, TENSION (2X4)

90506-20192-00

Unavailable

18

PEDAL, BRAKE

5UG-F7200-00-00

Unavailable

19

WASHER, PLATE

90201-15018-00

$7.49

20

CIRCLIP (122)

93430-12008-00

Unavailable

21

SPRING, TENSION (2X4)

90506-20192-00

Unavailable

22

CABLE, THROTTLE 1

5B4-26311-00-00

Unavailable

23

CLAMP

5B4-F1338-00-00

Unavailable

24

CLAMP(JN6)

90464-40825-00

Unavailable

25

CLAMP

90464-12830-00

Unavailable

26

PARKING LEVER ASSY

5B4-F5690-00-00

Unavailable

27

. SWITCH COMP

5UG-H251S-00-00

Unavailable

28

BOLT, FLANGE

95812-06014-00

Unavailable

29

WIRE, BRAKE 1

5B4-26341-02-00

Unavailable

30

CLAMP

90461-08802-00

Unavailable

31

BOLT, FLANGE

90105-06831-00

Unavailable

32

COVER, HANDLE LEVE

5B4-F6372-00-00

Unavailable

33

PLATE, SPLASH

5UG-G5158-10-00

Unavailable

34

RIVET

90269-06800-00

$2.18
