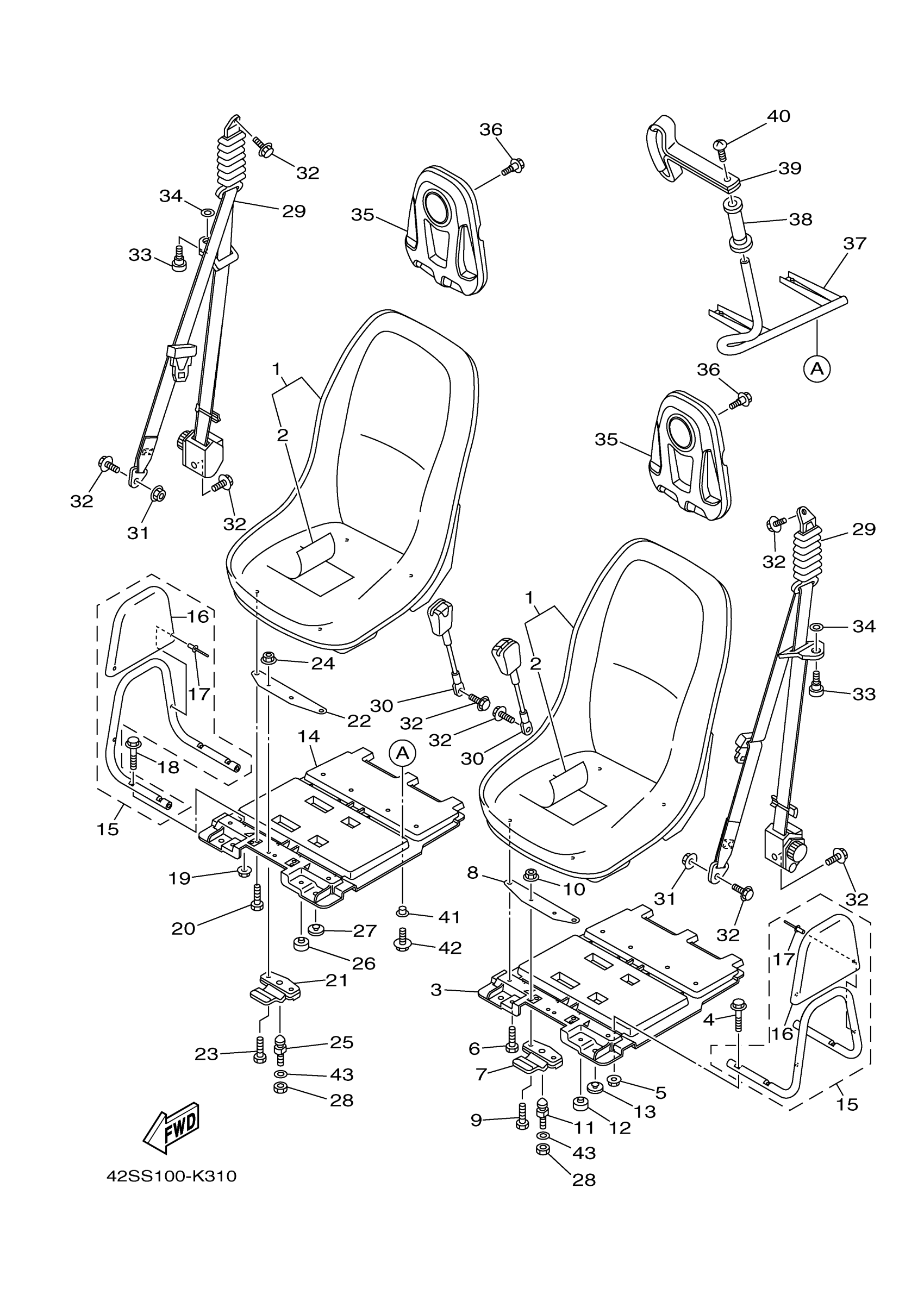

Yamaha YXR7FAR (RHINO 700) 42SK1 2011 SEAT Diagram
#
1
SINGLE SEAT ASSY
5UG-F4710-01-00
Unavailable
2
. SEAT COVER COMP
5UG-F470F-00-00
Unavailable
3
BOTTOM PLATE COMP.
5UG-F470E-01-00
$97.99
4
BOLT, FLANGE
95812-08030-00
$3.81
5
NUT, SELF-LOCKING
95602-08200-00
$3.20
6
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
7
SEAT LOCK ASSY
F1B-U3850-02-00
Unavailable
8
HANDLE, SEAT
5B4-F4761-00-00
Unavailable
9
BOLT, FLANGE
95817-06040-00
$5.60
10
NUT, U FLANGE
95604-06200-00
$8.49
11
PIN
GH1-U3774-00-00
Unavailable
12
DAMPER, SEAT
4XE-F4747-00-00
$30.99
13
PAD, BATTERY
371-82121-00-00
$8.99
14
BOTTOM PLATE COMP.
5UG-F470E-01-00
$97.99
15
ASSIST GRIP ASSY, 2
5B4-F470K-00-00
$72.99
16
. COVER,2
5B4-F475X-00-00
Unavailable
17
. RIVET, BLIND
90267-32806-00
Unavailable
18
BOLT, FLANGE
95812-08030-00
$3.81
19
NUT, SELF-LOCKING
95602-08200-00
$3.20
20
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
21
SEAT LOCK ASSY
F1B-U3850-02-00
Unavailable
22
HANDLE, SEAT
5B4-F4761-00-00
Unavailable
23
BOLT, FLANGE
95817-06040-00
$5.60
24
NUT, U FLANGE
95604-06200-00
$8.49
25
PIN
GH1-U3774-00-00
Unavailable
26
DAMPER, SEAT
4XE-F4747-00-00
$30.99
27
PAD, BATTERY
371-82121-00-00
$8.99
28
NUT, SELF-LOCKING
90185-10012-00
Unavailable
29
FR. SEAT BELT ASSY, 1
1RB-F470L-00-00
Unavailable
30
FR. BELT RECEIVER ASSY
1RB-F470R-00-00
Unavailable
31
NUT, SELF-LOCKING
95602-12200-00
Unavailable
32
BOLT, FLANGE
95812-12020-00
Unavailable
33
BOLT, SPECIAL
16B-F3394-01-00
Unavailable
34
WASHER, PLATE
90201-11801-00
Unavailable
35
HEAD REST (BLACK)
5UG-F472L-50-00
Unavailable
36
BOLT(3KJ)
90109-063F5-00
Unavailable
37
ASSIST, GRIP
5B4-F474A-00-00
Unavailable
38
GRIP
5B4-F6241-00-00
Unavailable
39
HANDLE, SEAT
5B4-F4773-00-00
Unavailable
40
SCREW, BINDING
98907-06020-00
Unavailable
41
COLLAR
90387-06210-00
Unavailable
42
BOLT, FLANGE
90105-06831-00
Unavailable
43
WASHER, PLATE
90201-109U6-00
Unavailable
