Description

Price

1

PIPE, EXHAUST 1

5B4-E4611-00-00

Unavailable

2

GASKET, MUFFLER

3B4-14714-00-00

$29.99

3

SPRING, TENSION

90506-26010-00

$11.49

4

PIPE, EXHAUST 2

5B4-E4621-00-00

Unavailable

5

GASKET, MUFFLER

3B4-14714-00-00

$29.99

6

SPRING, TENSION

90506-26010-00

$11.49

7

MUFFLER ASSY 1

5B4-E4710-00-00

Unavailable

8

. PIPE, OUTLET

5B4-E4752-00-00

Unavailable

9

. GASKET, SILENCER

5B4-E4755-00-00

Unavailable

10

. BOLT, MUFFLER

5B4-E4719-00-00

Unavailable

11

BOLT, FLANGE

95817-08014-00

$5.60

12

DAMPER, MUFFLER

5UG-14737-00-00

$16.49

13

MUFF. STAY SUB-KUM

5B4-F1440-00-00

$34.99

14

DAMPER, FOOTREST 2

5VY-27424-00-00

Unavailable

15

BOLT, FLANGE

95814-08045-00

$4.29

16

WASHER, PLATE

90201-08034-00

Unavailable

17

COLLAR

90387-08039-00

Unavailable

18

NUT,FLANGE(J10)

95702-08500-00

Unavailable

19

GASKET, EXHAUST PIPE

3YF-14613-01-00

Unavailable

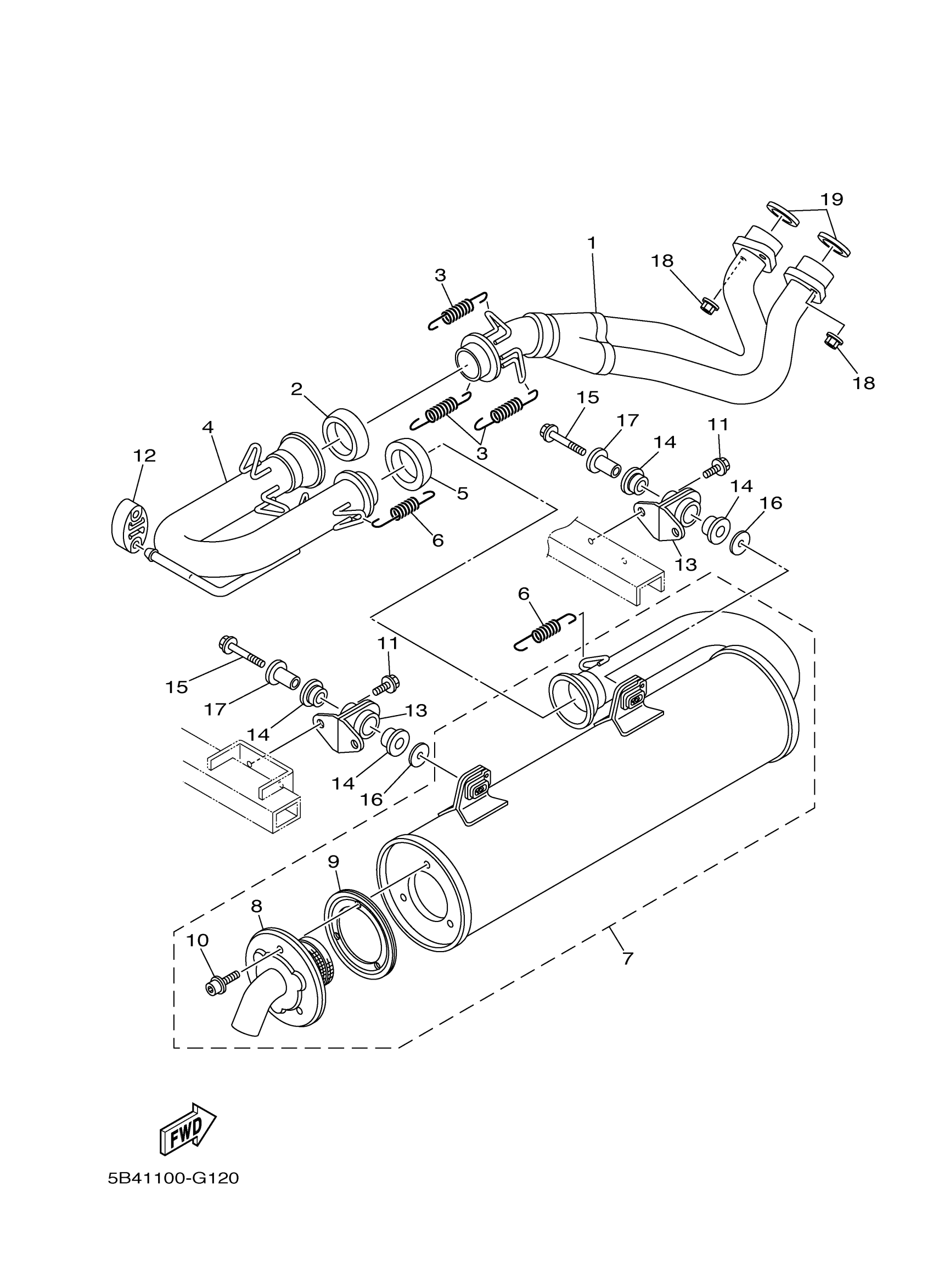

Yamaha YXR70FXR (RHINO 700FI) 5B41 2008 EXHAUST Diagram

PIPE, EXHAUST 1

GASKET, MUFFLER

SPRING, TENSION

PIPE, EXHAUST 2

GASKET, MUFFLER

SPRING, TENSION

MUFFLER ASSY 1

. PIPE, OUTLET

. GASKET, SILENCER

. BOLT, MUFFLER

BOLT, FLANGE

DAMPER, MUFFLER

MUFF. STAY SUB-KUM

DAMPER, FOOTREST 2

BOLT, FLANGE

WASHER, PLATE

COLLAR

NUT,FLANGE(J10)

GASKET, EXHAUST PIPE
