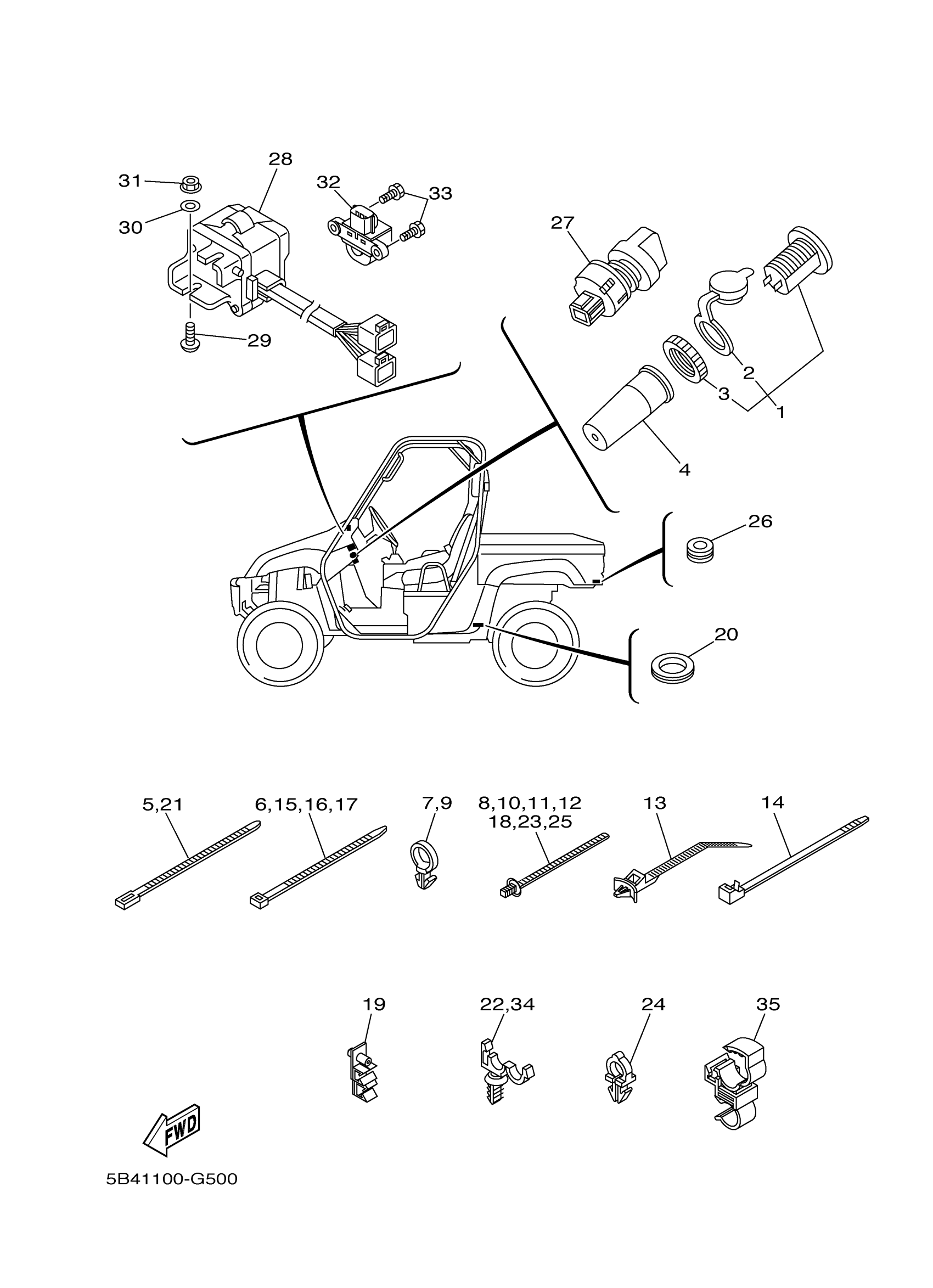

Yamaha YXR70FXR (RHINO 700FI) 5B41 2008 ELECTRICAL 2 Diagram

#

Description
Price

1

TERMINAL ASSY

5FU-H1920-10-00

$47.99

2

COVER

5FU-H1942-10-00

$10.99

3

NUT

5FU-H191B-10-00

$1.82

4

COVER,CONNECTER

5FU-H2599-01-00

$6.99

5

CLAMP(JN6)

90464-40825-00

$3.05

6

CLAMP

90464-48800-00

Unavailable

7

CLAMP

90464-19815-00

Unavailable

8

CLAMP

90464-20005-00

Unavailable

9

CLAMP

90464-19815-00

Unavailable

10

CLAMP

90464-20005-00

Unavailable

11

CLAMP

90464-20005-00

Unavailable

12

CLAMP

90464-20005-00

Unavailable

13

CLAMP

90464-38800-00

$5.60

14

CLAMP

90464-51800-00

$14.99

15

CLAMP

90464-48800-00

Unavailable

16

CLAMP

90464-48800-00

Unavailable

17

CLAMP

90464-48800-00

Unavailable

18

CLAMP

90464-20005-00

Unavailable

19

CLAMP

5UG-F481H-00-00

Unavailable

20

GROMMET

90480-25856-00

Unavailable

21

CLAMP(JN6)

90464-40825-00

$3.05

22

CLAMP

90464-12830-00

Unavailable

23

CLAMP

90464-20005-00

Unavailable

24

CLAMP

90464-12830-00

Unavailable

25

CLAMP

90464-20005-00

Unavailable

26

GROMMET(2GH)

90480-12475-00

Unavailable

27

SWITCH, LAMP

5UG-H2526-00-00

Unavailable

28

SWITCH, HANDLE 1

5UG-83976-23-00

Unavailable

29

SCREW(3YF)

90149-05299-00

Unavailable

30

WASHER, PLATE

90201-05042-00

Unavailable

31

NUT, NYLON

95707-05300-00

Unavailable

32

LEAN ANGLE SENSOR

3B4-82576-00-00

Unavailable

33

BOLT, SPECIAL

JW1-F3394-00-00

Unavailable

34

CLAMP

90464-12830-00

Unavailable

35

CLAMP

90464-12012-00

Unavailable
