Description

Price

1

CAMSHAFT ASSY 1

5B4-12170-00-00

Unavailable

2

PIN, DECOMPRESSION LEVER

5VK-12284-00-00

$22.99

3

LEVER, DECOMPRESSION SPRING

1S3-12290-00-00

$61.99

4

DECOMPRESSION ASSY

1S3-12280-01-00

$106.99

5

BOLT, FLANGE

90105-07004-00

$5.60

6

BEARING

93306-07209-00

$44.99

7

PLATE

5VK-1111F-00-00

$15.49

8

BOLT, FLANGE

95022-06012-00

$3.29

9

SPROCKET, CAM CHAIN

1S3-12176-00-00

$74.99

10

BOLT, FLANGE

90105-07004-00

$5.60

11

CHAIN

94591-57126-00

$38.99

12

GUIDE, STOPPER 1

3B4-12231-01-00

$31.99

13

GUIDE, STOPPER 2

3B4-12241-01-00

$53.99

14

BOLT, FLANGE

95022-06020-00

$3.62

15

TENSIONER ASSY, CAM CHAIN

3TB-12210-00-00

$141.99

16

BOLT,SOCKET

91317-06025-00

Unavailable

17

GASKET, TENSIONER CASE

4DW-12213-00-00

Unavailable

18

HOLDER

5B4-13898-00-00

Unavailable

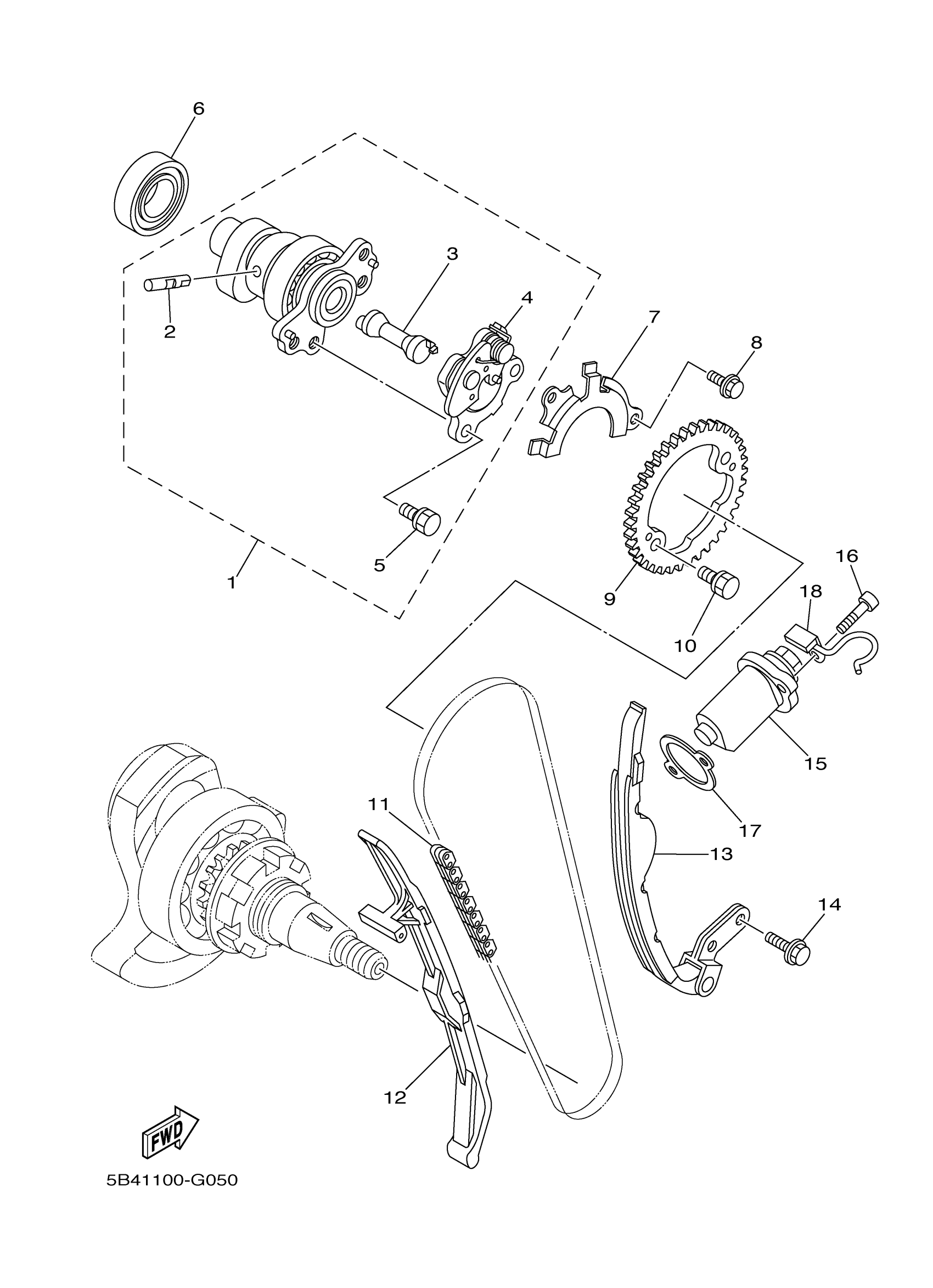

Yamaha YXR70FXR (RHINO 700FI) 5B41 2008 CAMSHAFT CHAIN Diagram

CAMSHAFT ASSY 1

PIN, DECOMPRESSION LEVER

LEVER, DECOMPRESSION SPRING

DECOMPRESSION ASSY

BOLT, FLANGE

BEARING

PLATE

BOLT, FLANGE

SPROCKET, CAM CHAIN

BOLT, FLANGE

CHAIN

GUIDE, STOPPER 1

GUIDE, STOPPER 2

BOLT, FLANGE

TENSIONER ASSY, CAM CHAIN

BOLT,SOCKET

GASKET, TENSIONER CASE

HOLDER
