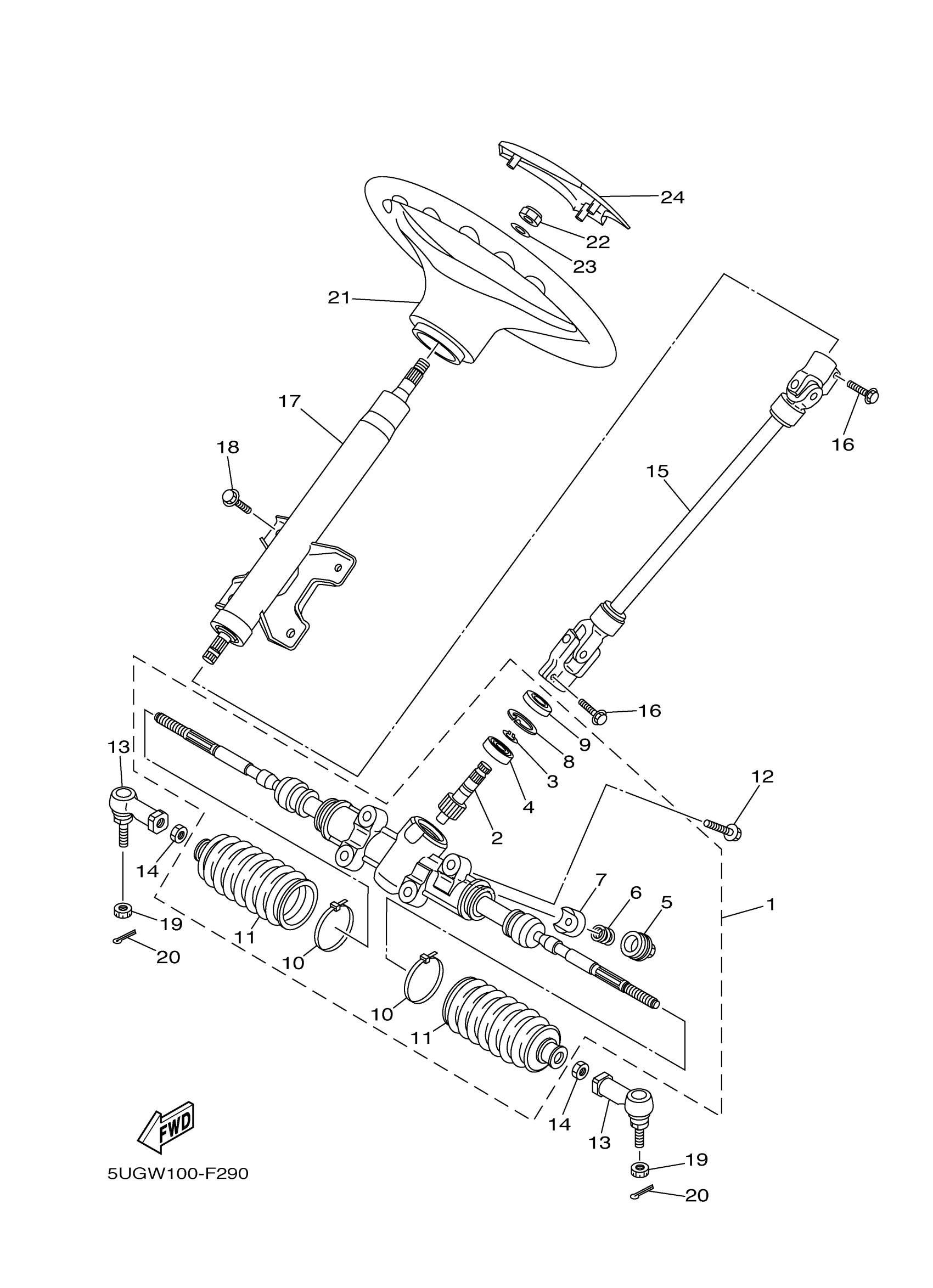

Yamaha YXR70FSP2X (RHINO 700 FI SPECIAL EDITION II) 5B4E 2008 STEERING Diagram

#

Description
Price

1

STEERING ASSY

5UG-F3400-00-00

$480.99

2

. GEAR, STEERING DRIVE

5UG-F3863-00-00

Unavailable

3

. CIRCLIP

5UG-F3183-00-00

Unavailable

4

PLANE BEARING, STE

5UG-F3812-00-00

$17.99

5

COVER, ADJUST

5UG-F387G-00-00

$4.73

6

SPRING, PRESSURE

5UG-F387K-00-00

$2.39

7

PAD, PRESSURE

5UG-F387F-00-00

$10.99

8

RING, STOPPER

5UG-F387J-00-00

$2.70

9

SEAL

5UG-F3844-00-00

$7.99

10

BAND

5UG-F3489-00-00

Unavailable

11

SEAL,DUST 1

5UG-F3527-01-00

$8.99

12

BOLT, FLANGE

95022-10025-00

$7.49

13

JOINT, UNIVERSAL 1

5B4-23841-00-00

$69.99

14

NUT 1

1P0-F3833-00-00

Unavailable

15

STEERING SHAFT ASS

5UG-F3840-01-00

$213.99

16

BOLT, FLANGE

95022-08025-00

Unavailable

17

COLUMN, STEERING

5UG-F3811-00-00

Unavailable

18

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

19

NUT, CASTLE

90171-12001-00

Unavailable

20

PIN, COTTER

91490-20025-00

Unavailable

21

WHEEL, STEERING

5UG-F3838-10-00

Unavailable

22

NUT, SELF-LOCKING

90185-12008-00

Unavailable

23

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

24

COVER, STEERING

5UG-F3818-10-00

Unavailable
