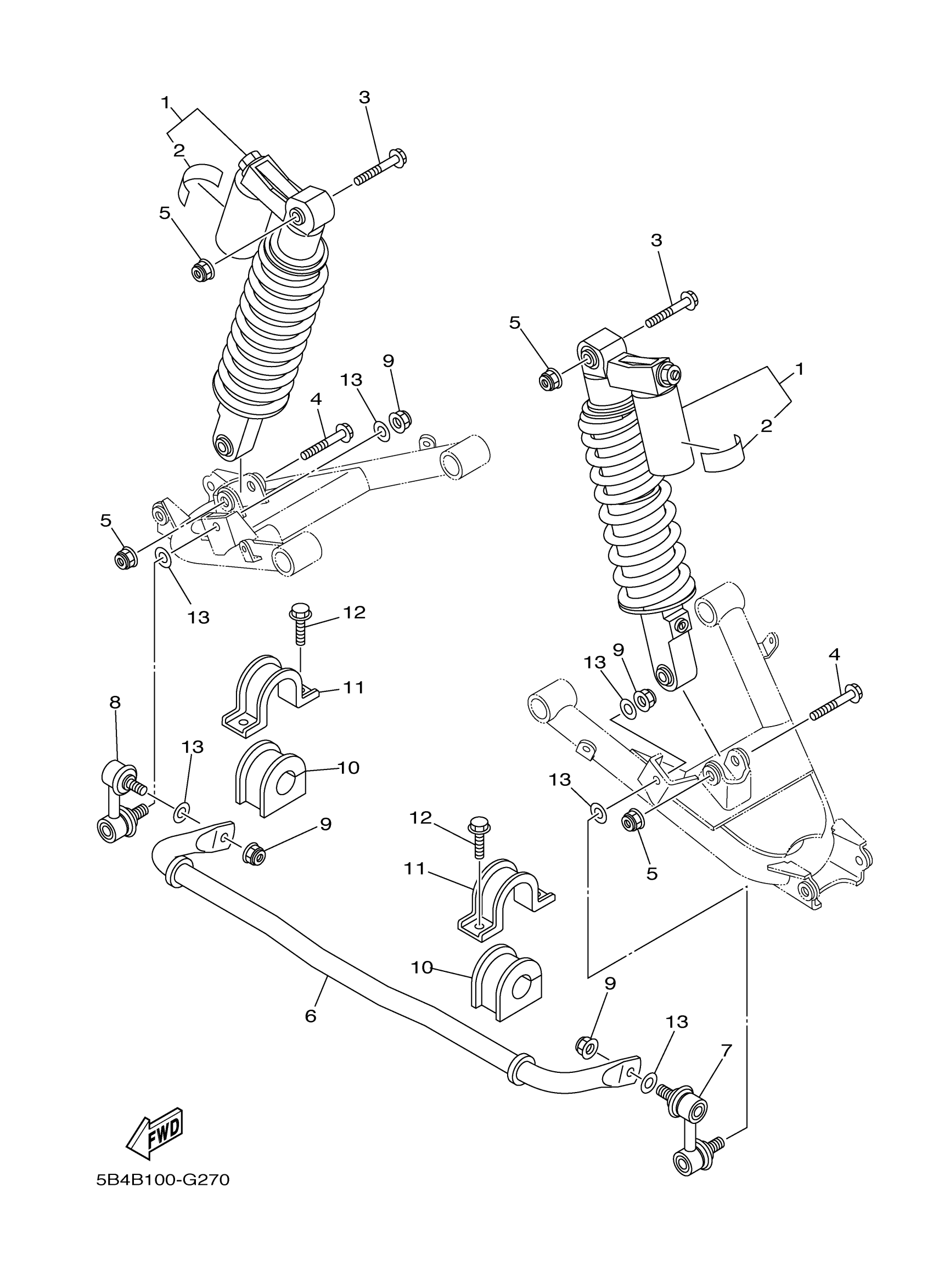

Yamaha YXR70FSP2X (RHINO 700 FI SPECIAL EDITION II) 5B4E 2008 REAR SUSPENSION Diagram

SHOCK ABSORBER ASSY, REAR

5UG-22210-50-00

Unavailable

LABEL, WARNING

4AA-22259-80-00

$13.49

BOLT, FLANGE

90105-12056-00

$11.49

BOLT, FLANGE

90105-12055-00

$12.49

NUT, SELF-LOCKING

90185-12009-00

$8.49

BAR, STABILIZER

5UG-G7491-00-00

Unavailable

JOINT, STABILIZER 1

16B-2385L-10-00

$72.99

JOINT, STABILIZER 2

16B-2385M-10-00

$72.99

NUT, SELF-LOCKING

90185-10012-00

$9.49

BUSH, STABILIZER F

1XD-F386G-00-00

Unavailable

COVER, STABILIZER FRONT

5UG-F386H-00-00

Unavailable

BOLT, FLANGE

95817-08014-00

$5.60

WASHER, PLATE

90201-10035-00

$4.19
