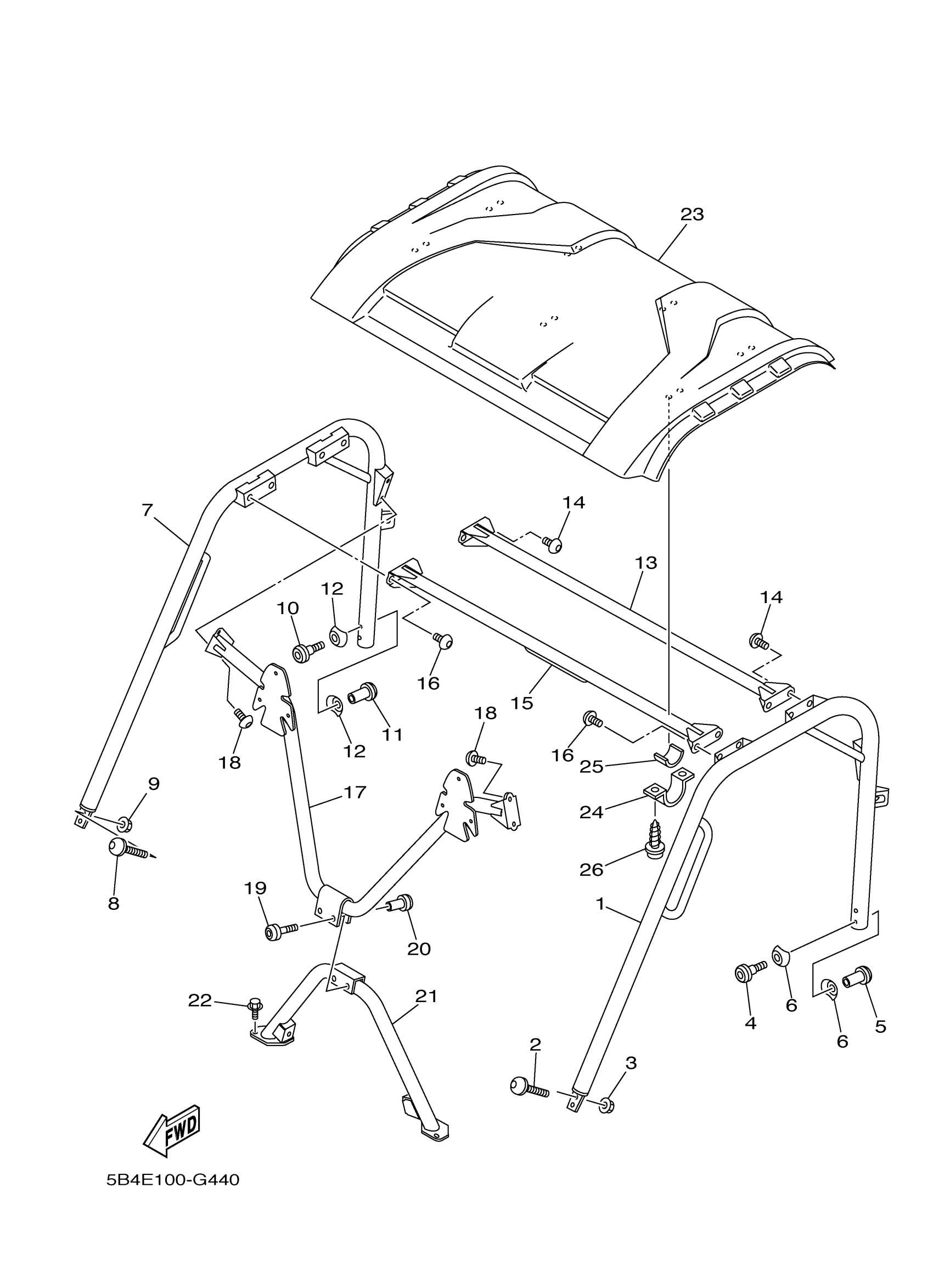

Yamaha YXR70FSP2X (RHINO 700 FI SPECIAL EDITION II) 5B4E 2008 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

5UG-K831A-51-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-10803-00

Unavailable

3

NUT, S/L FLANGE

95602-10200-00

$4.82

4

BOLT

5UG-K7519-00-00

$5.49

5

NUT, SPECIAL

5UG-K7573-00-00

$8.99

6

WASHER 2

5UG-K7526-00-00

$5.49

7

SUPPORT, ROOF 4

5UG-K831E-51-00

Unavailable

8

BOLT,HEX. SOCKET BUTTON

90111-10803-00

Unavailable

9

NUT, S/L FLANGE

95602-10200-00

$4.82

10

BOLT

5UG-K7519-00-00

$5.49

11

NUT, SPECIAL

5UG-K7573-00-00

$8.99

12

WASHER 2

5UG-K7526-00-00

$5.49

13

MEMBER, ROOF FRAME

1RB-K8392-00-00

Unavailable

14

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

15

MEMBER, CROSS ROOF

1RB-K8336-00-00

Unavailable

16

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

17

ROOF SUPPORT ASSY

1RB-K830A-00-00

Unavailable

18

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

19

BOLT

5UG-K7519-00-00

$5.49

20

NUT, SPECIAL

5UG-K7573-00-00

$8.99

21

ROOF SUPPORT ASSY

5UG-K830B-51-00

Unavailable

22

BOLT, FLANGE

95812-10016-00

Unavailable

23

COVER, SUN ROOF

5B4-K8314-00-00

Unavailable

24

CLAMP, SUPPORT

5UG-K8366-00-00

Unavailable

25

DAMPER

5UG-K7588-01-00

Unavailable

26

SCREW, TAPPING

90167-06800-00

Unavailable
