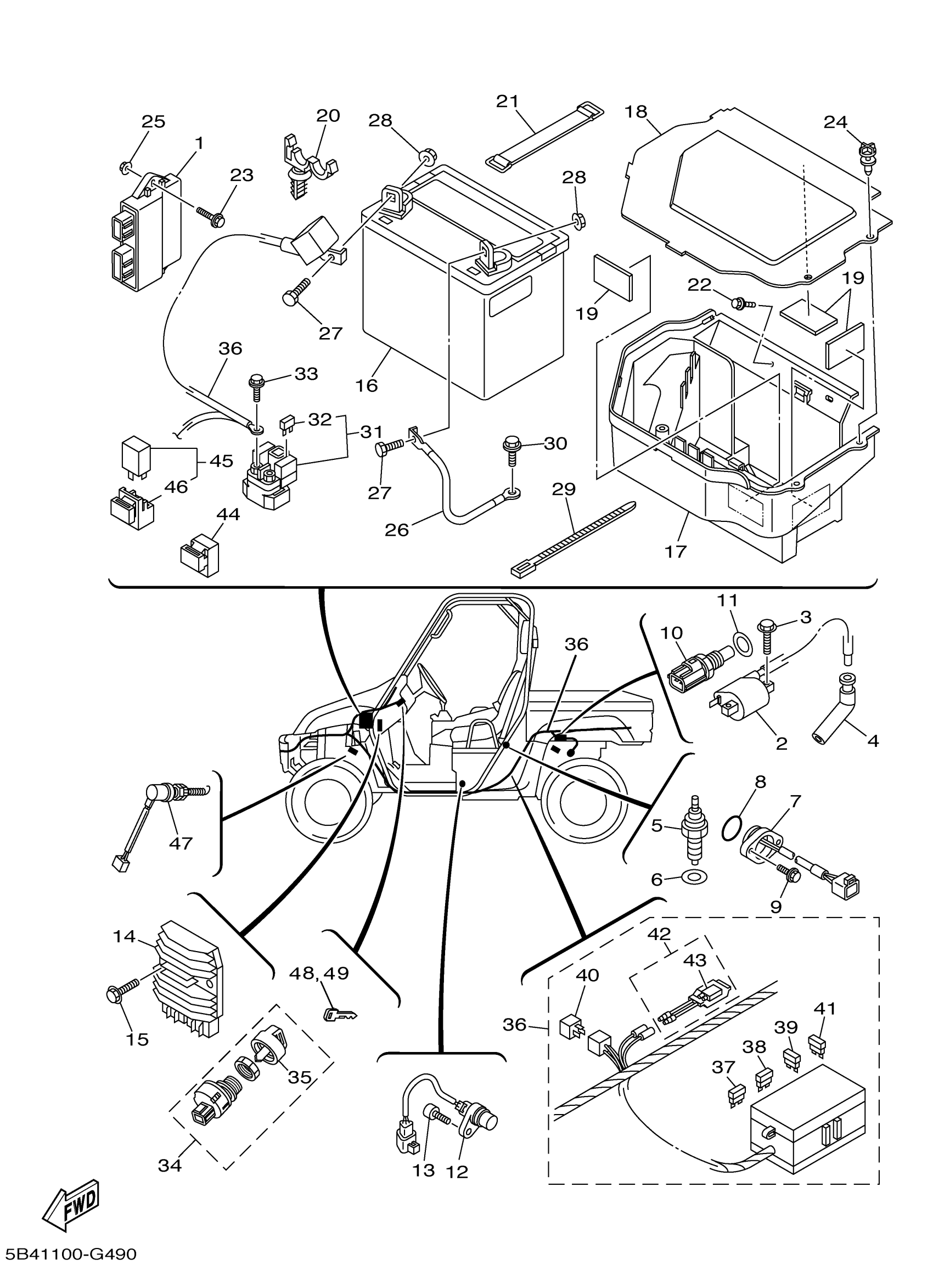

Yamaha YXR70FSP2X (RHINO 700 FI SPECIAL EDITION II) 5B4E 2008 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

5B4-8591A-01-00

$1,222.99

2

IGNITION COIL ASSY

5YU-H2310-14-00

Unavailable

3

BOLT, HEXAGON

97017-06020-00

$4.06

4

PLUG CAP ASSY

5B4-82370-00-00

$65.99

5

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

6

GASKET (1KH,1.0T)

90430-10148-00

$5.60

7

NEUTRAL SWITCH ASSY

3B4-82540-03-00

$75.99

8

O-RING (371)

93210-29196-00

$8.49

9

BOLT, WITH WASHER

90119-06137-00

$8.49

10

THERMOSENSOR ASSY

8CC-85790-01-00

$95.99

11

GASKET(2GH)

90430-12202-00

$9.49

12

SENSOR, SPEED

3B4-83755-01-00

$132.99

13

BOLT,SOCKET HEAD

91314-06020-00

$1.49

14

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

$323.99

15

BOLT, FLANGE

90105-06833-00

$2.28

16

11-U1LD GS BATTERY

11U-1LD00-00-00

Unavailable

17

BOX, BATTERY 1

5B4-H212B-00-00

Unavailable

18

COVER, BATTERY

5B4-H2129-00-00

Unavailable

19

DAMPER, SIDE COVER

4XE-F4145-00-00

Unavailable

20

CLAMP

90464-12830-00

Unavailable

21

BAND, BATTERY

22F-82131-00-00

Unavailable

22

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

23

BOLT, FLANGE

95817-06025-00

Unavailable

24

RIVET

5UG-F3483-00-00

Unavailable

25

NUT, FLANGE

95702-06500-00

Unavailable

26

WIRE, MINUS LEAD

5B4-H2116-00-00

Unavailable

27

BOLT(6TD)

97080-08020-00

Unavailable

28

NUT

90179-08015-00

Unavailable

29

CLAMP(JN6)

90464-31827-00

Unavailable

30

BOLT, FLANGE

95817-06014-00

Unavailable

31

STARTER RELAY ASSY (RC19-080A)

5B4-81940-00-00

Unavailable

32

FUSE (10A)

42X-82151-00-00

Unavailable

33

BOLT, FLANGE

95022-06008-00

Unavailable

34

MAIN SWITCH ASSY

1XD-H2510-11-00

Unavailable

35

CAP, KEY

5UG-H2579-00-00

Unavailable

36

WIRE HARNESS ASSY

5B4-82590-00-00

Unavailable

37

FUSE (15A)

67F-82151-50-00

Unavailable

38

. FUSE (10A)

67F-82151-40-00

Unavailable

39

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

40

DIODE ASSY

4WA-81980-00-00

Unavailable

41

FUSE (25A-BL)

5JJ-82151-70-00

Unavailable

42

CIRCUIT BREAKER ASSY

5B4-82180-00-00

Unavailable

43

THERMO SWITCH ASSY

5B4-82560-00-00

Unavailable

44

RELAY ASSY

5DM-81950-01-00

Unavailable

45

RELAY ASSY (5EA-02)

5EA-81950-20-00

Unavailable

46

HOLDER,RELAY

5EA-81952-00-00

Unavailable

47

STOP SWITCH ASSY

4KB-82530-11-00

Unavailable

48

KEY BLANK (A) 5000-5149

5UG-H2511-09-00

Unavailable

49

KEY BLANK (B) 5150 - 5299

5UG-H2511-19-00

Unavailable
