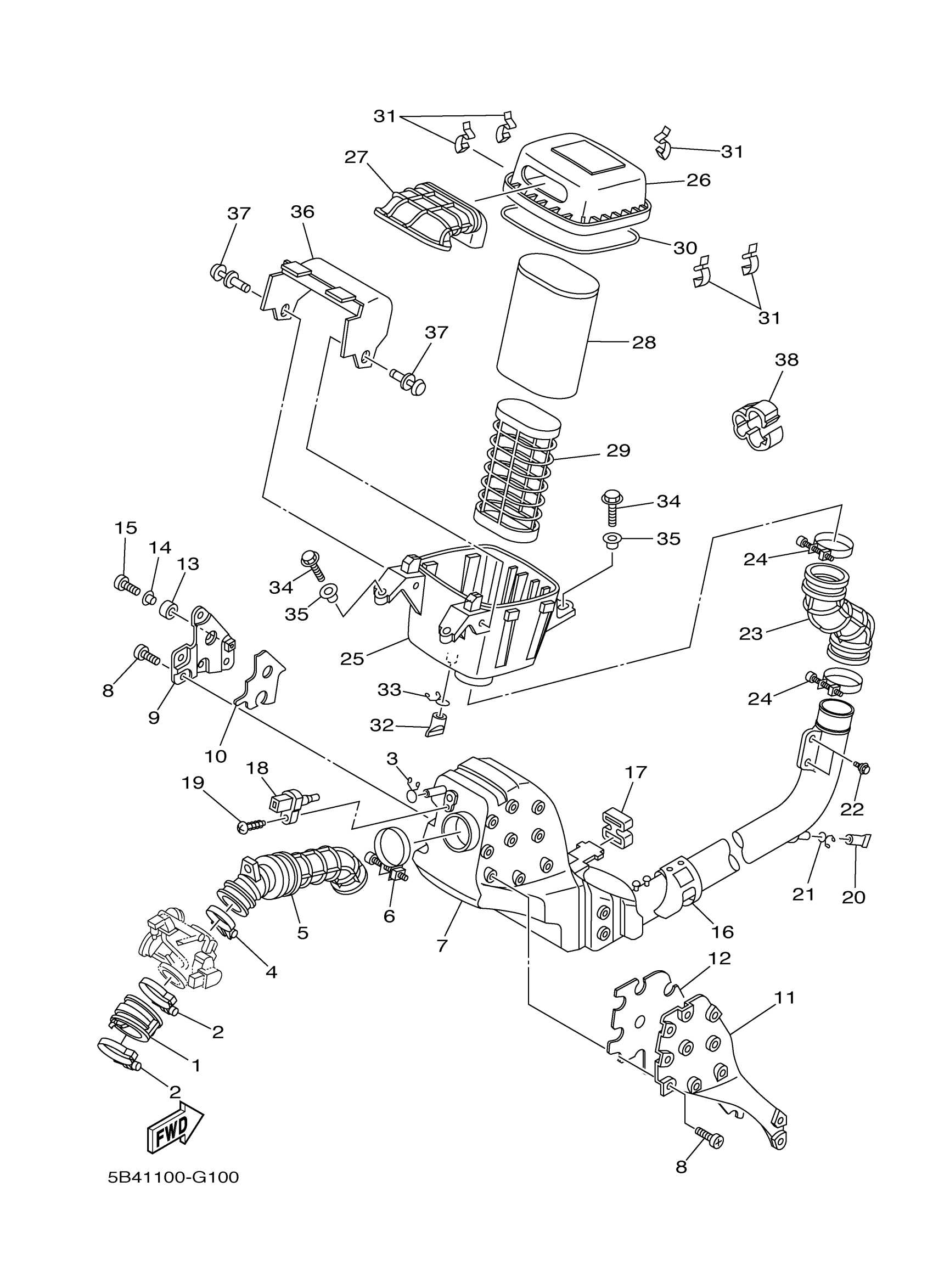

Yamaha YXR70FSEPX (RHINO 700 FI SPECIAL EDITION I) 5B49 2008 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

5B4-13586-00-00

$42.99

2

HOSE CLAMP ASSY

90450-72004-00

$18.99

3

CLIP (806-24358-00)

90467-15012-00

$8.49

4

HOSE CLAMP ASSY

90450-62006-00

$12.49

5

JOINT, AIR CLEANER 1

5B4-E4453-00-00

Unavailable

6

BAND

5B4-E4455-00-00

Unavailable

7

DUCT

5B4-E443A-00-00

Unavailable

8

SCREW, PAN HEAD

5B4-E4325-00-00

Unavailable

9

PLATE 1

5B4-E4247-00-00

Unavailable

10

SPACER

5B4-E4163-00-00

Unavailable

11

PLATE 2

5B4-E4248-00-00

Unavailable

12

SPACER

5B4-E4442-00-00

Unavailable

13

DAMPER 2

5B4-E4426-00-00

Unavailable

14

COLLAR

5B4-E4449-00-00

Unavailable

15

SCREW

5B4-E4429-00-00

Unavailable

16

PROTECTOR

5B4-E442F-00-00

Unavailable

17

DAMPER

5B4-E4409-00-00

Unavailable

18

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

Unavailable

19

SCREW, PANHEAD TAPPING

97702-50520-00

Unavailable

20

PIPE, DRAIN

5BF-1443E-00-00

Unavailable

21

CLIP

90467-160A4-00

Unavailable

22

BOLT

90109-06172-00

Unavailable

23

JOINT

5B4-E4454-00-00

Unavailable

24

BAND

5B4-E4455-00-00

Unavailable

25

CASE, AIR CLEANER 1

5B4-E4411-00-00

Unavailable

26

CAP, CLEANER CASE

5B4-E4412-00-00

Unavailable

27

DUCT

5B4-E4437-00-00

Unavailable

28

ELEMENT, AIR CLEAN

5B4-E4451-00-00

Unavailable

29

PLATE, ELEMENT

5B4-E4472-00-00

Unavailable

30

SEAL

5B4-E4457-00-00

Unavailable

31

CLIP, CAP FITTING

3B4-14424-00-00

Unavailable

32

SEAL

59V-14457-00-00

Unavailable

33

CLIP

90467-220A1-00

Unavailable

34

BOLT, FLANGE

90105-06833-00

Unavailable

35

COLLAR

90387-08073-00

Unavailable

36

COVER 2

5B4-E246E-00-00

Unavailable

37

RIVET

5UG-F3483-00-00

Unavailable

38

CLAMP(4GL)

90464-10233-00

Unavailable
