- YXR70FSEPX (RHINO 700 FI SPECIAL EDITION I) 5B49 2008
ELECTRICAL 2

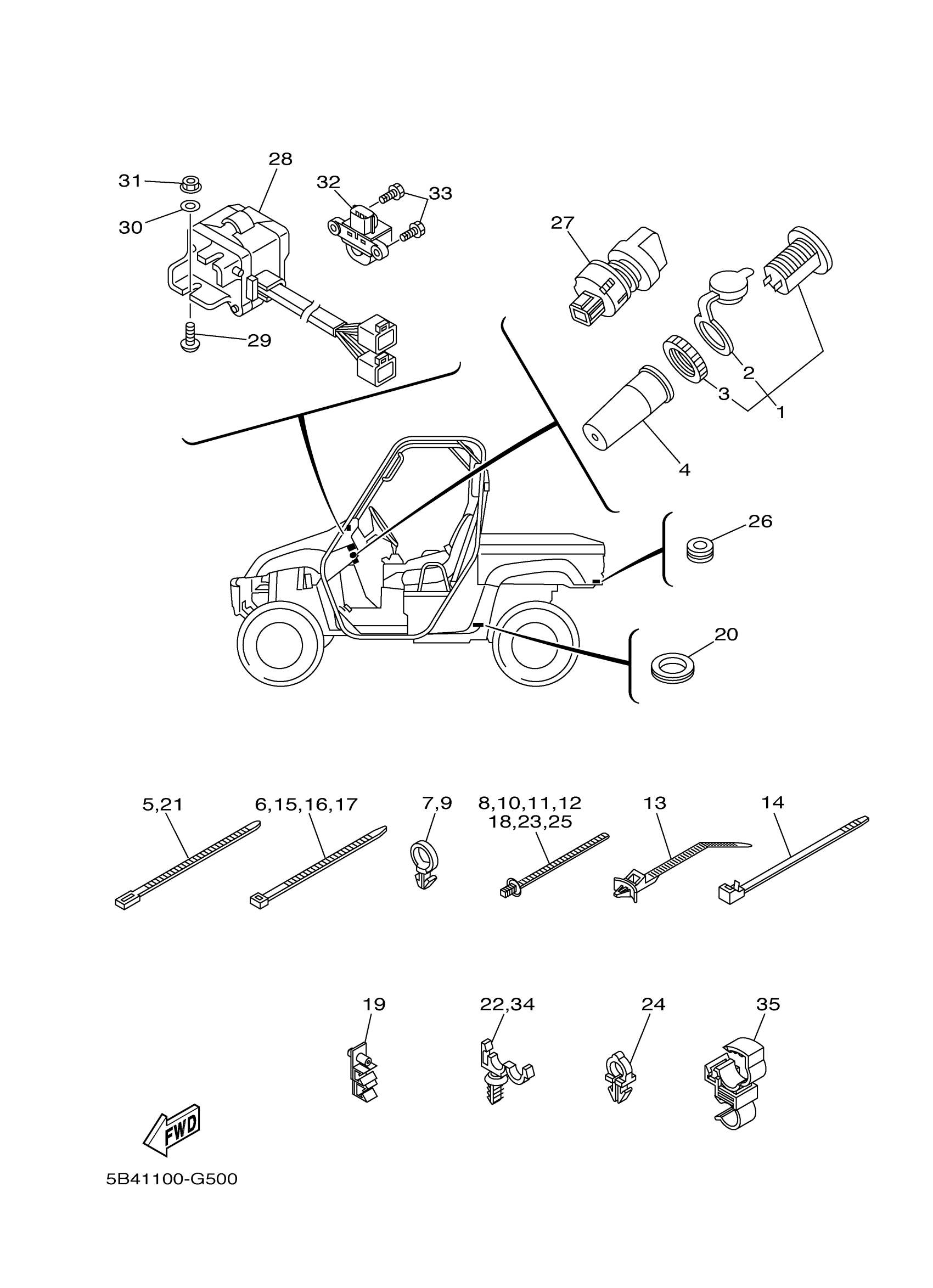

Yamaha YXR70FSEPX (RHINO 700 FI SPECIAL EDITION I) 5B49 2008 ELECTRICAL 2 Diagram
#
1
TERMINAL ASSY
5FU-H1920-10-00
$47.99
2
COVER
5FU-H1942-10-00
$10.99
3
NUT
5FU-H191B-10-00
$1.82
4
COVER,CONNECTER
5FU-H2599-01-00
$6.99
5
CLAMP(JN6)
90464-40825-00
$3.05
6
CLAMP
90464-48800-00
Unavailable
7
CLAMP
90464-19815-00
Unavailable
8
CLAMP
90464-20005-00
Unavailable
9
CLAMP
90464-19815-00
Unavailable
10
CLAMP
90464-20005-00
Unavailable
11
CLAMP
90464-20005-00
Unavailable
12
CLAMP
90464-20005-00
Unavailable
13
CLAMP
90464-38800-00
$5.60
14
CLAMP
90464-51800-00
$14.99
15
CLAMP
90464-48800-00
Unavailable
16
CLAMP
90464-48800-00
Unavailable
17
CLAMP
90464-48800-00
Unavailable
18
CLAMP
90464-20005-00
Unavailable
19
CLAMP
5UG-F481H-00-00
Unavailable
20
GROMMET
90480-25856-00
Unavailable
21
CLAMP(JN6)
90464-40825-00
$3.05
22
CLAMP
90464-12830-00
Unavailable
23
CLAMP
90464-20005-00
Unavailable
24
CLAMP
90464-12830-00
Unavailable
25
CLAMP
90464-20005-00
Unavailable
26
GROMMET(2GH)
90480-12475-00
Unavailable
27
SWITCH, LAMP
5UG-H2526-00-00
Unavailable
28
SWITCH, HANDLE 1
5UG-83976-23-00
Unavailable
29
SCREW(3YF)
90149-05299-00
Unavailable
30
WASHER, PLATE
90201-05042-00
Unavailable
31
NUT, NYLON
95707-05300-00
Unavailable
32
LEAN ANGLE SENSOR
3B4-82576-00-00
Unavailable
33
BOLT, SPECIAL
JW1-F3394-00-00
Unavailable
34
CLAMP
90464-12830-00
Unavailable
35
CLAMP
90464-12012-00
Unavailable
