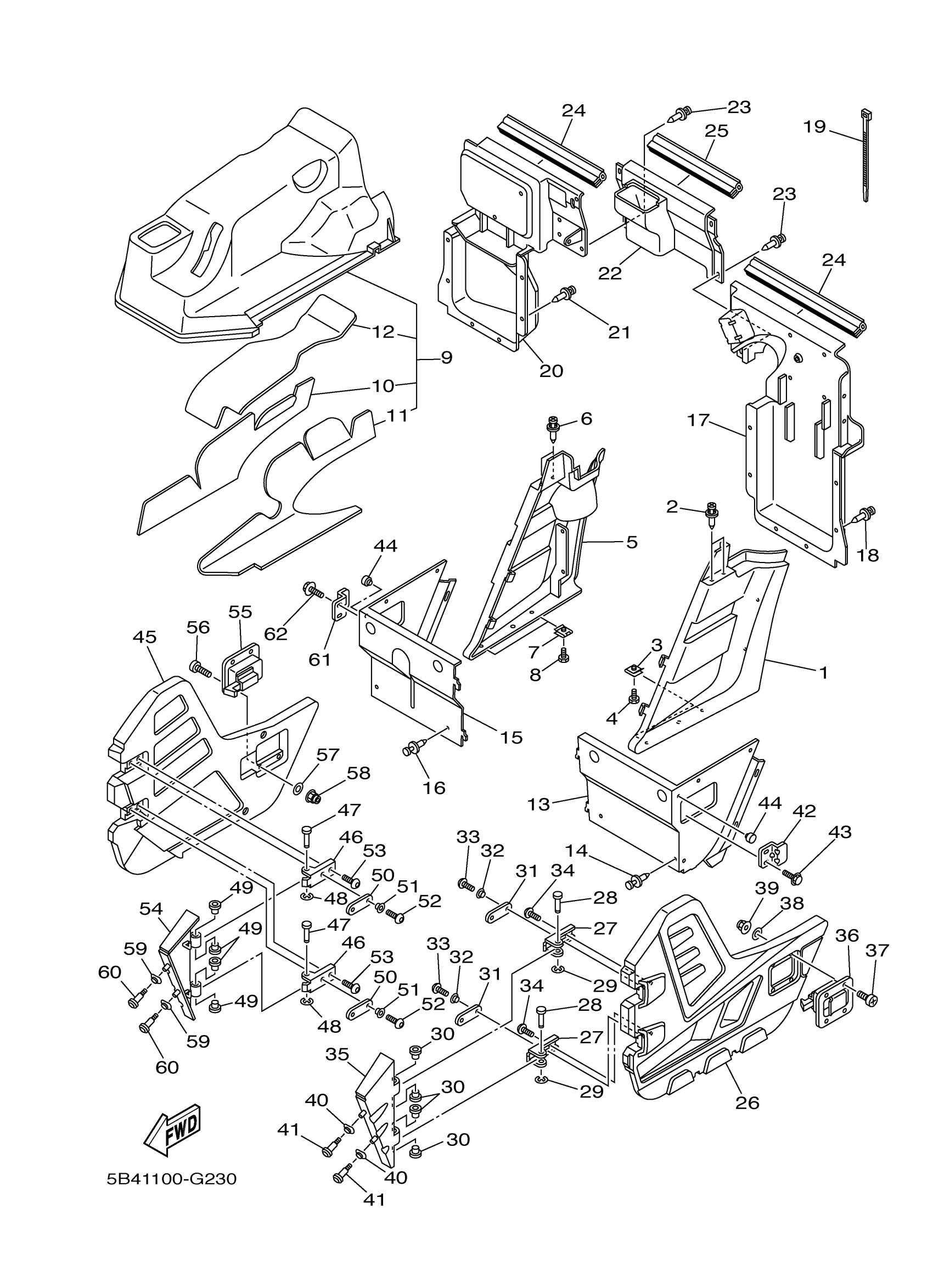

Yamaha YXR70FHX (RHINO 700 FI HUNTER) 5B45 2008 SIDE COVER Diagram
#
1
SIDE PANEL COMP.1
5UG-K810F-01-00
Unavailable
2
RIVET
90269-06800-00
$2.18
3
NUT, SPRING
90183-05008-00
$9.49
4
BOLT, WITH WASHER
90119-05023-00
$8.49
5
SIDE PANEL COMP.2
5UG-K810G-01-00
Unavailable
6
RIVET
90269-06800-00
$2.18
7
NUT, SPRING
90183-05008-00
$9.49
8
BOLT, WITH WASHER
90119-05023-00
$8.49
9
COVER ASSY
5B4-F8108-00-00
$343.99
10
. SEAL 1
5B4-F2873-00-00
Unavailable
11
. SEAL 3
5B4-F2875-00-00
Unavailable
12
. SEAL 6
5B4-F2878-00-00
Unavailable
13
SUPPORT, SIDE PANEL
5UG-F254J-11-00
Unavailable
14
RIVET
90269-06800-00
$2.18
15
SUPPORT, SIDE PANEL 2
5UG-F254K-11-00
Unavailable
16
RIVET
90269-06800-00
$2.18
17
PROTECTOR, SIDE 1
5B4-K7561-00-00
Unavailable
18
RIVET
90269-06800-00
$2.18
19
CLAMP
90464-48800-00
Unavailable
20
PROTECTOR, FUEL TANK
5B4-F4141-00-00
Unavailable
21
RIVET
90269-06800-00
$2.18
22
PLATE, CONNECTING
5B4-F4113-10-00
Unavailable
23
RIVET
90269-06800-00
$2.18
24
SEAL 4
5B4-F41A4-00-00
Unavailable
25
SEAL 5
5B4-F41A5-00-00
Unavailable
26
COVER, SIDE 1
5B4-F2864-00-00
Unavailable
27
HINGE
5B4-F1797-00-00
Unavailable
28
PIN 1
5B4-F146A-00-00
Unavailable
29
CLIP
5B4-F3447-00-00
Unavailable
30
BUSH, RUBBER 1
2P5-K7515-00-00
Unavailable
31
BAND, RUBBER
5B4-F2929-01-00
Unavailable
32
COLLAR
90387-06089-00
Unavailable
33
BOLT,HEX. SOCKET BUTTON
90111-06086-00
Unavailable
34
BOLT 2
5B4-F1722-00-00
Unavailable
35
HINGE 1
5B4-F197J-00-00
Unavailable
36
HANDLE, LATCH
5B4-F389F-00-00
Unavailable
37
SCREW, BINDING
98907-05020-00
Unavailable
38
WASHER, PLATE
90201-05039-00
Unavailable
39
NUT, S/L FLANGE
95607-05200-00
Unavailable
40
WASHER 2
5UG-K7526-00-00
Unavailable
41
BOLT
5B4-K7519-00-00
Unavailable
42
LATCH
5B4-F389E-00-00
Unavailable
43
BOLT
5B4-F1738-00-00
Unavailable
44
PAD, BATTERY
5TG-82121-10-00
Unavailable
45
COVER, SIDE 2
5B4-F2868-00-00
Unavailable
46
HINGE
5B4-F1797-00-00
Unavailable
47
PIN 1
5B4-F146A-00-00
Unavailable
48
CLIP
5B4-F3447-00-00
Unavailable
49
BUSH, RUBBER 1
2P5-K7515-00-00
Unavailable
50
BAND, RUBBER
5B4-F2929-01-00
Unavailable
51
COLLAR
90387-06089-00
Unavailable
52
BOLT,HEX. SOCKET BUTTON
90111-06086-00
Unavailable
53
BOLT 2
5B4-F1722-00-00
Unavailable
54
HINGE 2
5B4-F197K-00-00
Unavailable
55
HANDLE, LATCH
5B4-F389F-00-00
Unavailable
56
SCREW, BINDING
98907-05020-00
Unavailable
57
WASHER, PLATE
90201-05039-00
Unavailable
58
NUT, S/L FLANGE
95607-05200-00
Unavailable
59
WASHER 2
5UG-K7526-00-00
Unavailable
60
BOLT
5B4-K7519-00-00
Unavailable
61
LATCH
5B4-F389E-00-00
Unavailable
62
BOLT
5B4-F1738-00-00
Unavailable
