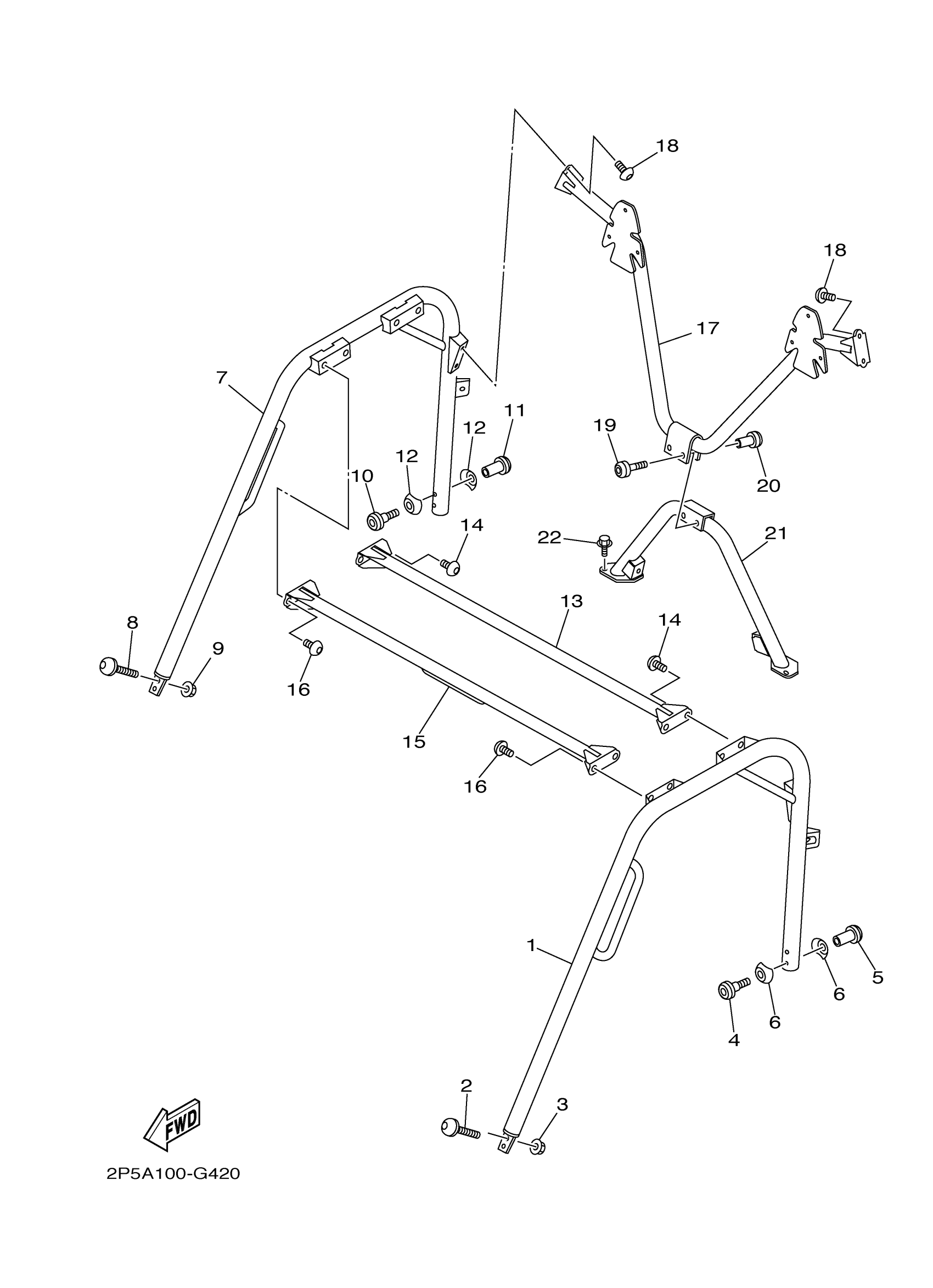

Yamaha YXR70FHX (RHINO 700 FI HUNTER) 5B45 2008 GUARD 2 Diagram
#
Description
Price
1
SUPPORT, ROOF 3
5UG-K831A-51-00
Unavailable
2
BOLT,HEX. SOCKET BUTTON
90111-10803-00
Unavailable
7
SUPPORT, ROOF 4
5UG-K831E-51-00
Unavailable
8
BOLT,HEX. SOCKET BUTTON
90111-10803-00
Unavailable
13
MEMBER, ROOF FRAME
1RB-K8392-00-00
Unavailable
15
MEMBER, CROSS ROOF
1RB-K8336-00-00
Unavailable
17
ROOF SUPPORT ASSY
1RB-K830A-00-00
Unavailable
21
ROOF SUPPORT ASSY
5UG-K830B-51-00
Unavailable
22
BOLT, FLANGE
95812-10016-00
Unavailable
