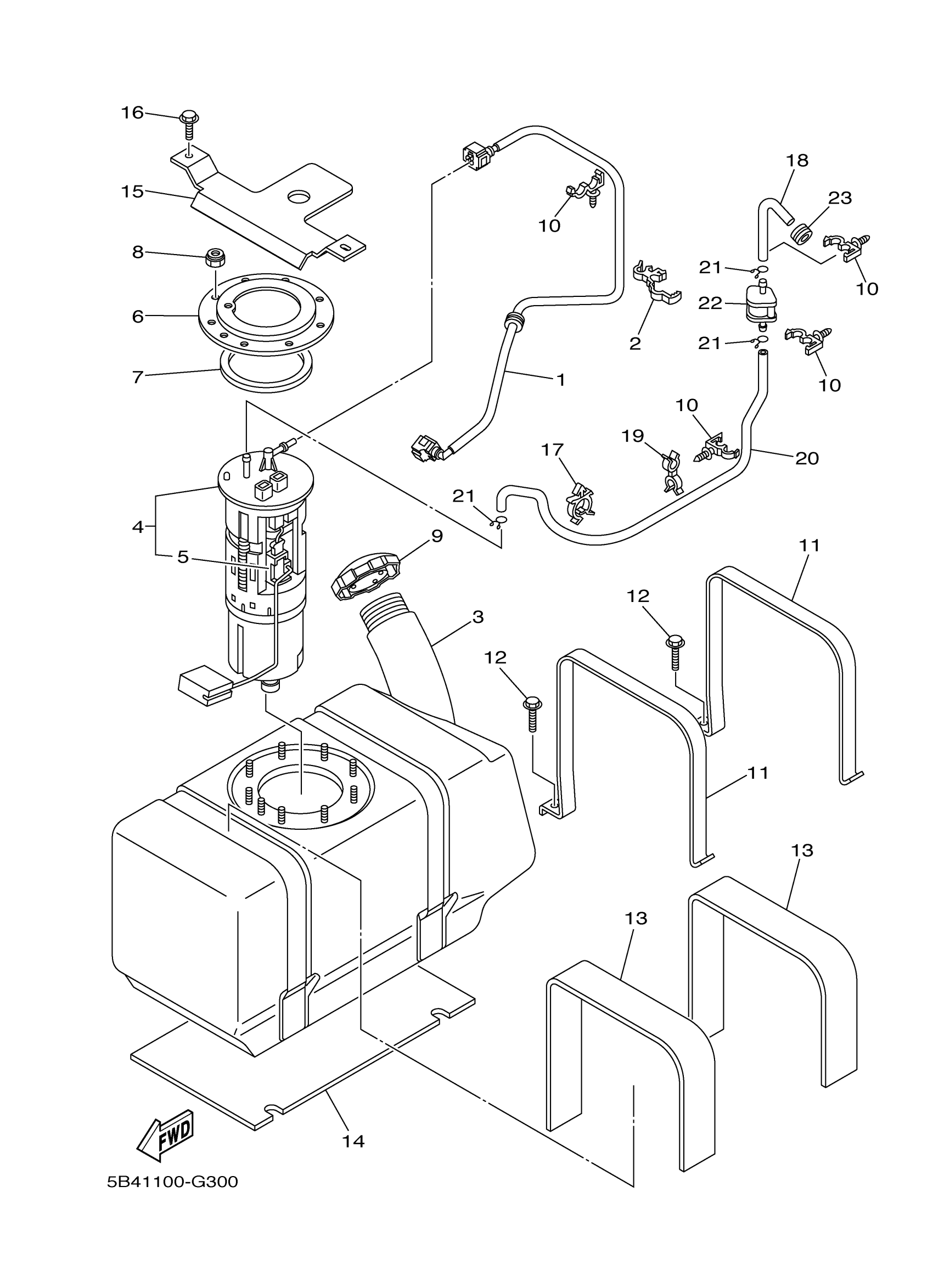

Yamaha YXR70FHX (RHINO 700 FI HUNTER) 5B45 2008 FUEL TANK Diagram

#

Description
Price

1

PIPE, FUEL 1

5B4-13971-00-00

$119.96

2

CLAMP

90464-12012-00

$2.91

3

FUEL TANK

5B4-F4110-00-00

Unavailable

4

FUEL PUMP COMP.

5B4-13907-04-00

Unavailable

5

SENDER ASSY

5B4-85701-00-00

Unavailable

6

RING

5B4-U7773-00-00

Unavailable

7

PACKING, SEAL

F1B-67747-00-00

$17.09

8

NUT, SELF-LOCKING

95617-06100-00

$2.17

9

CAP ASSY

BVG-24610-00-00

Unavailable

10

CLAMP

90464-12830-00

$0.98

11

STAY, FUEL TANK 1

5B4-F4157-00-00

$27.97

12

BOLT, FLANGE

90105-08879-00

$3.53

13

DAMPER, PLATE 1

5UG-F414H-00-00

$15.95

14

DAMPER, PLATE 2

5UG-F414J-00-00

Unavailable

15

DAMPER, SIDE COVER

5B4-F4145-00-00

Unavailable

16

BOLT, FLANGE

90105-08867-00

Unavailable

17

CLAMP

90464-25826-00

$1.94

18

PIPE 2

5B4-F4312-00-00

Unavailable

19

CLAMP(2YK)

90464-13103-00

Unavailable

20

PIPE 4

5B4-F4314-00-00

$14.31

21

CLIP

90467-100A1-00

Unavailable

22

PIPE JOINT ASSY

3B4-24380-11-00

Unavailable

23

GROMMET (1E6)

90480-15058-00

Unavailable
