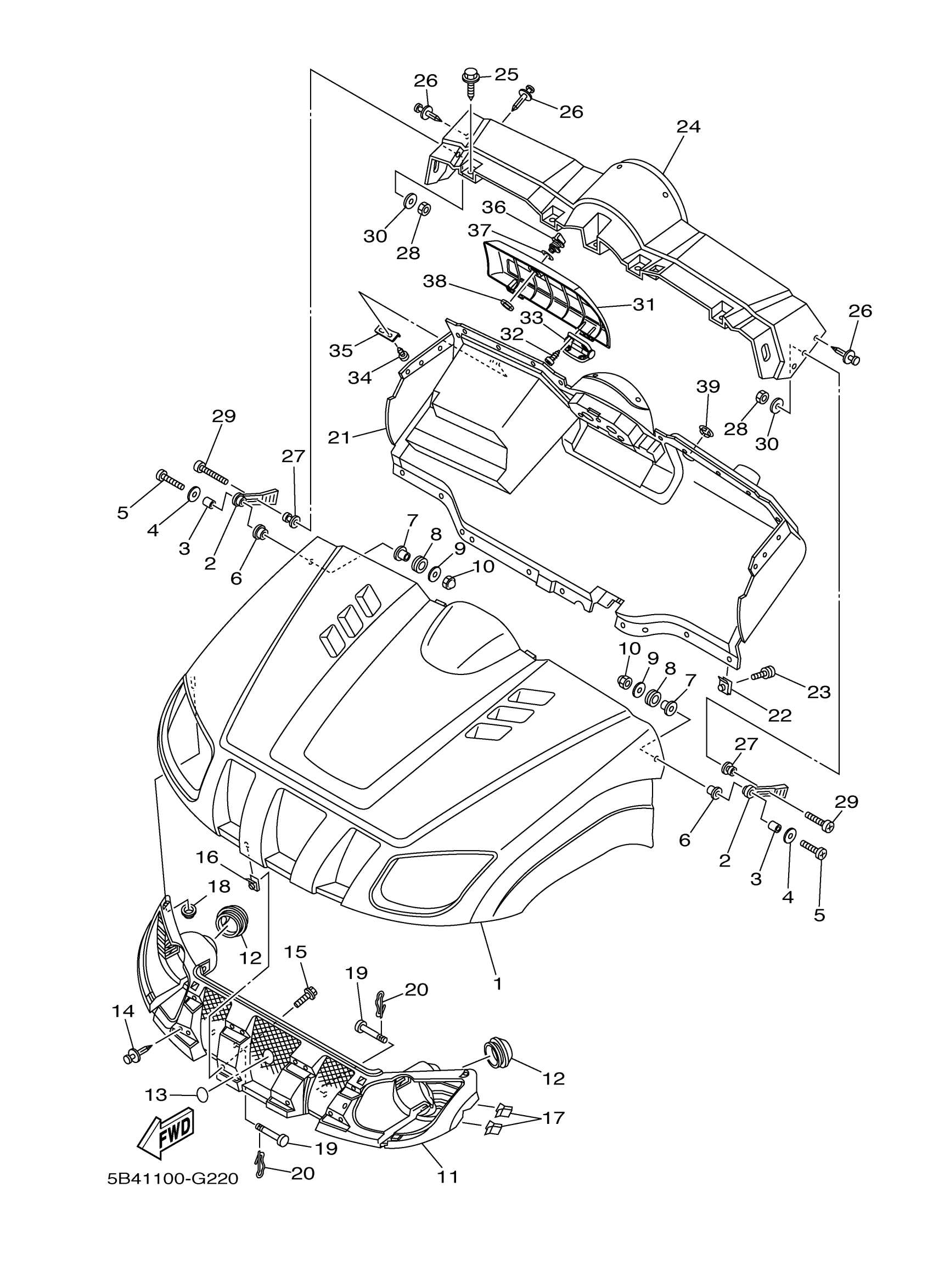

Yamaha YXR70FHX (RHINO 700 FI HUNTER) 5B45 2008 FRONT FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP.
5UG-F1510-G0-00
Unavailable
7
COLLAR (6G1)
90387-06M52-00
Unavailable
11
GRILL, FRONT
5UG-F8309-11-00
Unavailable
16
NUT, SPRING
90183-050A0-00
Unavailable
17
CLIP
5UG-F3447-00-00
Unavailable
18
NUT, SPRING
90183-08800-00
Unavailable
19
PIN,CLEVIS
90240-13802-00
Unavailable
20
CLIP(3YF)
90468-16191-00
Unavailable
21
PANEL, FRONT
5UG-F3391-03-00
Unavailable
21
PANEL,FRONT
5UG-F3391-04-00
Unavailable
22
NUT, SPRING
90183-051A1-00
Unavailable
24
PANEL, OUTER 2
5UG-F3312-M0-00
Unavailable
25
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
26
RIVET
90269-06800-00
Unavailable
27
. HOLDER, LATCH
8M6-77175-00-00
Unavailable
28
NUT, NYLON
95707-06300-00
Unavailable
30
WASHER, PLATE
90201-06097-00
Unavailable
31
LID, GLOVE BOX
5UG-K7736-00-00
Unavailable
32
SCREW, TAPPING
90164-04800-00
Unavailable
33
HINGE
5UG-F1797-00-00
Unavailable
34
SCREW, TAPPING (GLOVE BOX)
90164-05800-00
Unavailable
35
BRACKET,COVER
5UG-F139T-10-00
Unavailable
36
LOCK ASSY
5UG-F16A0-00-00
Unavailable
37
GASKET
5UG-F3139-00-00
Unavailable
38
NUT
5UG-F1494-00-00
Unavailable
39
PLUG
5B4-F2417-00-00
Unavailable
40
PLUG, PILOT LIGHT
5B4-H3530-09-00
Unavailable
