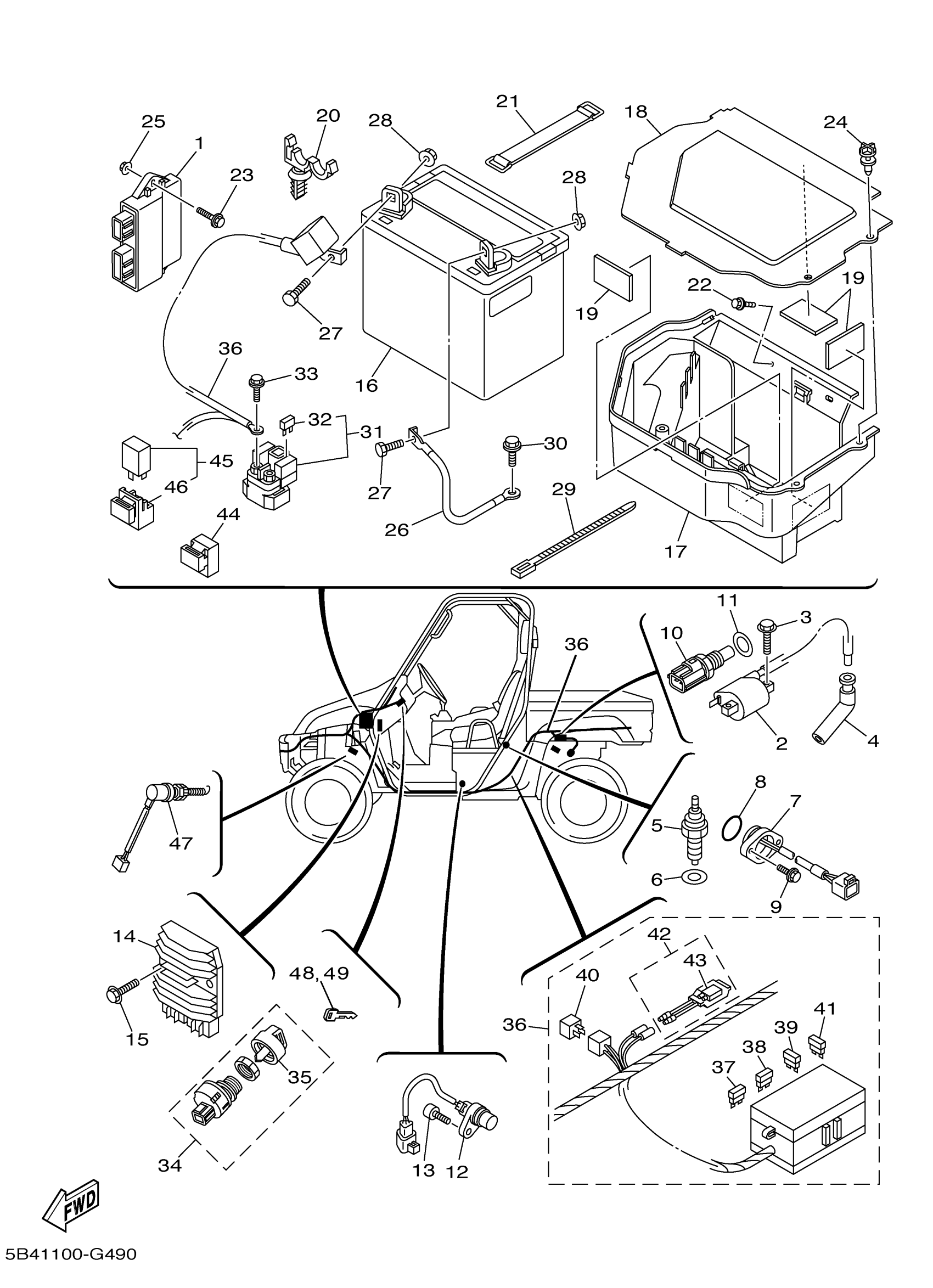

Yamaha YXR70FHX (RHINO 700 FI HUNTER) 5B45 2008 ELECTRICAL 1 Diagram
#
1
ENGINE CONTROL UNIT ASSY
5B4-8591A-01-00
$1,222.99
2
IGNITION COIL ASSY
5YU-H2310-14-00
Unavailable
3
BOLT, HEXAGON
97017-06020-00
$4.06
4
PLUG CAP ASSY
5B4-82370-00-00
$65.99
5
NEUTRAL SWITCH ASSY
3GB-82540-01-00
$58.99
6
GASKET (1KH,1.0T)
90430-10148-00
$5.60
7
NEUTRAL SWITCH ASSY
3B4-82540-03-00
$75.99
8
O-RING (371)
93210-29196-00
$8.49
9
BOLT, WITH WASHER
90119-06137-00
$8.49
10
THERMOSENSOR ASSY
8CC-85790-01-00
$95.99
11
GASKET(2GH)
90430-12202-00
$9.49
12
SENSOR, SPEED
3B4-83755-01-00
$132.99
13
BOLT,SOCKET HEAD
91314-06020-00
$1.49
14
RECTIFIER & REGULATOR ASSY
1D7-81960-01-00
$323.99
15
BOLT, FLANGE
90105-06833-00
$2.28
16
11-U1LD GS BATTERY
11U-1LD00-00-00
Unavailable
17
BOX, BATTERY 1
5B4-H212B-00-00
Unavailable
18
COVER, BATTERY
5B4-H2129-00-00
Unavailable
19
DAMPER, SIDE COVER
4XE-F4145-00-00
Unavailable
20
CLAMP
90464-12830-00
Unavailable
21
BAND, BATTERY
22F-82131-00-00
Unavailable
22
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
23
BOLT, FLANGE
95817-06025-00
Unavailable
24
RIVET
5UG-F3483-00-00
Unavailable
25
NUT, FLANGE
95702-06500-00
Unavailable
26
WIRE, MINUS LEAD
5B4-H2116-00-00
Unavailable
27
BOLT(6TD)
97080-08020-00
Unavailable
28
NUT
90179-08015-00
Unavailable
29
CLAMP(JN6)
90464-31827-00
Unavailable
30
BOLT, FLANGE
95817-06014-00
Unavailable
31
STARTER RELAY ASSY (RC19-080A)
5B4-81940-00-00
Unavailable
32
FUSE (10A)
42X-82151-00-00
Unavailable
33
BOLT, FLANGE
95022-06008-00
Unavailable
34
MAIN SWITCH ASSY
1XD-H2510-11-00
Unavailable
35
CAP, KEY
5UG-H2579-00-00
Unavailable
36
WIRE HARNESS ASSY
5B4-82590-00-00
Unavailable
37
FUSE (15A)
67F-82151-50-00
Unavailable
38
. FUSE (10A)
67F-82151-40-00
Unavailable
39
SLOW BLOW FUSE
JR9-82151-00-00
Unavailable
40
DIODE ASSY
4WA-81980-00-00
Unavailable
41
FUSE (25A-BL)
5JJ-82151-70-00
Unavailable
42
CIRCUIT BREAKER ASSY
5B4-82180-00-00
Unavailable
43
THERMO SWITCH ASSY
5B4-82560-00-00
Unavailable
44
RELAY ASSY
5DM-81950-01-00
Unavailable
45
RELAY ASSY (5EA-02)
5EA-81950-20-00
Unavailable
46
HOLDER,RELAY
5EA-81952-00-00
Unavailable
47
STOP SWITCH ASSY
4KB-82530-11-00
Unavailable
48
KEY BLANK (A) 5000-5149
5UG-H2511-09-00
Unavailable
49
KEY BLANK (B) 5150 - 5299
5UG-H2511-19-00
Unavailable
