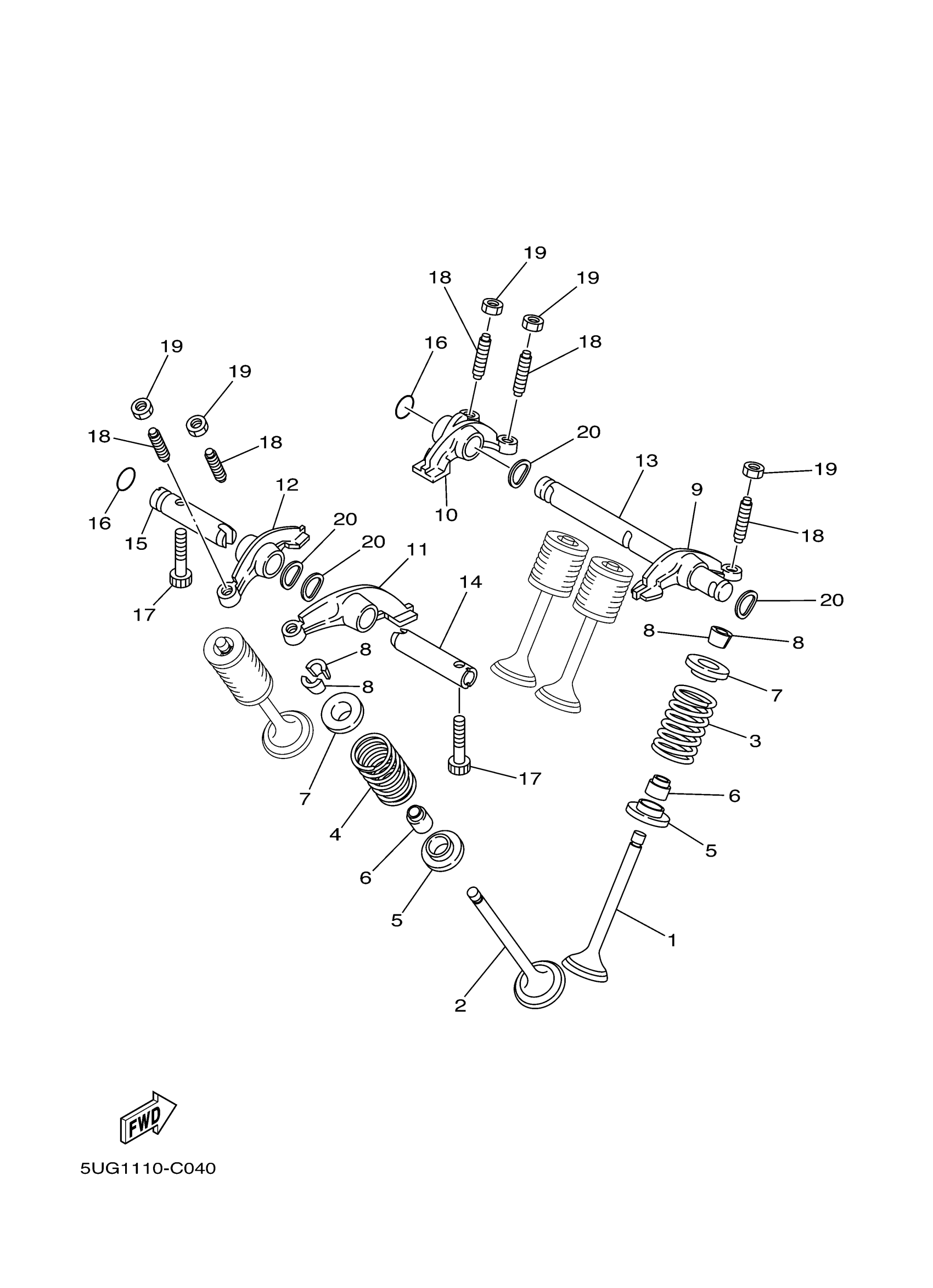

Yamaha YXR66FW (RHINO 660) 5UGL 2007 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

5KM-12111-00-00

$35.99

2

VALVE, EXHAUST

3YF-12121-00-00

$57.99

3

SPRING, VALVE INNER

3YF-12113-00-00

$7.99

4

SPRING, VALVE OUTER

3YF-12114-00-00

$14.49

5

SEAT, VALVE SPRING

3YF-12116-00-00

$8.99

6

SEAL, VALVE STEM

5H0-12119-00-00

$16.49

7

RETAINER, VALVE SPRING

3YF-12117-01-00

$15.49

8

COTTER, VALVE

4G0-12118-00-00

$7.99

9

ARM, VALVE ROCKER

3YF-12151-00-00

Unavailable

10

ARM, VALVE ROCKER 2

3YF-12161-00-00

$68.99

11

ARM, VALVE ROCKER 3

3YF-12162-00-00

$51.99

12

ARM, VALVE ROCKER 4

3YF-12163-00-00

$48.99

13

SHAFT, ROCKER

3YF-12146-00-00

Unavailable

14

SHAFT, ROCKER 2

2NX-12156-00-00

Unavailable

15

SHAFT, ROCKER 3

3YF-12166-00-00

Unavailable

16

O-RING (5Y1)

93210-08521-00

Unavailable

17

BOLT

90109-063E8-00

Unavailable

18

SCREW, VALVE ADJUSTING

2NX-12159-00-00

Unavailable

19

NUT HEXAGON 371121580000

90170-06128-00

Unavailable

20

WASHER, WAVE (17W)

90206-12074-00

Unavailable
