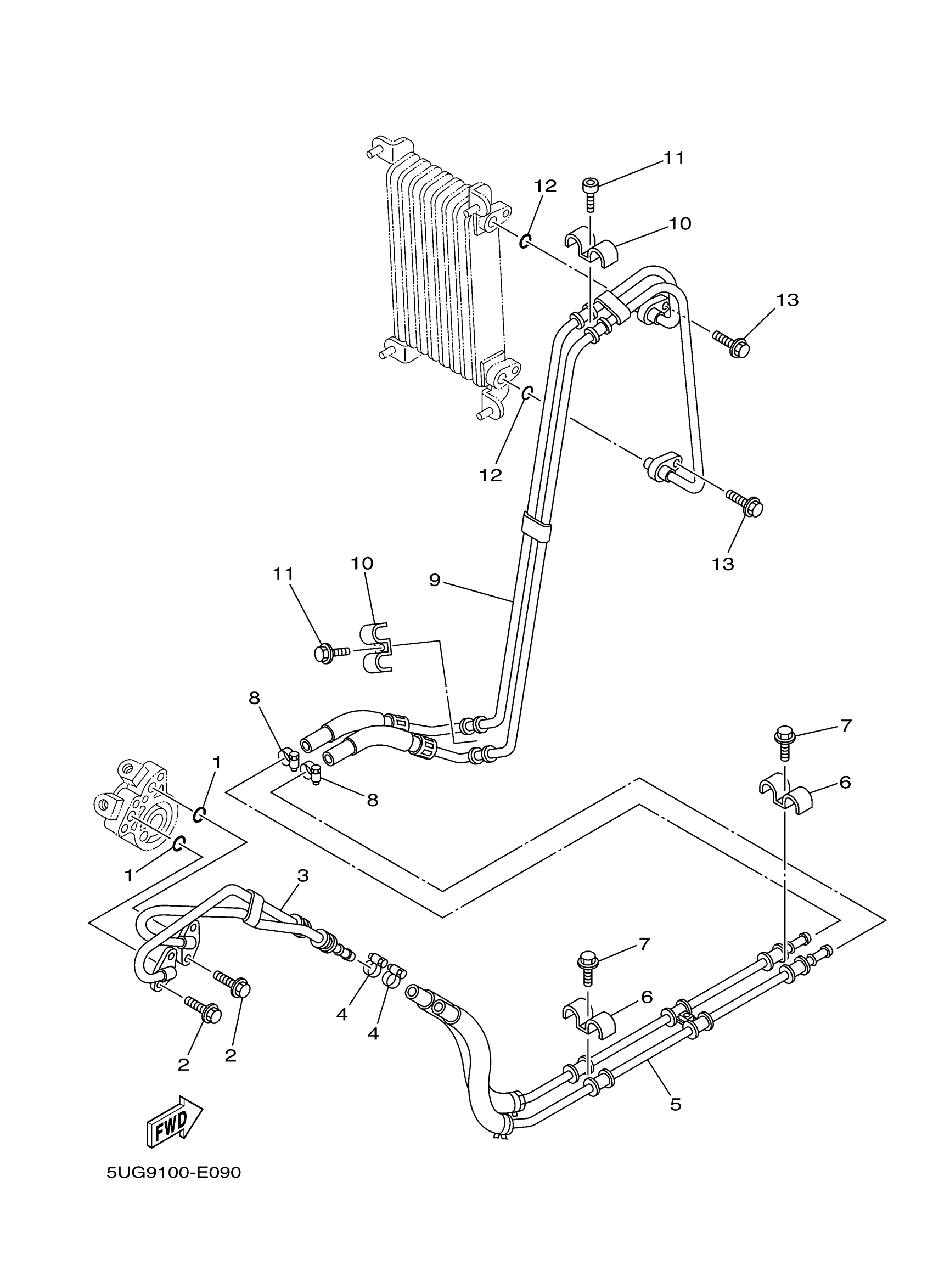

Yamaha YXR66FW (RHINO 660) 5UGL 2007 OIL PIPE Diagram

#

Description

Price

1

O-RING (371)

93210-10197-00

$7.49

2

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

3

PIPE, OIL 1

5UG-E3416-00-00

Unavailable

4

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

5

OIL PIPE COMP. 2

5UG-E3406-01-00

Unavailable

6

CLAMP

90462-15800-00

Unavailable

7

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$2.13

8

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

9

OIL PIPE COMP. 1

5UG-E3405-00-00

Unavailable

10

CLAMP

90462-15800-00

Unavailable

11

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$2.13

12

O-RING

93210-11M59-00

Unavailable

13

BOLT, FLANGE

95817-06020-00

$3.81
