Description

Price

1

PIPE, EXHAUST 1

5UG-E4611-01-00

Unavailable

2

NUT (22U)

90179-08410-00

$9.49

3

GASKET, EXHAUST PIPE

3YF-14613-01-00

$13.49

4

MUFFLER ASSY 1

5UG-E4710-01-00

Unavailable

5

. PIPE, OUTLET

5UG-E4752-00-00

Unavailable

6

BOLT,SOCKET

91380-06010-00

$8.49

7

. BOLT

5UG-E4777-00-00

Unavailable

8

WASHER

5ND-E4759-00-00

$6.49

9

. GASKET, SILENCER

5UG-E4755-00-00

Unavailable

10

STAY, EXHAUST PIPE

5UG-E4639-00-00

$10.99

11

BOLT, FLANGE

95817-06020-00

$3.81

12

WASHER, PLATE (8K2)

90201-06778-00

$4.46

13

DAMPER, MUFFLER

5UG-14737-00-00

$16.49

14

COLLAR (36R)

90387-066J1-00

$8.49

15

WASHER, PLATE 8221447500

90201-06057-00

$5.60

16

WASHER, PLATE

90201-05016-00

Unavailable

17

BOLT, FLANGE

95817-06035-00

Unavailable

18

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

19

MUFF STAY SUB-KUMI

5UG-F1440-00-00

Unavailable

20

DAMPER,FOOTREST

1HP-F7414-00-00

Unavailable

21

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

22

WASHER (29L)

90209-08249-00

Unavailable

23

BOLT, FLANGE

95817-08040-00

Unavailable

24

WASHER, PLATE

90201-07008-00

Unavailable

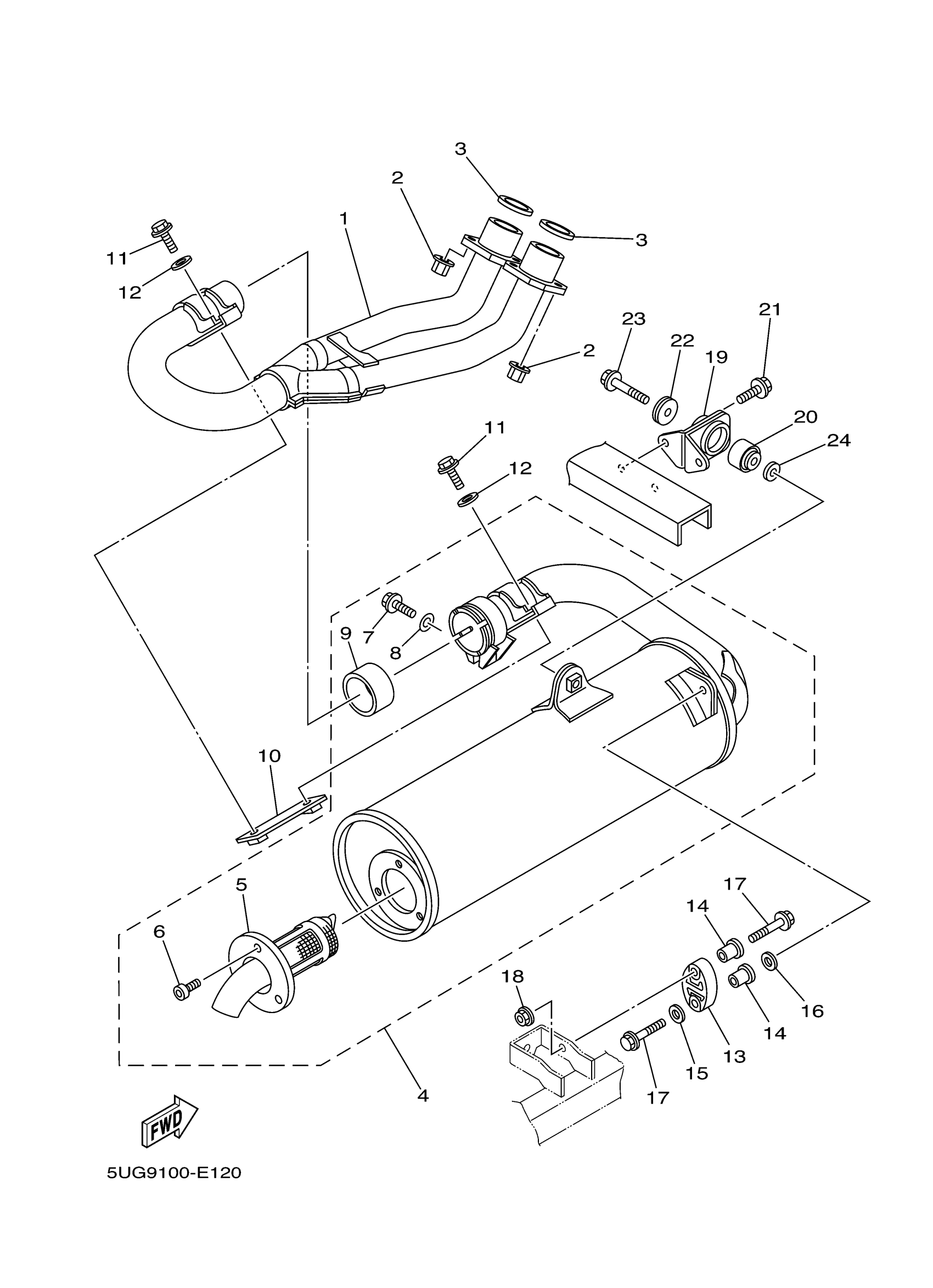

Yamaha YXR66FW (RHINO 660) 5UGL 2007 EXHAUST Diagram

PIPE, EXHAUST 1

NUT (22U)

GASKET, EXHAUST PIPE

MUFFLER ASSY 1

. PIPE, OUTLET

BOLT,SOCKET

. BOLT

WASHER

. GASKET, SILENCER

STAY, EXHAUST PIPE

BOLT, FLANGE

WASHER, PLATE (8K2)

DAMPER, MUFFLER

COLLAR (36R)

WASHER, PLATE 8221447500

WASHER, PLATE

BOLT, FLANGE

NUT, FLANGE(4MV)

MUFF STAY SUB-KUMI

DAMPER,FOOTREST

BOLT, FLANGE(JN5)

WASHER (29L)

BOLT, FLANGE

WASHER, PLATE
