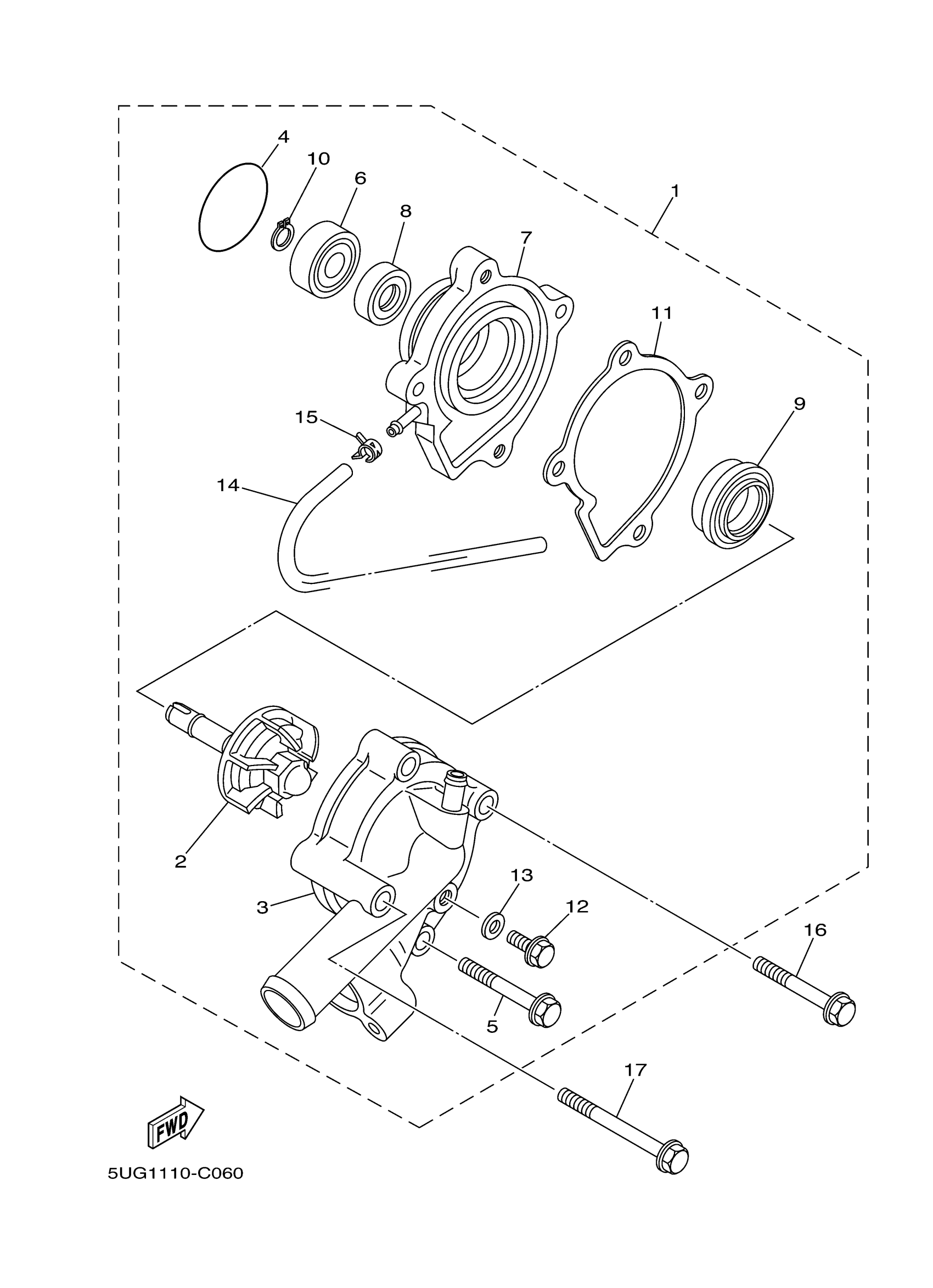

Yamaha YXR66FSPW (RHINO 660 4WD SPORT EDITION) 5UGJ 2007 WATER PUMP Diagram

WATER PUMP ASSY

5KM-12420-10-00

$295.99

IMPELLER SHAFT ASSY

5KM-12450-10-00

$89.99

. COVER, HOUSING

5KM-12422-00-00

Unavailable

O-RING (626)

93210-33133-00

$2.92

. BOLT, FLANGE

90105-06023-00

Unavailable

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

. HOUSING, WATER PUMP

5KM-12421-00-00

Unavailable

OIL SEAL (J10)

93101-10090-00

$8.49

SEAL, MECHANICAL

11H-12438-10-00

$62.99

CIRCLIP(10W)

99009-10400-00

$4.73

GASKET, HOUSING COVER 2

5KM-12428-00-00

$7.99

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

GASKET 256113960000

90430-06014-00

Unavailable

HOSE(7FK)

90446-04254-00

$8.49

CLIP

90467-06194-00

$2.34

BOLT, SMALL FLANGE

95027-06045-00

Unavailable

BOLT, SMALL FLANGE

95027-06065-00

Unavailable
