Description

Price

1

SHAFT, SECONDARY

5UG-17681-00-00

Unavailable

2

BEARING (7X9)

93306-20327-00

$38.99

3

BEARING(2HR)

93306-00612-00

$47.99

4

COLLAR

90387-26001-00

$40.99

5

O-RING

93210-26001-00

$5.60

6

OIL SEAL

93102-42004-00

$30.99

7

DRIVE AXLE ASSY

5KM-17402-01-00

Unavailable

8

WASHER PLATE 168171160000

90201-20278-00

$10.49

9

. BEARING

93310-420F2-00

Unavailable

10

SPROCKET, DRIVEN

5KM-17453-00-00

Unavailable

11

WASHER PLATE 168171160000

90201-20278-00

$10.49

12

CIRCLIP (525)

93410-20038-00

$3.76

13

GEAR, MIDDLE DRIVE (21T)

5UG-17582-00-00

Unavailable

14

COLLAR(1UX)

90387-250R3-00

$30.99

15

GEAR, HIGH WHEEL (28T)

5KM-17223-00-00

Unavailable

16

WASHER 434172160000

90209-22082-00

Unavailable

17

CIRCLIP (4L0)

93440-25084-00

Unavailable

18

CLUTCH, DOG

5KM-17285-00-00

Unavailable

19

GEAR, LOW WHEEL

5UG-17233-00-00

Unavailable

20

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

21

BRG, R-B (7H4)

93306-20211-00

Unavailable

22

BEARING (30X)

93306-20332-00

Unavailable

23

CHAIN

94591-54034-00

Unavailable

24

SHAFT

5KM-17523-10-00

Unavailable

25

CIRCLIP (4L0)

93440-25084-00

Unavailable

26

GEAR, MIDDLE DRIVEN

5UG-17583-00-00

Unavailable

27

BRG,R-B 6303 47MM 115G NK

93306-30302-00

Unavailable

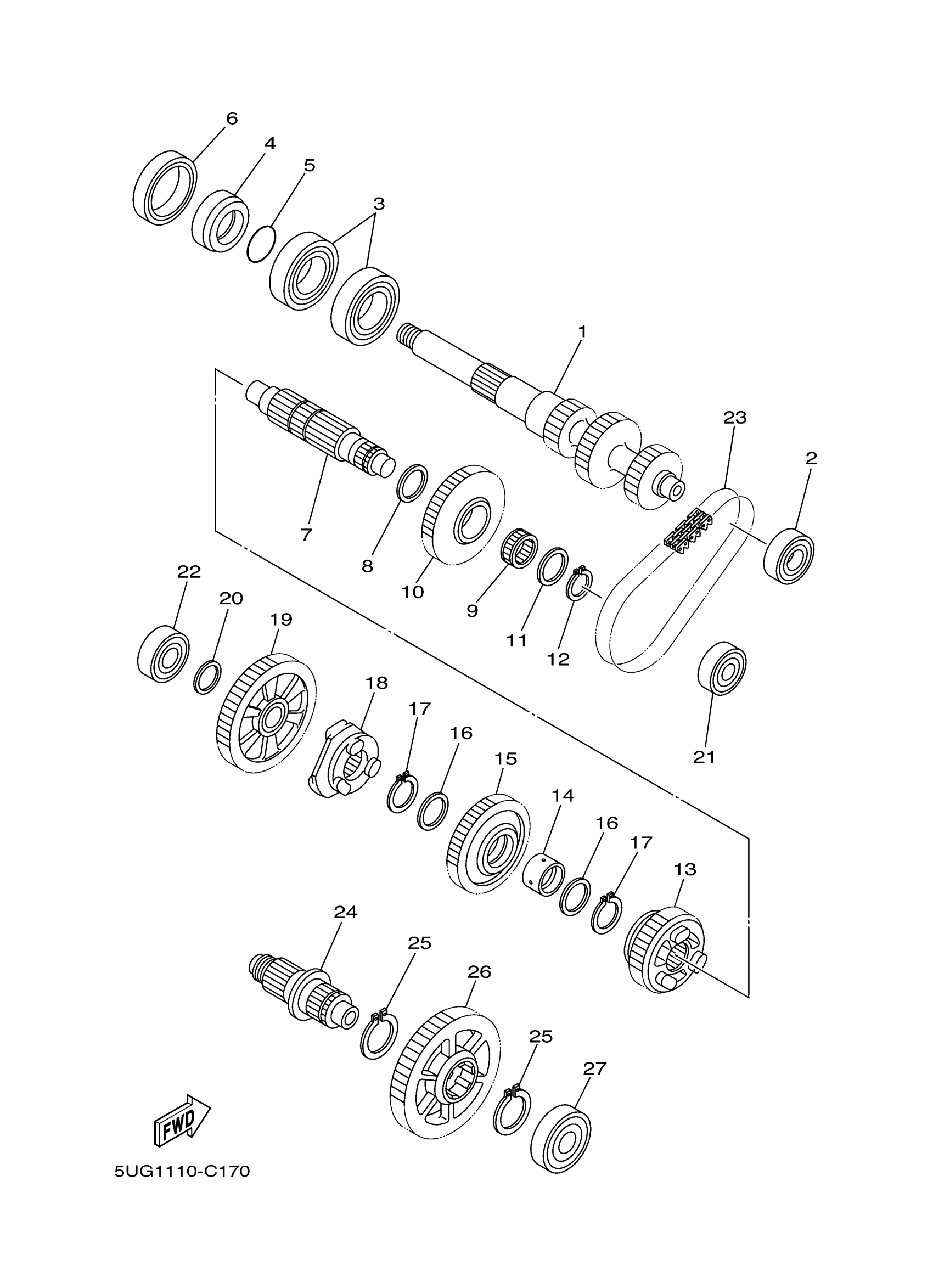

Yamaha YXR66FSPW (RHINO 660 4WD SPORT EDITION) 5UGJ 2007 TRANSMISSION Diagram

SHAFT, SECONDARY

BEARING (7X9)

BEARING(2HR)

COLLAR

O-RING

OIL SEAL

DRIVE AXLE ASSY

WASHER PLATE 168171160000

. BEARING

SPROCKET, DRIVEN

WASHER PLATE 168171160000

CIRCLIP (525)

GEAR, MIDDLE DRIVE (21T)

COLLAR(1UX)

GEAR, HIGH WHEEL (28T)

WASHER 434172160000

CIRCLIP (4L0)

CLUTCH, DOG

GEAR, LOW WHEEL

WASHER, PLATE (30X)

BRG, R-B (7H4)

BEARING (30X)

CHAIN

SHAFT

CIRCLIP (4L0)

GEAR, MIDDLE DRIVEN

BRG,R-B 6303 47MM 115G NK
