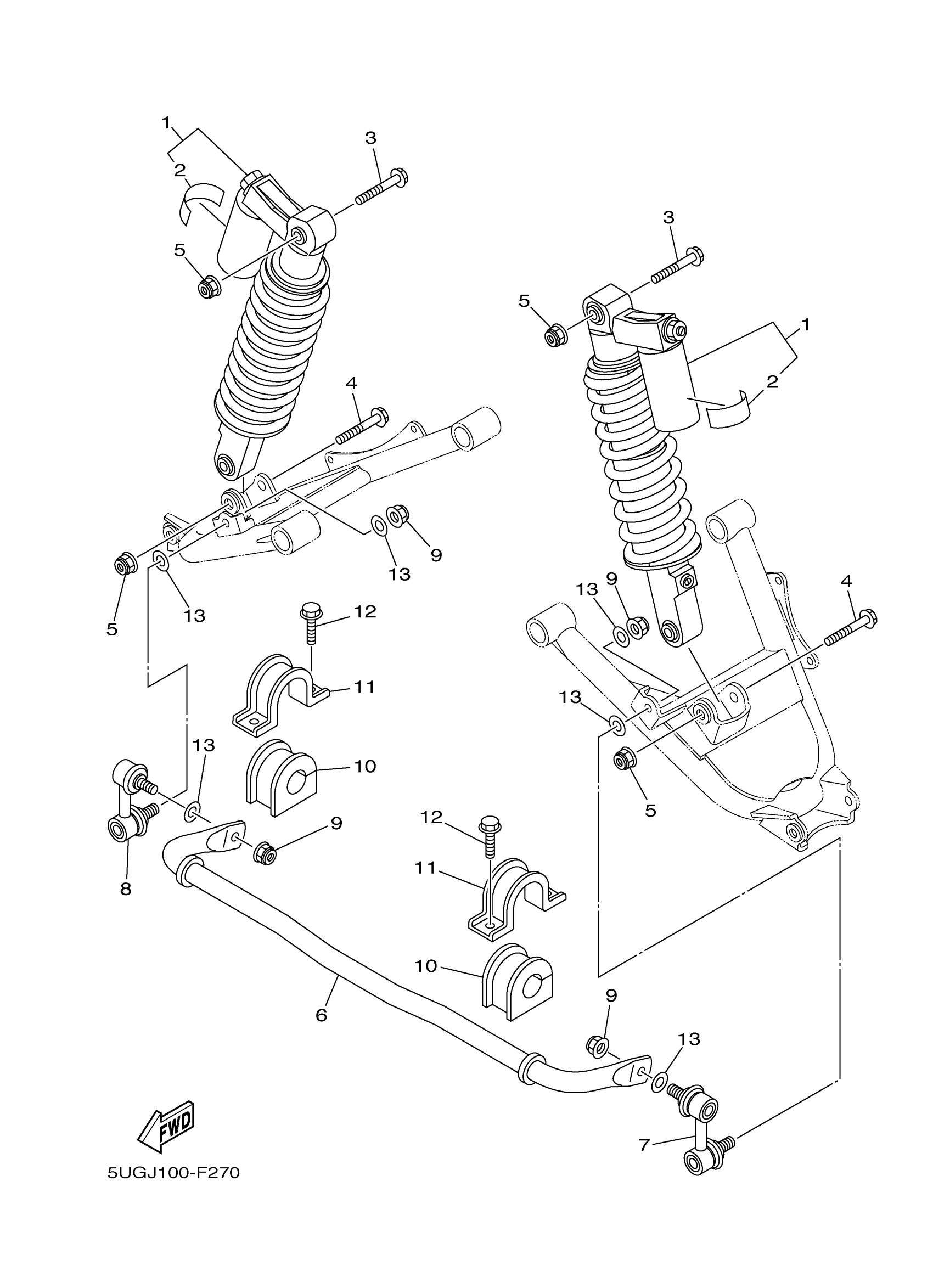

Yamaha YXR66FSPW (RHINO 660 4WD SPORT EDITION) 5UGJ 2007 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

5UG-22210-50-00

Unavailable

2

LABEL, WARNING

4AA-22259-80-00

$11.85

3

BOLT, FLANGE

90105-12037-00

Unavailable

4

BOLT, FLANGE

90105-12036-00

$11.48

5

NUT, SELF LOCKING (1M1)

90185-12072-00

$7.77

6

BAR, STABILIZER

5UG-G7491-00-00

Unavailable

7

JOINT, STABILIZER 1

16B-2385L-10-00

$59.51

8

JOINT, STABILIZER 2

16B-2385M-10-00

$60.41

9

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$5.61

10

BUSH, STABILIZER F

1XD-F386G-00-00

Unavailable

11

COVER, STABILIZER FRONT

5UG-F386H-00-00

Unavailable

12

BOLT, FLANGE

95817-08014-00

$1.81

13

WASHER, PLATE(47X)

90201-101J1-00

$5.75
