- YXR66FSPW (RHINO 660 4WD SPORT EDITION) 5UGJ 2007
FRONT WHEEL 2

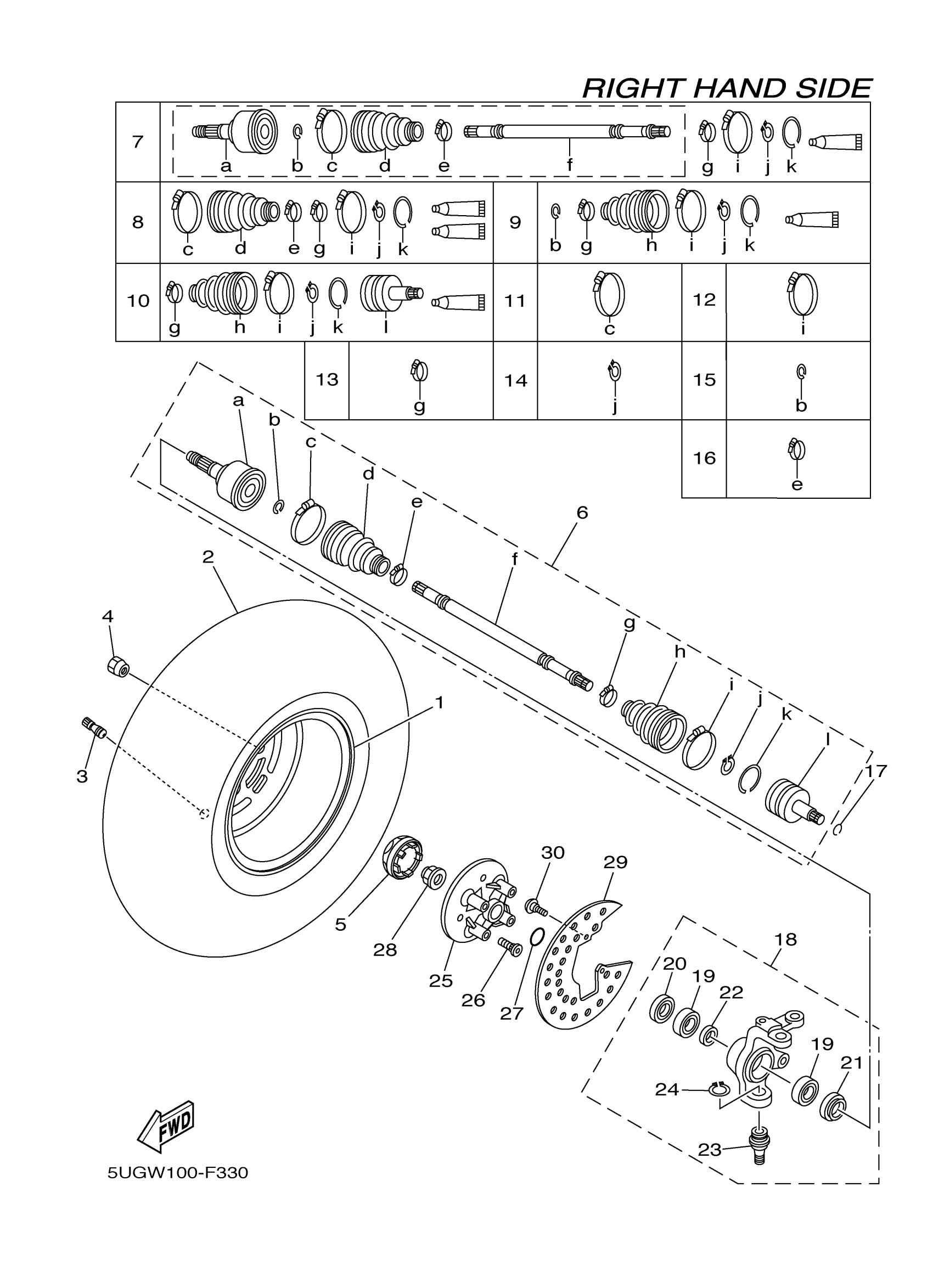

Yamaha YXR66FSPW (RHINO 660 4WD SPORT EDITION) 5UGJ 2007 FRONT WHEEL 2 Diagram
#
1
CAST WHEEL, FRONT
5UG-F5168-00-00
Unavailable
2
TIRE (25X8.00-12 M951Y TL)
94108-12809-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
NUT, CROWN
90176-10803-00
$8.49
5
WHEEL CAP ASSY.
5UG-F530B-00-00
$21.99
6
FRONT DRIVE SHAFT ASSY RH
5UG-F518G-20-00
Unavailable
7
BALL JOINT SET
5UG-F510F-20-00
Unavailable
8
BOOT SET (FRONT BALL JOINT)
5UG-F510G-10-00
$95.99
9
BOOT SET (DOUBLE OFFSET JOINT)
5KM-2510H-10-00
$68.99
10
DOUBLE OFF SET JOINT
5KM-2510J-30-00
Unavailable
11
BOOT BAND (BALL JOINT)
5UG-F511G-00-00
Unavailable
12
. BOOT BAND(DOUBLE OFFSETJOINT)
5UG-F511H-00-00
Unavailable
13
BOOT BAND (SMALL)
3HN-2512G-01-00
$11.99
14
SNAP RING
2HR-2512J-00-00
$6.99
15
CIRCLIP
5UG-F512H-00-00
$8.99
16
BOOT BAND (SMALL)
5UG-F512G-00-00
Unavailable
17
CIRCLIP(2HR)
93450-22119-00
Unavailable
18
STEERING,KNUCKLE (R)
5UG-F3502-12-00
Unavailable
19
BEARING
93306-006Y4-00
Unavailable
20
OIL SEAL
93106-38046-00
Unavailable
21
OIL SEAL
93106-38047-00
Unavailable
22
COLLAR
90387-30008-00
Unavailable
23
BALL JOINT 1
37S-23549-01-00
Unavailable
24
CIRCLIP
93410-32075-00
Unavailable
25
HUB, FRONT
5UG-F5111-10-00
Unavailable
26
BOLT, SERRATION
90114-10016-00
Unavailable
27
O-RING(47X)
93210-27666-00
Unavailable
28
NUT
90179-24003-00
Unavailable
29
RING, WHEEL 1
5UG-F514A-00-00
Unavailable
30
SCREW(3LD)
90149-06280-00
Unavailable
