- YXR66FSPW (RHINO 660 4WD SPORT EDITION) 5UGJ 2007
CLUTCH

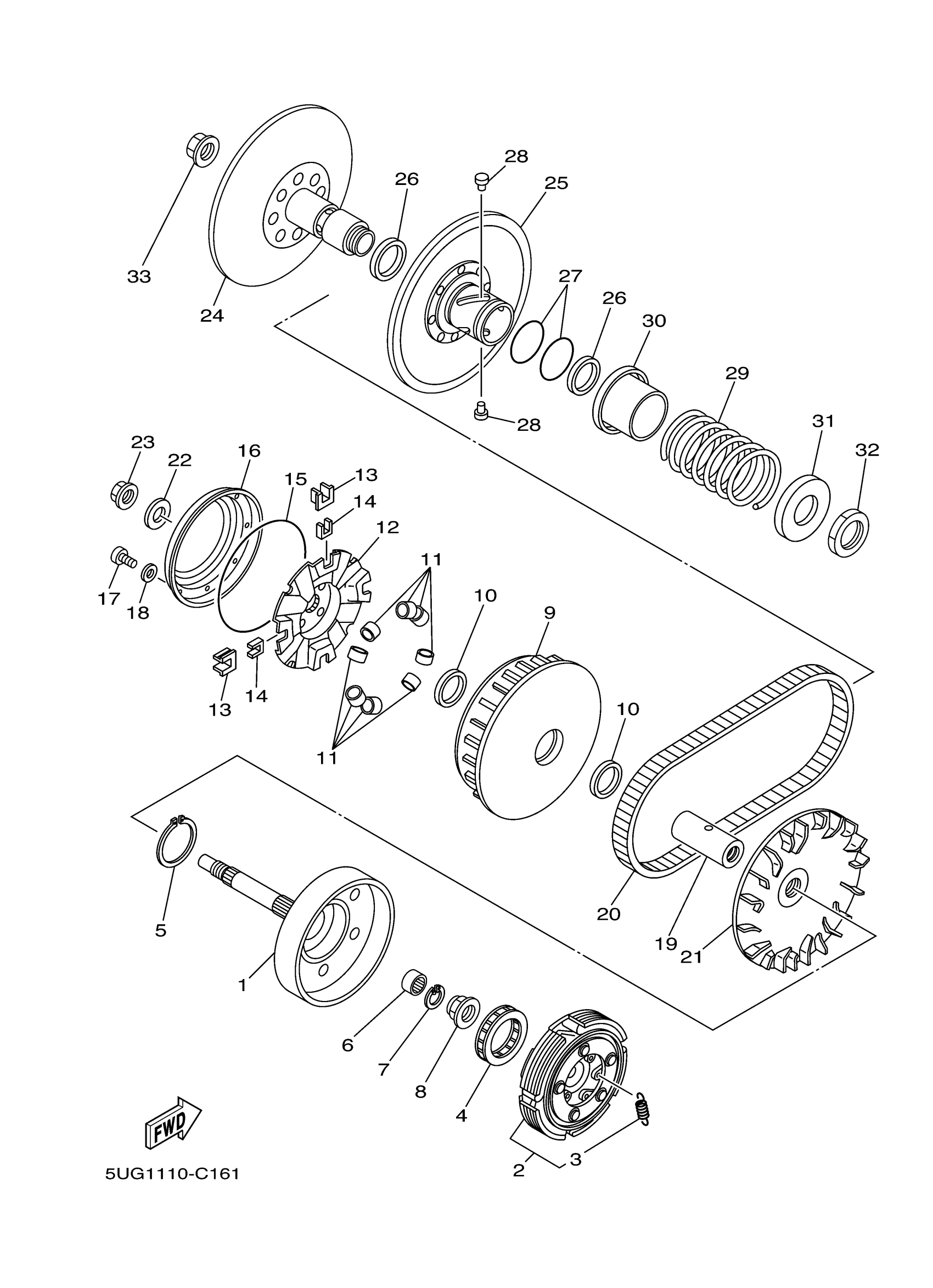

Yamaha YXR66FSPW (RHINO 660 4WD SPORT EDITION) 5UGJ 2007 CLUTCH Diagram
#
1
CLUTCH HOUSING COMP.
5KM-16611-10-00
$424.99
2
CLUTCH CARRIER ASSY
5KM-16620-00-00
$523.99
3
SPRING, CLUTCH WEIGHT 1
5KM-16626-00-00
$7.99
4
BEARING, ONE WAY
4SH-16664-00-00
$154.99
5
CIRCLIP
93410-46079-00
$8.49
6
BRG,CYL-CAL ROLLER 12G KY
93315-21813-00
$36.99
7
CIRCLIP (3G2)
93450-24062-00
$3.81
8
NUT
90179-22005-00
$28.99
9
PRIMARY SLIDING SHEAVE COMP.
5UG-17620-00-00
Unavailable
10
OIL SEAL
93101-35001-00
$21.99
11
WEIGHT
5KM-17632-00-00
$15.49
12
CAM
5KM-17623-00-00
$75.99
13
SLIDER
4WV-17653-00-00
$7.99
14
SPACER 1
4WV-17654-01-00
$6.99
15
O-RING
93211-594A4-00
$25.99
16
STOPPER
4WV-17639-10-00
Unavailable
17
SCREW, PAN HEAD
98517-04012-00
Unavailable
18
WASHER, PLATE(4HC)
90201-047R9-00
Unavailable
19
COLLAR
5KM-17645-00-00
Unavailable
20
V-BELT
5KM-17641-01-00
Unavailable
21
SHEAVE, PRIMARY FIXED
5KM-17611-00-00
Unavailable
22
WASHER, PLATE
90201-190T7-00
Unavailable
23
NUT
90179-16005-00
Unavailable
24
SECONDARY FIXED SHEAVE COMP.
4WV-17660-10-00
Unavailable
25
SECONDARY SLIDING SHEAVE
4WV-17670-00-00
Unavailable
26
OIL SEAL
93104-41119-00
Unavailable
27
O-RING (10L)
93210-44545-00
Unavailable
28
PIN, GUIDE
4CW-17664-00-00
Unavailable
29
SPRING, COMPRESSION
90501-65001-00
Unavailable
30
SEAT, SECONDARY SPRING
4WV-17684-00-00
Unavailable
31
SEAT, SPRING
4WV-17644-00-00
Unavailable
32
NUT (5G3)
90170-36279-00
Unavailable
33
NUT
90179-16005-00
Unavailable
