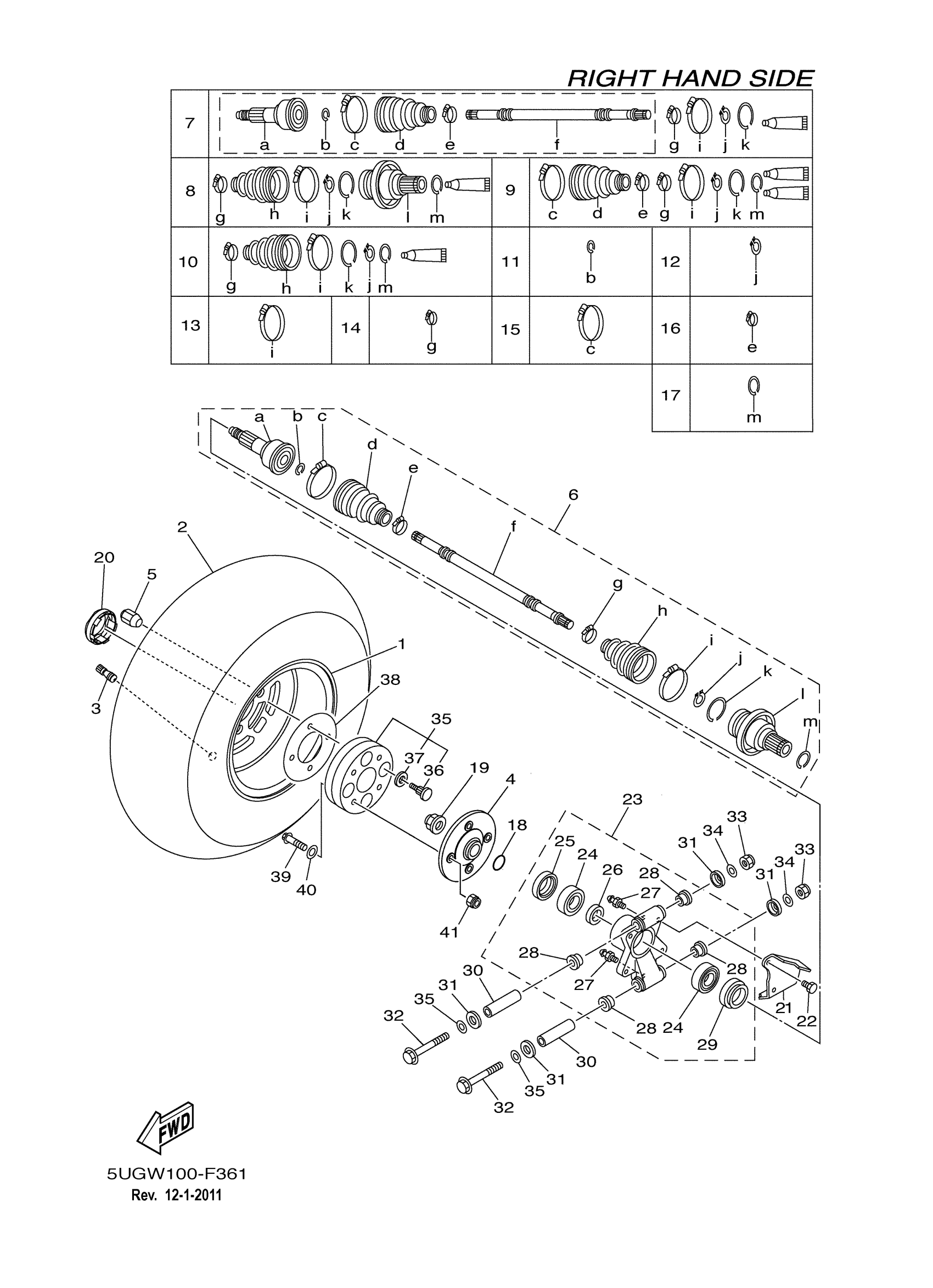

Yamaha YXR66FSEW (RHINO 660 4WD SPECIAL EDITION) 5UGW 2007 REAR WHEEL 2 Diagram

#

Description
Price

1

CAST WHEEL, REAR

5UG-F5307-00-00

Unavailable

2

TIRE (25X10.00-12 M952Y TL)

94110-12805-00

Unavailable

3

VALVE, RIM

93900-00812-00

Unavailable

4

HUB ASSY

5UG-F5310-30-00

Unavailable

5

NUT, CROWN

90176-10803-00

$8.49

6

DRIVE SHAFT ASSY (RIGHT REAR)

5UG-F53B0-21-00

Unavailable

7

BALL JOINT SET

5UG-F530U-20-00

Unavailable

8

DOUBLE OFF SET JOINT RIGHT

5UG-F530W-02-00

Unavailable

9

BOOT SET (BALL JOINT)

5UG-F530X-01-00

Unavailable

10

BOOT SET (DOUBLE OFF)

5UG-F530Y-01-00

Unavailable

11

CIRCLIP

5UG-F512H-00-00

$8.99

12

. SNAP RING

5UG-F512J-00-00

Unavailable

13

. BOOT BAND(DOUBLE OFFSETJOINT)

5UG-F511H-00-00

Unavailable

14

BOOT BAND (SMALL)

5UG-F512G-00-00

Unavailable

15

BOOT BAND (BALL JOINT)

5UG-F511G-00-00

Unavailable

16

. BOOT BAND (SMALL)

5UG-F510U-00-00

Unavailable

17

CLIP, SPRING

5KM-2536E-10-00

Unavailable

18

O-RING(47X)

93210-27666-00

Unavailable

19

NUT

90179-24003-00

Unavailable

20

WHEEL CAP ASSY.

5UG-F530B-00-00

Unavailable

21

MUD GUARD 2

5UG-F2328-00-00

Unavailable

22

BOLT(3KJ)

90109-063F1-00

Unavailable

23

REAR KNUCKLE ASSY

5UG-F530F-11-00

Unavailable

24

BEARING

93306-206Y2-00

Unavailable

25

OIL SEAL

93106-42800-00

Unavailable

26

COLLAR

90387-30008-00

Unavailable

27

NIPPLE, GREASE

93700-06M03-00

Unavailable

28

BUSH, SOLID(2NL)

90381-17067-00

Unavailable

29

OIL SEAL

93106-38800-00

Unavailable

30

SPACER

5KM-23448-00-00

Unavailable

31

COVER, THRUST 1

5UG-23517-10-00

Unavailable

32

BOLT, WASHER BASED(1KT)

90105-10409-00

Unavailable

33

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

34

WASHER, PLATE(47X)

90201-101J1-00

Unavailable

35

SPACER ASSY

42S-F53W0-00

Unavailable

36

BOLT, SERRATION

90114-10013-00

Unavailable

37

WASHER, PLATE

90201-12034-00

Unavailable

38

PLATE 1

5UG-2539F-00-00

Unavailable

39

BOLT, FLANGE

90105-12062-00

Unavailable

40

WASHER, PLATE

90201-14020-00

Unavailable

41

NUT, SELF-LOCKING

90185-12007-00

Unavailable
