- YXR66FHW (RHINO 660 HUNTER - HARDWOODS HD CAMO) 5UGR 2007
FUEL TANK

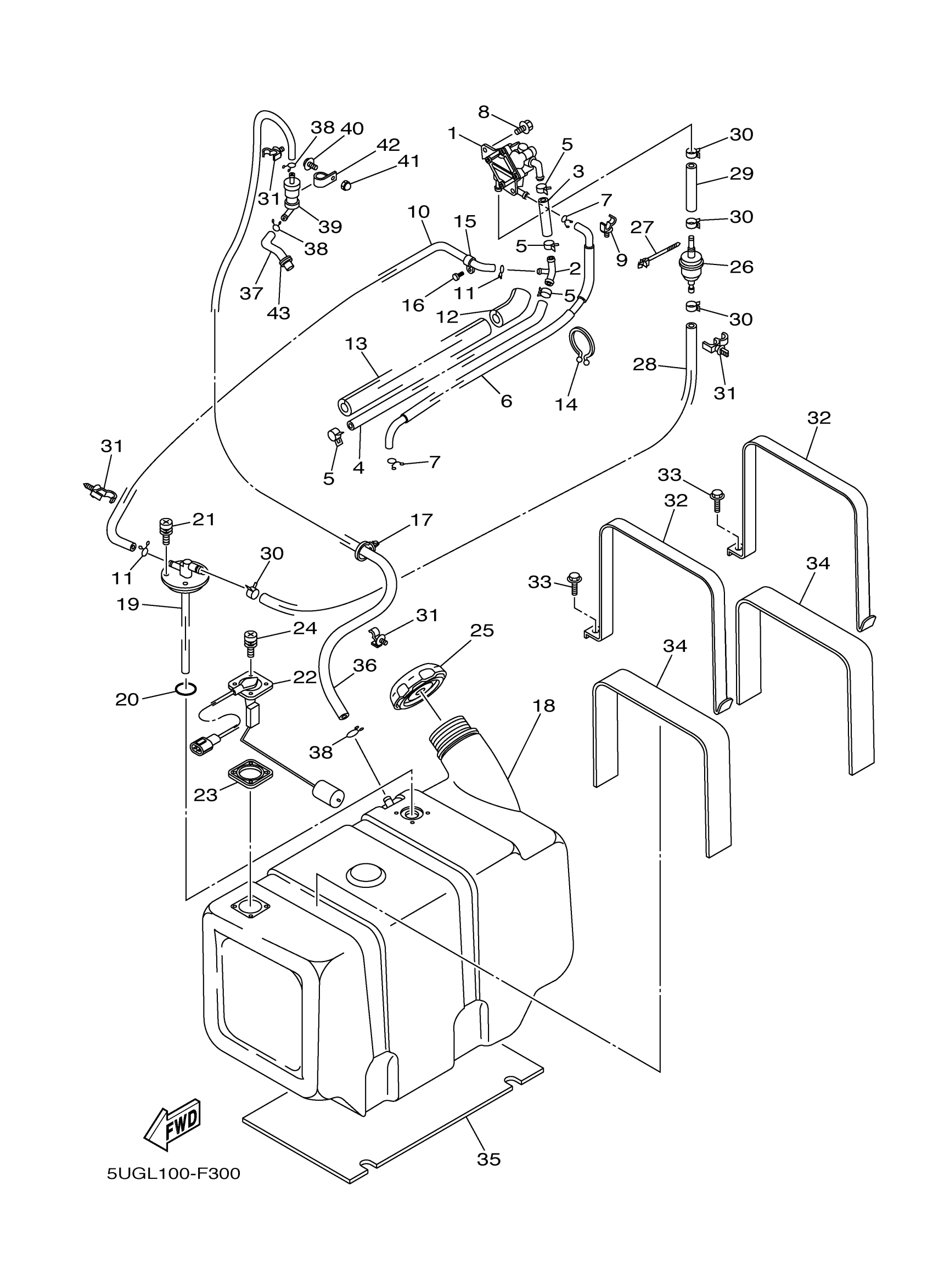

Yamaha YXR66FHW (RHINO 660 HUNTER - HARDWOODS HD CAMO) 5UGR 2007 FUEL TANK Diagram
#
1
FUEL PUMP ASSY
5UG-13910-01-00
$122.99
2
WAY 3
90413-09001-00
Unavailable
3
HOSE
5UG-14294-00-00
$7.99
4
PIPE, FUEL
5UG-14295-00-00
$15.49
5
CLIP (7K7)
90467-11044-00
$8.49
6
HOSE, AIR
5UG-E3895-00-00
Unavailable
7
CLIP
90467-100A1-00
$7.49
8
BOLT, FLANGE
95022-06010-00
$5.60
9
CLAMP
90464-12830-00
$1.49
10
PIPE
5UG-14298-00-00
$20.99
11
CLIP
90467-100A1-00
$7.49
12
INSULATOR
5UG-14271-00-00
$13.49
13
INSULATOR
5UG-14271-50-00
$6.99
14
CLAMP
90464-25267-00
$7.49
15
CLAMP
90464-11803-00
Unavailable
16
PLUG
90338-05834-00
Unavailable
17
CLAMP
90464-25826-00
Unavailable
18
TANK, FUEL
5UG-F4111-10-00
Unavailable
19
FUEL PIPE JOINT
5UG-F4300-10-00
Unavailable
20
O-RING
93210-228C4-00
Unavailable
21
BOLT, WITH WASHER
90119-05071-00
Unavailable
22
SENDER UNIT ASSY, FUEL METER
5UG-85752-01-00
Unavailable
23
GASKET, SENDER UNIT
5G3-85753-00-00
Unavailable
24
BOLT, WITH WASHER
90119-05071-00
Unavailable
25
CAP ASSY
BVG-24610-00-00
Unavailable
26
FILTER ASSY
JN6-F4560-00-00
Unavailable
27
CLAMP
90464-38800-00
Unavailable
28
PIPE, FUEL 1
5UG-F4311-00-00
Unavailable
29
PIPE 3
5UG-F4313-00-00
Unavailable
30
CLIP (7K7)
90467-11044-00
$8.49
31
CLAMP
90464-12830-00
$1.49
32
STAY, FUEL TANK 1
5UG-F4157-00-00
Unavailable
33
BOLT, FLANGE
90105-08879-00
Unavailable
34
DAMPER, PLATE 1
5UG-F414H-00-00
Unavailable
35
DAMPER, PLATE 2
5UG-F414J-00-00
Unavailable
36
PIPE 4
5UG-F4314-00-00
Unavailable
37
PIPE 2
5UG-F4312-00-00
Unavailable
38
CLIP
90467-100A1-00
$7.49
39
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
40
SCREW, BINDING
98907-05010-00
Unavailable
41
NUT, CROWN(47X)
90176-05054-00
Unavailable
42
CLAMP
90464-15014-00
Unavailable
43
GROMMET (1E6)
90480-15058-00
Unavailable
