- YXR66FHW (RHINO 660 HUNTER - HARDWOODS HD CAMO) 5UGR 2007
CYLINDER HEAD

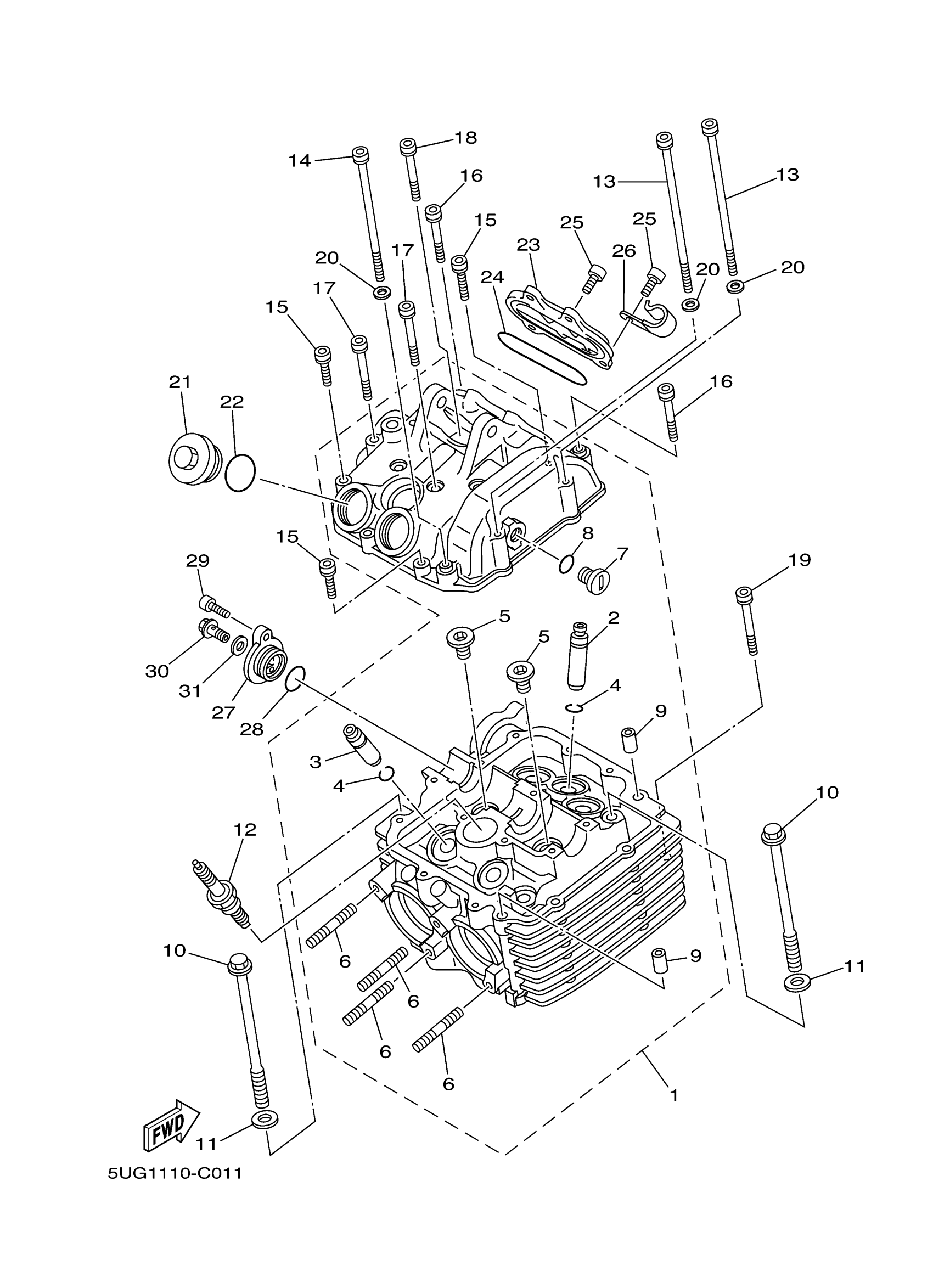

Yamaha YXR66FHW (RHINO 660 HUNTER - HARDWOODS HD CAMO) 5UGR 2007 CYLINDER HEAD Diagram
#
1
CYLINDER HEAD ASSY
5KM-11101-01-00
$1,371.99
2
GUIDE, INTAKE VALVE
5KM-11133-10-00
$75.99
3
GUIDE, EXHAUST VALVE
5KM-11134-10-00
$75.99
4
CIRCLIP (4G0)
93440-10085-00
$8.49
5
PLUG, STRAIGHT SCREW (33M)
90340-18101-00
$11.49
6
BOLT, STUD 3
95617-08625-00
$8.49
7
PLUG, STRAIGHT SCREW(2HT)
90340-14117-00
$14.99
8
O-RING(36Y)
93210-13657-00
$7.49
9
PIN, DOWEL(2VG)
99530-10116-00
$4.25
10
BOLT, WASHER BASED(3YF)
90105-09648-00
$21.99
11
WASHER, PLATE(1AA)
90201-096J9-00
$4.41
12
DPR8EA-9 NGK 10PK
DPR-8EA90-00-00
Unavailable
13
BOLT,SOCKET
91317-06130-00
$9.49
14
BOLT,SOCKET
91317-06115-00
Unavailable
15
BOLT,SOCKET
91317-06025-00
$5.60
16
BOLT,SOCKET
91317-06040-00
Unavailable
17
BOLT,SOCKET
91317-06055-00
Unavailable
18
BOLT(2NX)
90109-063E9-00
Unavailable
19
BOLT,SOCKET
91317-06050-00
Unavailable
20
WASHER(6TA)
92907-06600-00
Unavailable
21
COVER, CYLINDER HEAD SIDE
1L9-11186-00-00
Unavailable
22
O-RING (341)
93210-32172-00
Unavailable
23
COVER, CYLINDER HEAD SIDE 3
3YF-11187-00-00
Unavailable
24
O-RING (2H7)
93210-71360-00
Unavailable
25
BOLT,SOCKET
91317-06018-00
Unavailable
26
CLAMP
90462-20003-00
Unavailable
27
CAP, TENSIONER CASE
3TB-12215-01-00
Unavailable
28
O-RING (5Y1)
93210-19522-00
Unavailable
29
BOLT,SOCKET
91317-06020-00
Unavailable
30
BOLT UNION 137131650000
90401-06001-00
Unavailable
31
GASKET (4V2)
90430-06166-00
Unavailable
