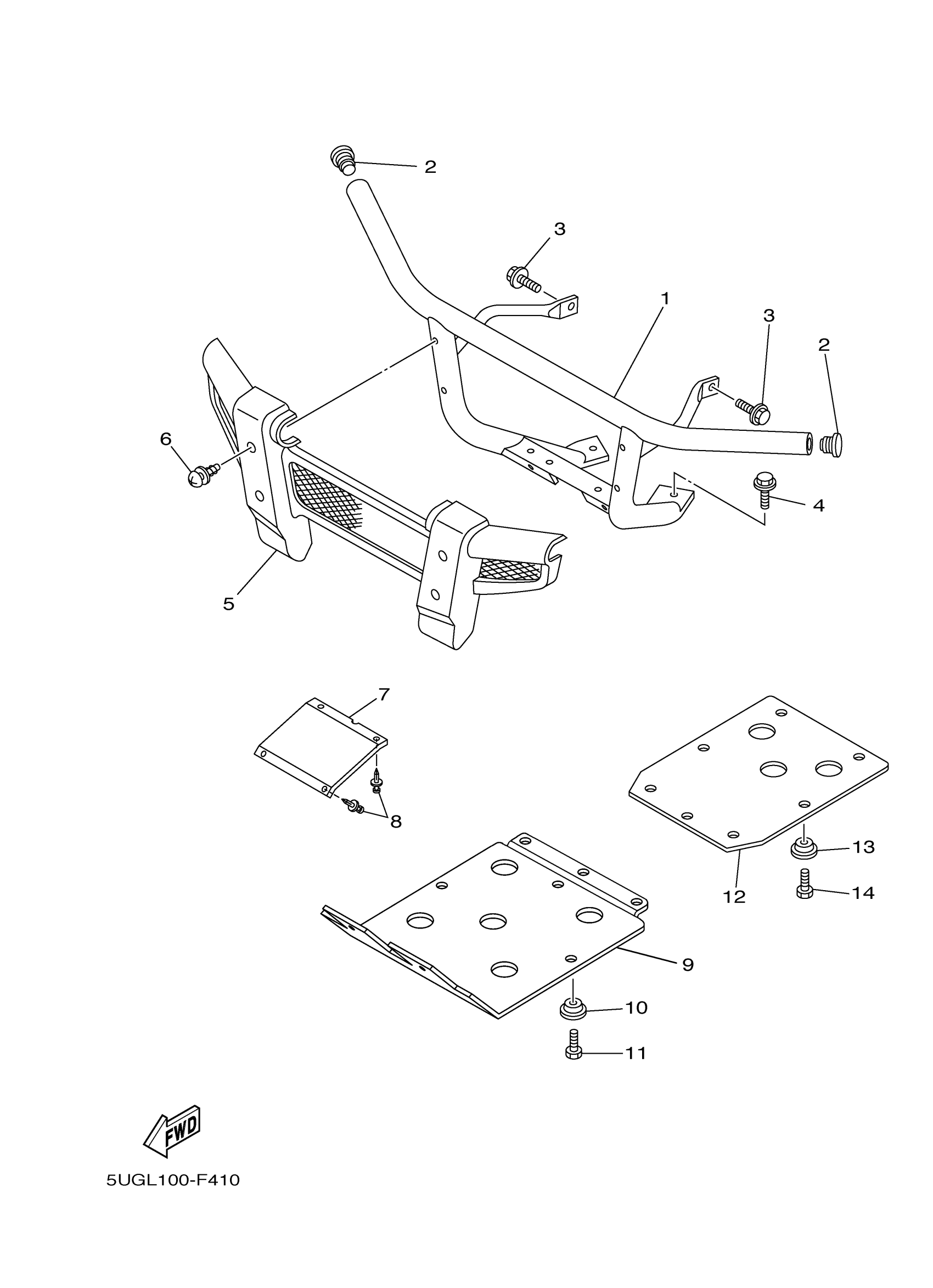

Yamaha YXR66FEXW (RHINO 660 4WD EXPLORING EDITION - HUNTER GREEN) 5UGL 2007 GUARD Diagram

#

Description

Price

1

BAR, CARRY FRONT, WRINKLE BLK

1RB-F845N-00-00

Unavailable

2

PLUG (FRONT BUMPER)

5UG-F2417-00-00

$4.96

3

BOLT, FLANGE

95817-10020-00

$4.89

4

BOLT, FLANGE

9581P-12025-00

Unavailable

5

COVER 5

5UG-F842A-00-00

$40.00

6

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

7

COVER, COOLER

5UG-F835L-00-00

Unavailable

8

RIVET

90269-06800-00

$1.35

9

COVER,LOWER

2P5-F8385-01-00

$80.99

10

SPACER

5UG-F8329-01-00

$5.42

11

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$0.93

12

COVER,UNDER 2

5UG-F8395-01-00

$83.99

13

SPACER

5UG-F8329-01-00

$5.42

14

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$0.93
