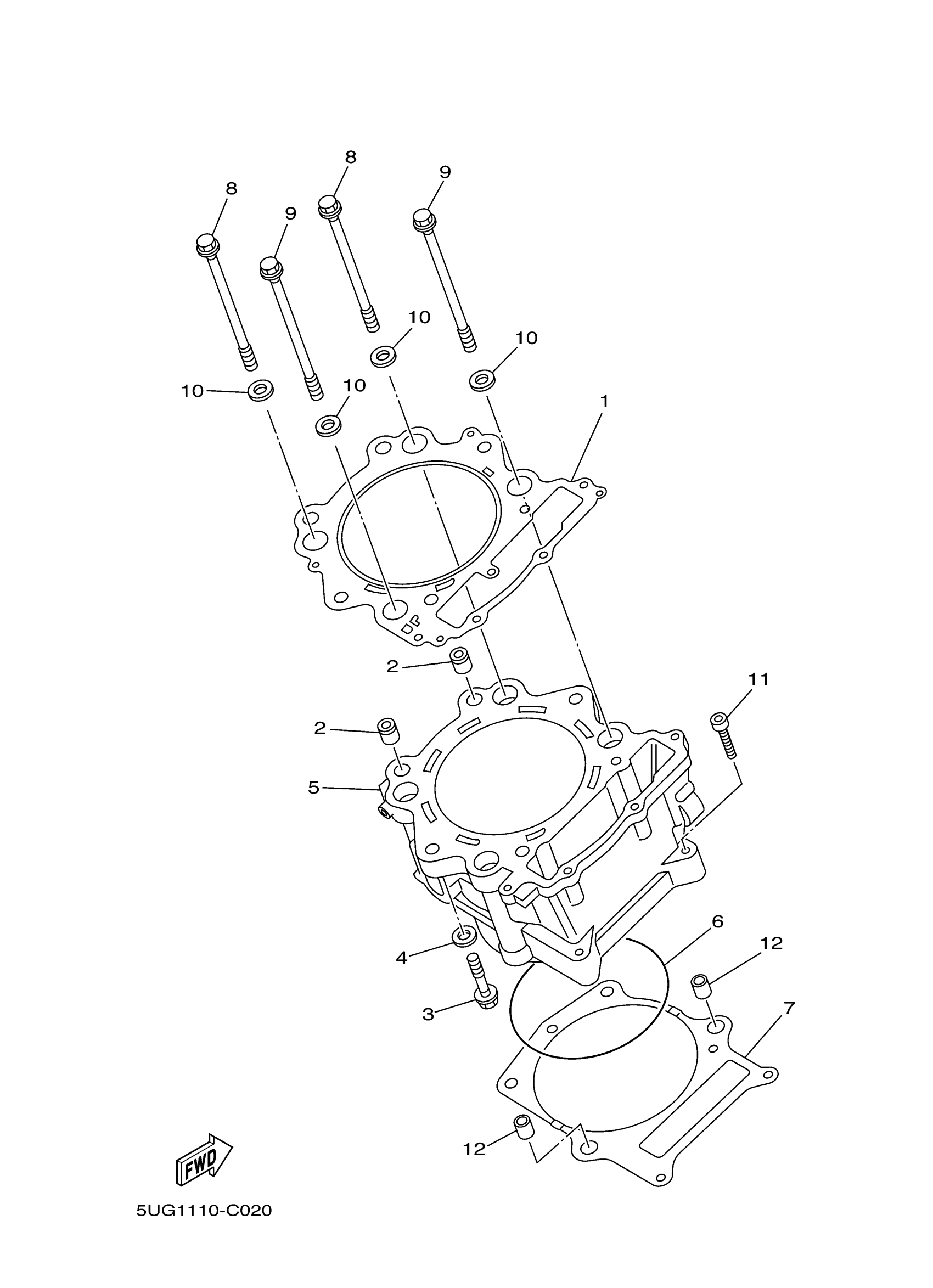

Yamaha YXR66FEXW (RHINO 660 4WD EXPLORING EDITION - HUNTER GREEN) 5UGL 2007 CYLINDER Diagram

#

Description
Price

1

GASKET, CYLINDER HEAD 1

3YF-11181-00-00

$80.99

2

PIN, DOWEL(4XL)

93612-16254-00

$5.60

3

BOLT, FLANGE

90105-09003-00

Unavailable

4

WASHER, PLATE(1AA)

90201-096J9-00

$4.41

5

CYLINDER

5KM-11310-00-00

$667.99

6

O-RING (5A8)

93211-01467-00

$12.49

7

GASKET, CYLINDER

5KM-11351-00-00

$27.99

8

BOLT, WASHER BASED(3YF)

90105-10649-00

$14.99

9

BOLT, WASHER BASED(3YF)

90105-10650-00

$14.99

10

WASHER, PLATE (26H)

90201-102G9-00

$9.49

11

BOLT,SOCKET

91317-06040-00

$3.76

12

PIN, DOWEL

99530-14016-00

$3.80
