- YXR66FDUW (RHINO 660 DUCKS UNLIMITED EDITION) 5UGU 2007
INTAKE

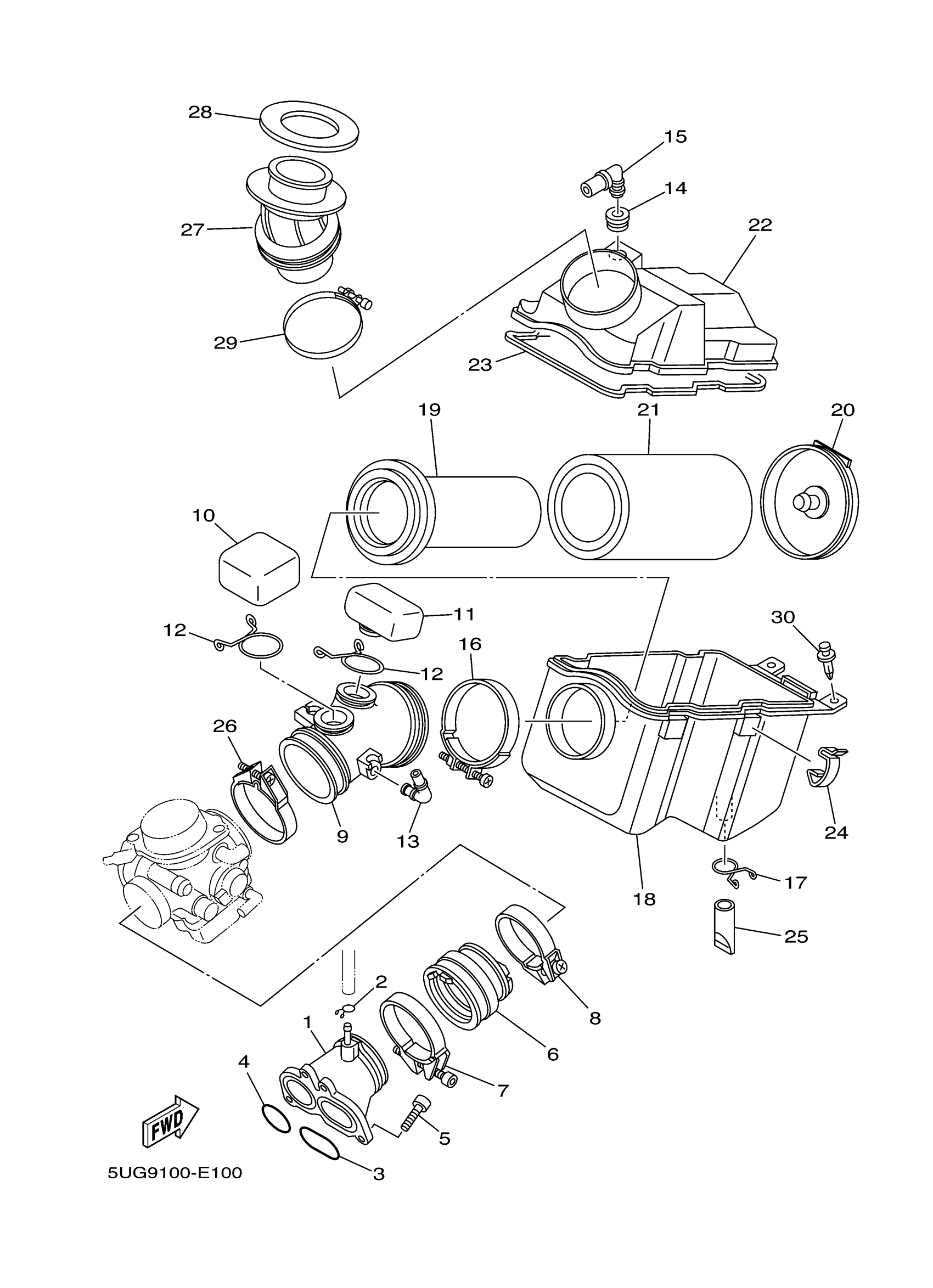

Yamaha YXR66FDUW (RHINO 660 DUCKS UNLIMITED EDITION) 5UGU 2007 INTAKE Diagram
#
1
JOINT, CARBURETOR 1
5UG-13586-00-00
Unavailable
2
CLIP (8L2)
90467-08017-00
$10.49
3
O-RING (10L)
93210-44545-00
$13.49
4
O-RING(4HM)
93210-321A8-00
$5.60
5
BOLT,SOCKET
91317-06020-00
Unavailable
6
JOINT, CARBURETOR 2
5KM-13596-00-00
$63.99
7
CLAMP, HOSE 1
1D6-11387-00-00
$11.99
8
HOSE CLAMP ASSY
90450-62006-00
$12.49
9
JOINT, AIR CLEANER 1
5UG-E4453-10-00
Unavailable
10
CHAMBER, AIR
5UG-E3581-00-00
Unavailable
11
CHAMBER, AIR 2
5UG-E3591-00-00
Unavailable
12
CLIP
5UG-E4137-00-00
Unavailable
13
PIPE
31A-14419-00-00
$7.99
14
GROMMET
31A-14435-01-00
$4.47
15
PIPE
5KM-14419-00-00
Unavailable
16
HOSE CLAMP ASSY
90450-75002-00
Unavailable
17
CLIP, DRAIN CLEANER
5UH-E4438-01-00
Unavailable
18
CASE, AIR CLEANER 1
5UG-E4411-00-00
Unavailable
19
GUIDE (INSIDE AIR FILTER)
5UG-E4458-00-00
Unavailable
20
PLATE,ELEMENT FIT (END CAP)
5UH-E4468-00-00
Unavailable
21
ELEMENT, AIR CLEAN
5UG-E4451-00-00
Unavailable
22
CAP, CLEANER CASE
5UG-E4412-01-00
Unavailable
23
SEAL
5UG-E4462-00-00
Unavailable
24
CLIP, CAP FITTING
5UH-E4424-00-00
Unavailable
25
PIPE, DRAIN
5UG-E4769-00-00
Unavailable
26
HOSE CLAMP ASSY
90450-67002-00
Unavailable
27
DUCT
5UG-E4437-00-00
Unavailable
28
SEAL
5UG-E4476-00-00
Unavailable
29
HOSE CLAMP ASSY
90450-75002-00
Unavailable
30
RIVET
90269-08813-00
Unavailable
