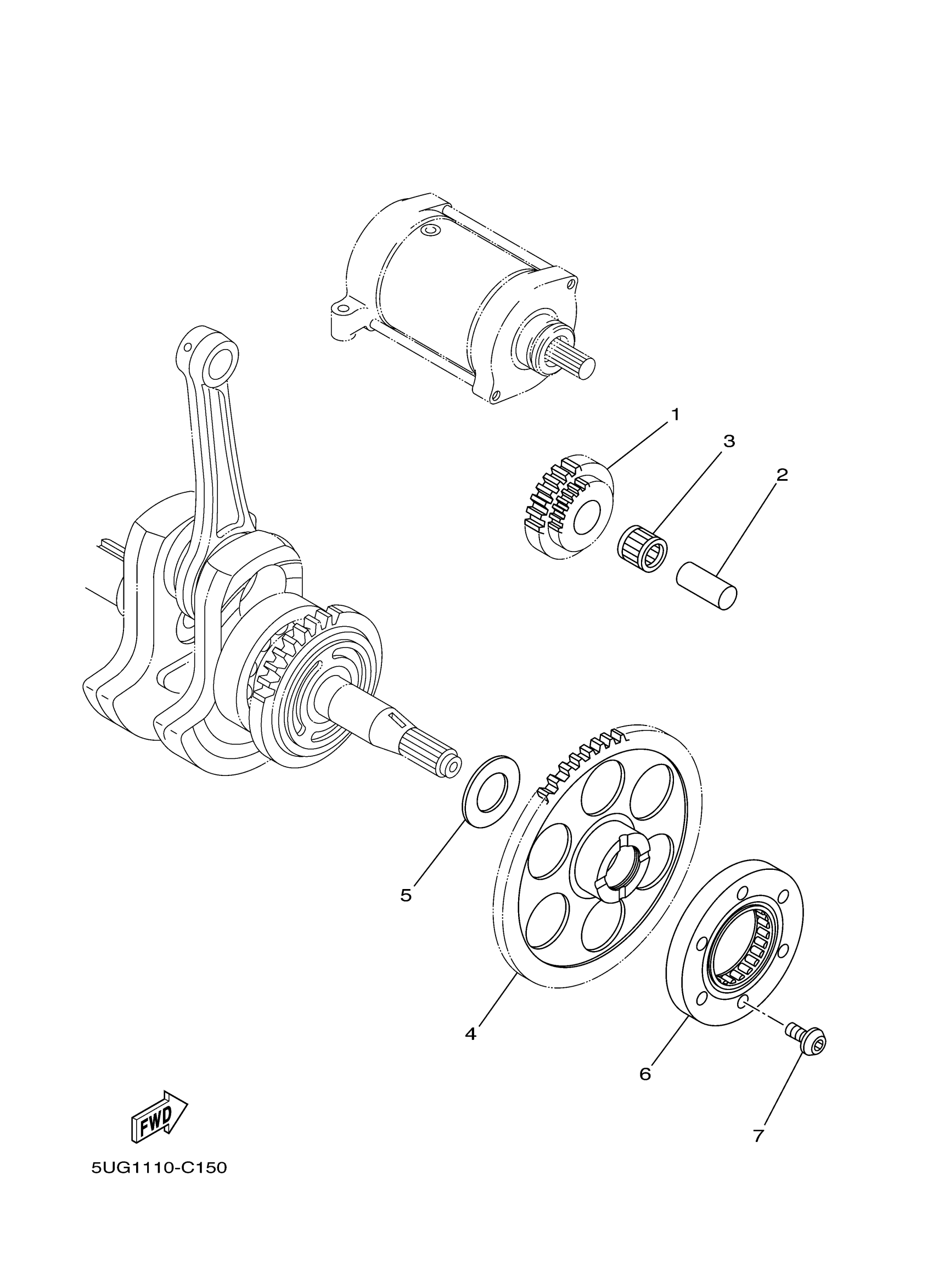

Yamaha YXR66FAVGR (RHINO 660 4WD) 5UG9 2006 STARTER CLUTCH Diagram

#

Description

Price

1

GEAR, IDLER 1

5GH-15512-00-00

$125.95

2

SHAFT 2

5KM-15522-00-00

$14.38

3

BEARING, CYLINDRICAL(1VJ)

93310-212R6-00

$29.50

4

GEAR, IDLER 2

5KM-15517-10-00

$121.80

5

WASHER PLATE 371115580000

90201-25291-00

$8.49

6

STARTER ONE-WAY ASSY

5KM-15590-00-00

$214.85

7

BOLT, SOCKET

91317-08016-00

$5.87
