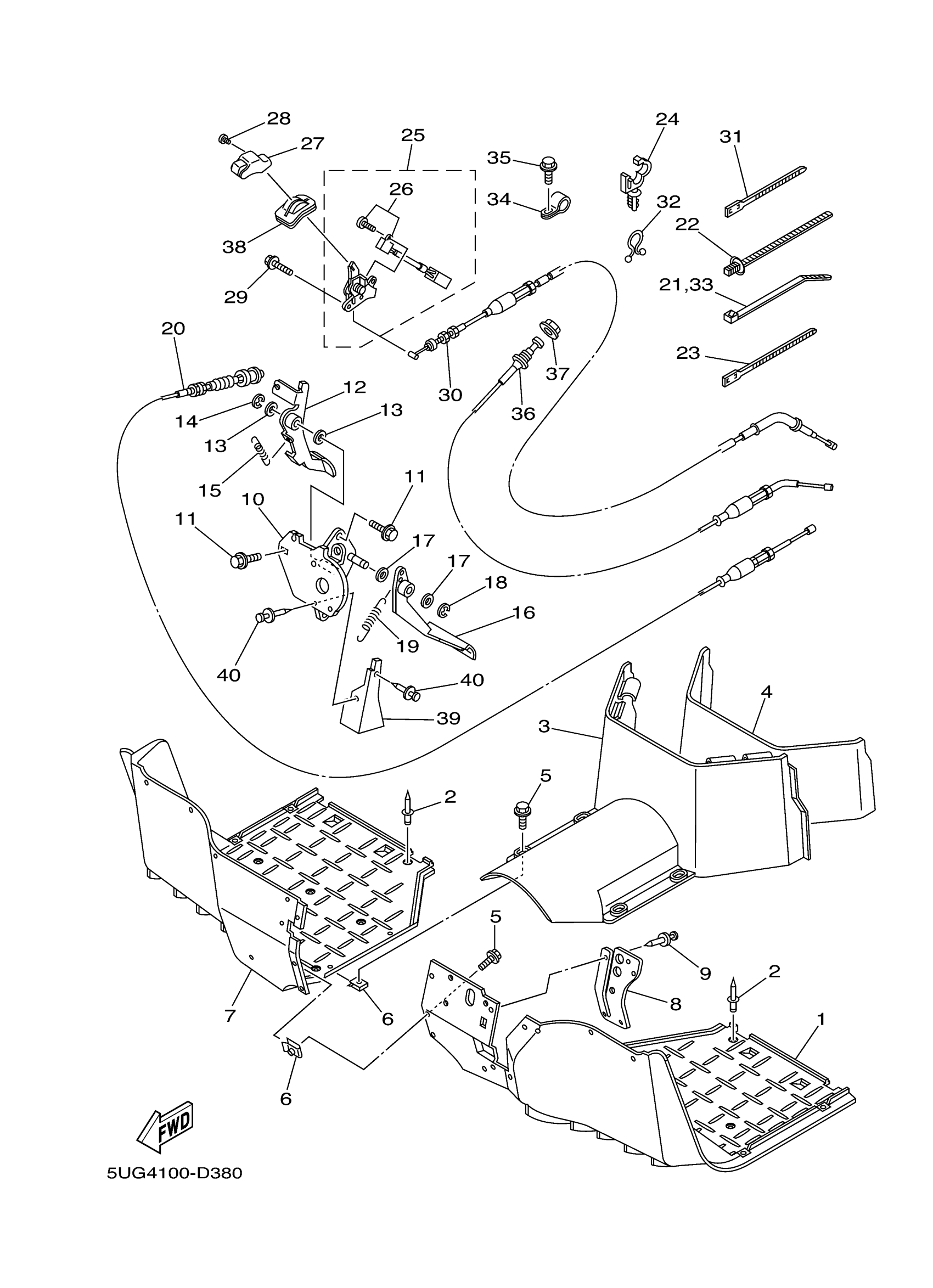

Yamaha YXR66FAVGR (RHINO 660 4WD) 5UG9 2006 STAND FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

5UG-F7411-12-00

Unavailable

2

RIVET, BLIND

90267-48820-00

Unavailable

3

COVER, FOOTREST

5UG-F7413-00-00

Unavailable

4

SEAL 2

5UG-F8228-01-00

$56.05

5

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$2.65

6

NUT, SPRING(4TV)

90183-05073-00

$10.20

7

FOOTREST 2

5UG-F7421-12-00

$90.38

8

COVER, DUST

5UG-F7286-00-00

$7.48

9

RIVET

90269-06800-00

$1.49

10

BRACKET,PEDL SUPRT

5UG-F2548-01-00

Unavailable

11

BOLT, FLANGE(8AB)

95817-08020-00

$5.98

12

ACCEL PEDAL ASSY

5UG-F7801-00-00

Unavailable

13

WASHER, PLATE (3X3)

90201-15797-00

$5.98

14

CIRCLIP (122)

93430-12008-00

$5.27

15

SPRING, TENSION

90506-20009-00

$5.58

16

PEDAL, BRAKE

5UG-F7200-00-00

Unavailable

17

WASHER, PLATE (3X3)

90201-15797-00

$5.98

18

CIRCLIP (122)

93430-12008-00

$5.27

19

SPRING, TENSION

90506-20009-00

$5.58

20

CABLE, THROTTLE 1

5UG-26311-10-00

Unavailable

21

CLAMP

90464-76800-00

Unavailable

22

CLAMP

90464-20005-00

$2.04

23

CLAMP(JN6)

90464-40825-00

Unavailable

24

CLAMP

90464-12830-00

Unavailable

25

PARKING BRAKE COMP.

5UG-F5970-00-00

Unavailable

26

. SWITCH COMP

5UG-H251S-00-00

Unavailable

27

KNOB, PARKING LEVER

5UG-F5664-00-00

Unavailable

28

SCREW

5UG-F589H-00-00

Unavailable

29

BOLT, FLANGE

95817-06016-00

Unavailable

30

WIRE, BRAKE 1

5UG-26341-01-00

Unavailable

31

CLAMP(JN6)

90464-31827-00

Unavailable

32

CLAMP (3Y2)

90464-16039-00

Unavailable

33

CLAMP

90464-76800-00

Unavailable

34

CLAMP

90461-08802-00

Unavailable

35

BOLT, FLANGE

90105-06831-00

Unavailable

36

CABLE, STARTER 1

5UG-26331-00-00

Unavailable

37

NUT

JU0-F6333-00-00

$1.76

38

COVER, HANDLE LEVER 1

5UG-F6372-00-00

Unavailable

39

PLATE, SPLASH

5UG-G5158-10-00

Unavailable

40

RIVET

90269-06800-00

$1.49
