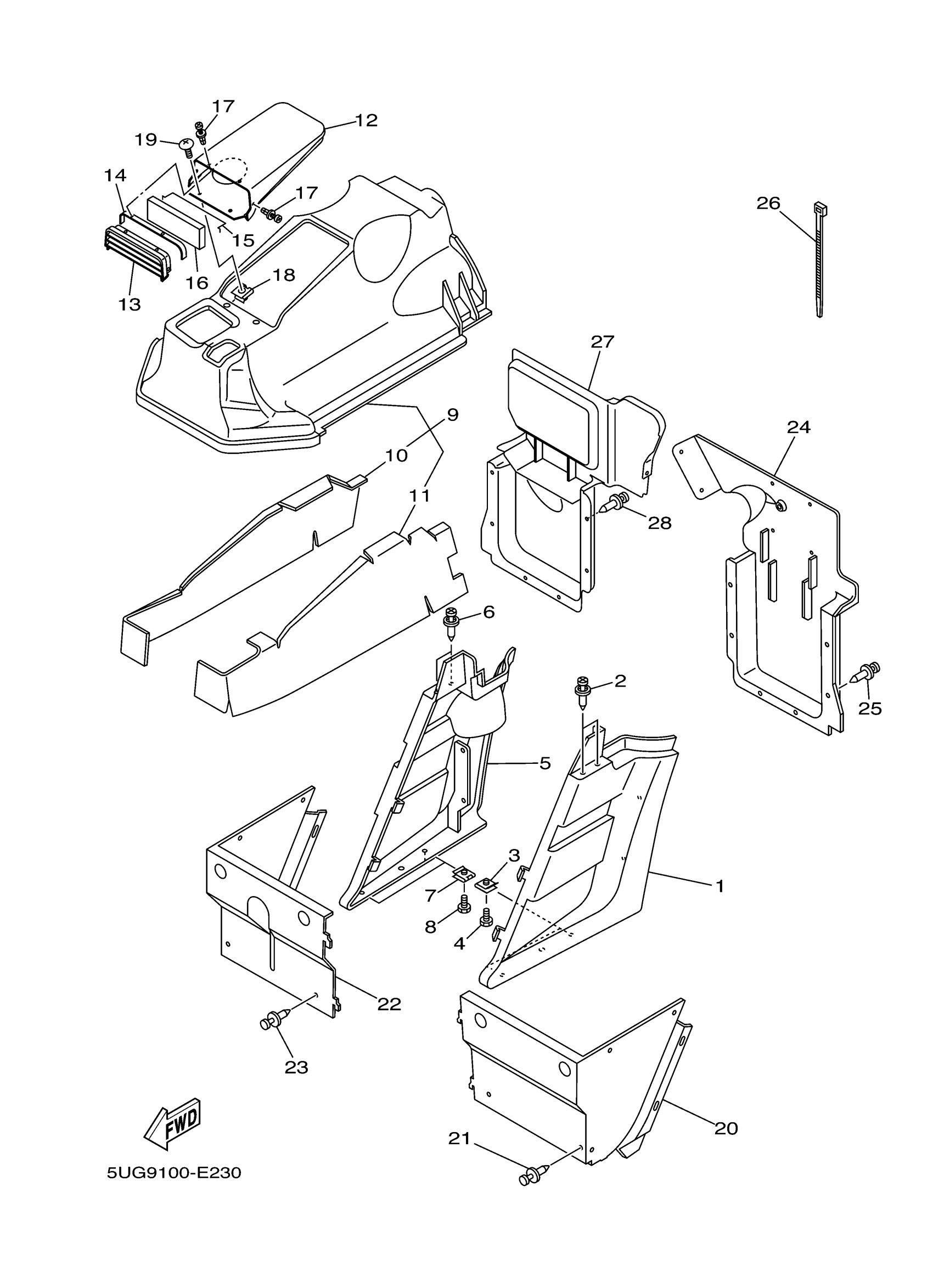

Yamaha YXR66FASEV (RHINO 660 4WD SPECIAL EDITION) 5UGB 2006 SIDE COVERS Diagram

#

Description
Price

1

SIDE PANEL COMP.1

5UG-K810F-01-00

Unavailable

2

RIVET

90269-06800-00

$1.49

3

NUT, SPRING

90183-05008-00

$6.35

4

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$2.65

5

SIDE PANEL COMP.2

5UG-K810G-01-00

Unavailable

6

RIVET

90269-06800-00

$1.49

7

NUT, SPRING

90183-05008-00

$6.35

8

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$2.65

9

COVER ASSY

2P5-F8108-00-00

Unavailable

10

. SEAL 1

5UG-F2873-10-00

Unavailable

11

. SEAL 3

5UG-F2875-10-00

Unavailable

12

BOX

5UG-2177A-00-00

$70.44

13

COVER 2

5UG-28229-00-00

$39.91

14

SEAL

5UG-14457-00-00

$3.35

15

HOLDER, WIRE

5UG-14415-00-00

Unavailable

16

SEAL

5UG-14476-00-00

Unavailable

17

RIVET

90269-05001-00

Unavailable

18

NUT, SPRING

90183-05008-00

$6.35

19

SCREW, BINDING (8J0)

90154-05005-00

Unavailable

20

SUPPORT, SIDE PANEL

5UG-F254J-00-00

Unavailable

21

RIVET

90269-06800-00

$1.49

22

SUPPORT, SIDE PANEL 2

5UG-F254K-00-00

Unavailable

23

RIVET

90269-06800-00

$1.49

24

PROTECTOR, SIDE 1

5UG-K7561-02-00

Unavailable

25

RIVET

90269-06800-00

$1.49

26

CLAMP

90464-48800-00

Unavailable

27

PROTECTOR, FUEL TA

5UG-F4141-01-00

Unavailable

28

RIVET

90269-06800-00

$1.49
