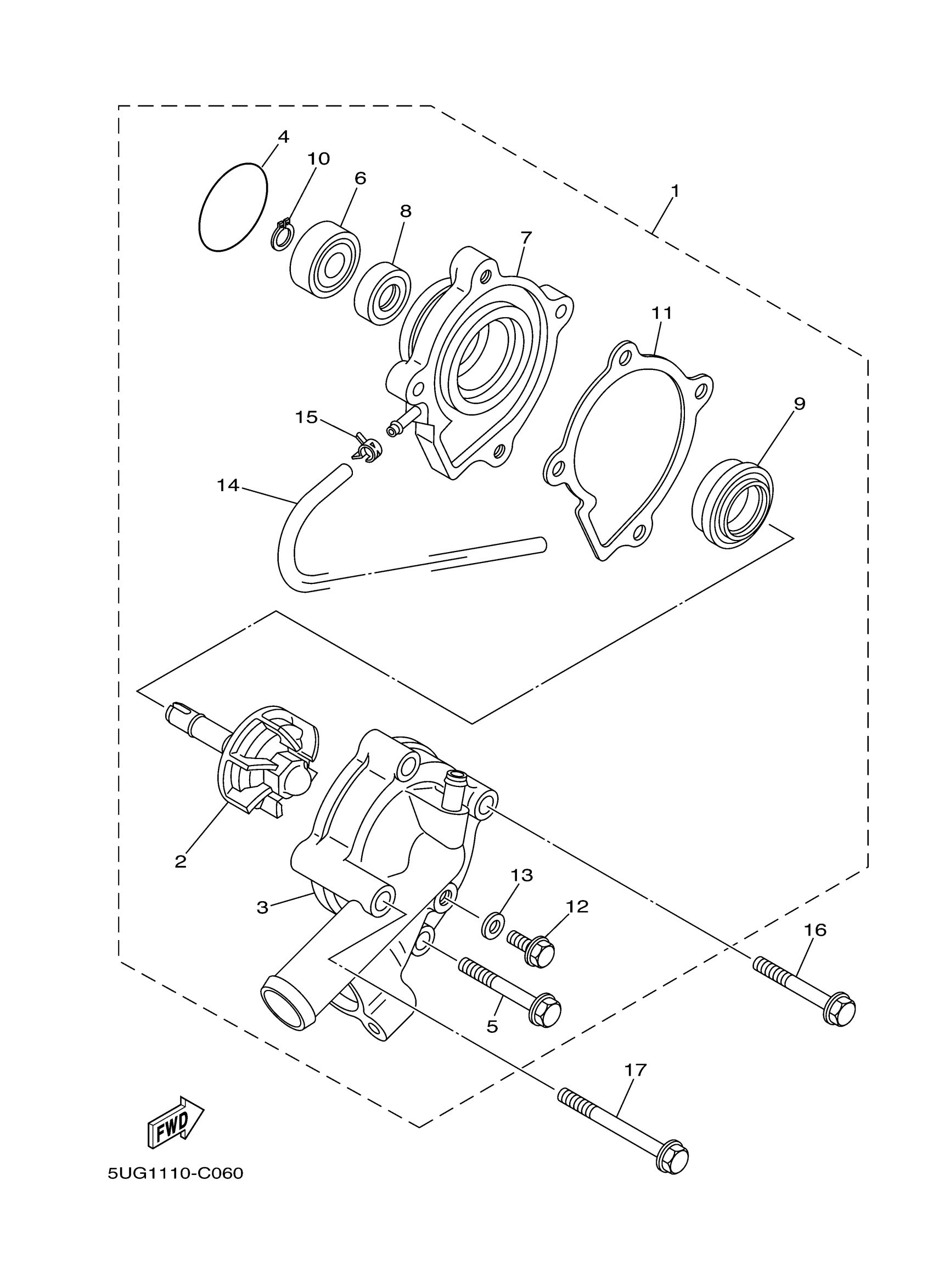

Yamaha YXR66FAHV (RHINO 660 4WD HUNTER) 5UGF 2006 WATER PUMP Diagram

WATER PUMP ASSY

5KM-12420-10-00

$253.43

IMPELLER SHAFT ASSY

5KM-12450-10-00

$78.58

. COVER, HOUSING

5KM-12422-00-00

Unavailable

O-RING (626)

93210-33133-00

$3.01

. BOLT, FLANGE

90105-06023-00

Unavailable

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$31.81

. HOUSING, WATER PUMP

5KM-12421-00-00

Unavailable

OIL SEAL (J10)

93101-10090-00

Unavailable

SEAL, MECHANICAL

11H-12438-10-00

Unavailable

CIRCLIP(10W)

99009-10400-00

Unavailable

GASKET, HOUSING COVER 2

5KM-12428-00-00

$6.72

BOLT, FLANGE(4MY)

95027-06012-00

$3.28

GASKET 256113960000

90430-06014-00

Unavailable

HOSE(7FK)

90446-04254-00

$6.85

CLIP

90467-06194-00

$1.32

BOLT, SMALL FLANGE

95027-06045-00

Unavailable

BOLT, SMALL FLANGE

95027-06065-00

Unavailable
