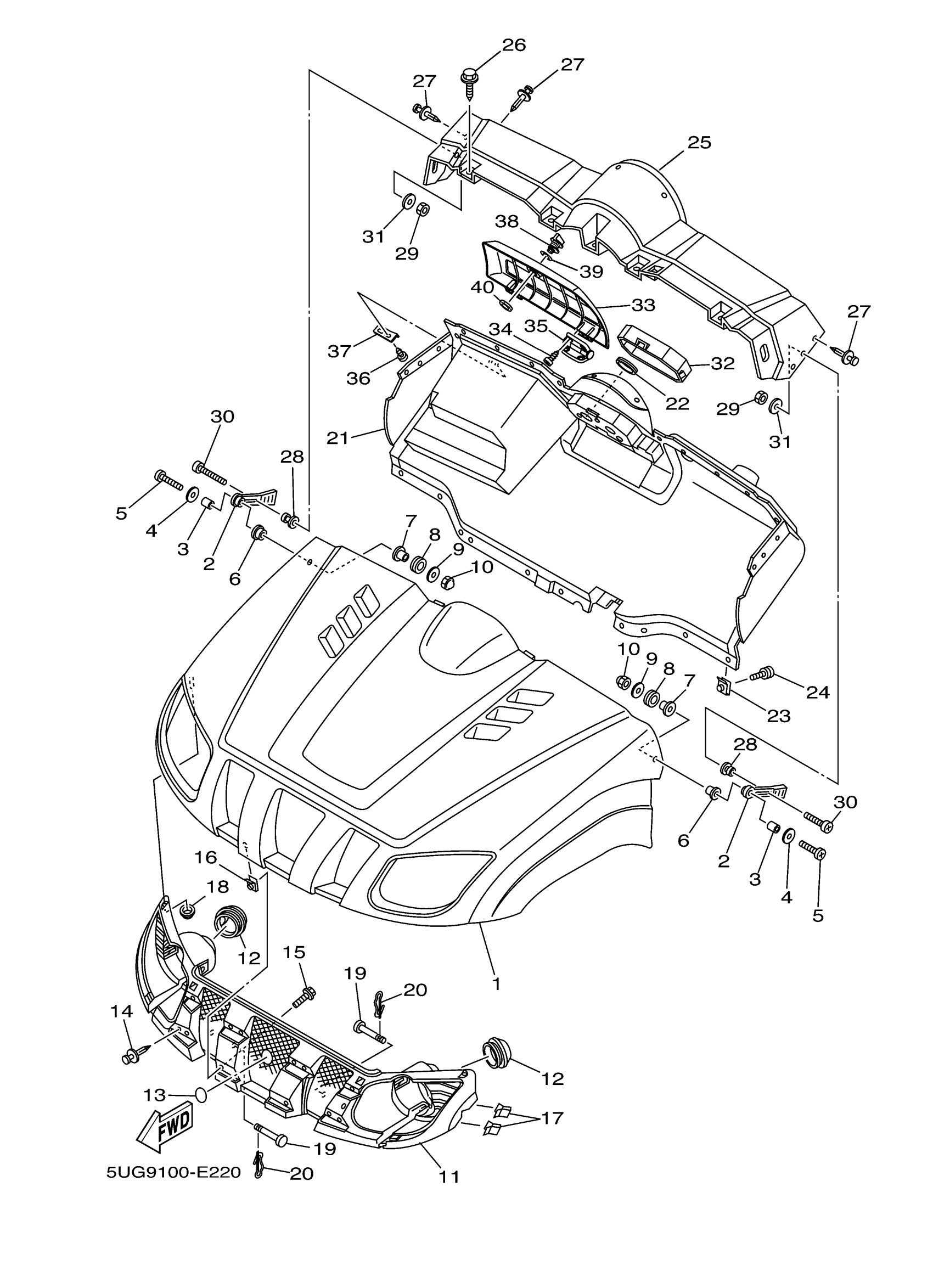

Yamaha YXR66FAHV (RHINO 660 4WD HUNTER) 5UGF 2006 FRONT FENDER Diagram

#

Description
Price

1

FENDER,FRONT (CAMO-HD)

5UG-F1510-F0-00

Unavailable

2

BODY, LATCH 1

8V0-77171-00-00

$17.51

3

COLLAR (420)

90387-06241-00

$5.88

4

WASHER, PLATE

90201-06557-00

$2.63

5

SCREW, BINDING

98907-06035-00

$7.13

6

C0LLAR

90387-062M9-00

$6.30

7

COLLAR (6G1)

90387-06M52-00

$6.67

8

GROMMET(2GH)

90480-12475-00

$6.35

9

WASHER, PLATE

90201-06557-00

$2.63

10

NUT(4MY)

95307-06800-00

$2.73

11

GRILL, FRONT

5UG-F8309-11-00

Unavailable

12

CAP

5GH-28349-00-00

$7.84

13

TUNING FORK MARK

5FU-F175B-01-00

$13.64

14

RIVET

90269-06804-00

$1.49

15

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$2.65

16

NUT, SPRING

90183-050A0-00

Unavailable

17

CLIP

5UG-F3447-00-00

$1.78

18

NUT, SPRING

90183-08800-00

Unavailable

19

PIN,CLEVIS

90240-13802-00

Unavailable

20

CLIP(3YF)

90468-16191-00

Unavailable

21

PANEL, FRONT

5UG-F3391-03-00

Unavailable

21

PANEL,FRONT

5UG-F3391-04-00

Unavailable

22

GROMMET 117217730000

90480-40047-00

Unavailable

23

NUT, SPRING(4TV)

90183-05073-00

Unavailable

24

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$2.65

25

PANEL,(HD CAMO-DASH COVER)

5UG-F3312-F0-00

Unavailable

26

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.49

27

RIVET

90269-06800-00

Unavailable

28

. HOLDER, LATCH

8M6-77175-00-00

$12.12

29

NUT, NYLON

95707-06300-00

Unavailable

30

SCREW, BINDING

98907-06035-00

$7.13

31

WASHER PLATE 248217570000

90201-06074-00

Unavailable

32

PANEL, CONSOLE 1

5UG-F837L-00-00

Unavailable

33

LID, GLOVE BOX

5UG-K7736-00-00

$30.32

34

SCREW, TAPPING

90164-04800-00

$1.49

35

HINGE

5UG-F1797-00-00

Unavailable

36

SCREW, TAPPING (GLOVE BOX)

90164-05800-00

Unavailable

37

BRACKET,COVER

5UG-F139T-10-00

$4.82

38

LOCK ASSY

5UG-F16A0-00-00

$38.95

39

GASKET

5UG-F3139-00-00

$1.65

40

NUT

5UG-F1494-00-00

$3.83

41

PLUG, PILOT LIGHT

5B4-H3530-09-00

Unavailable
