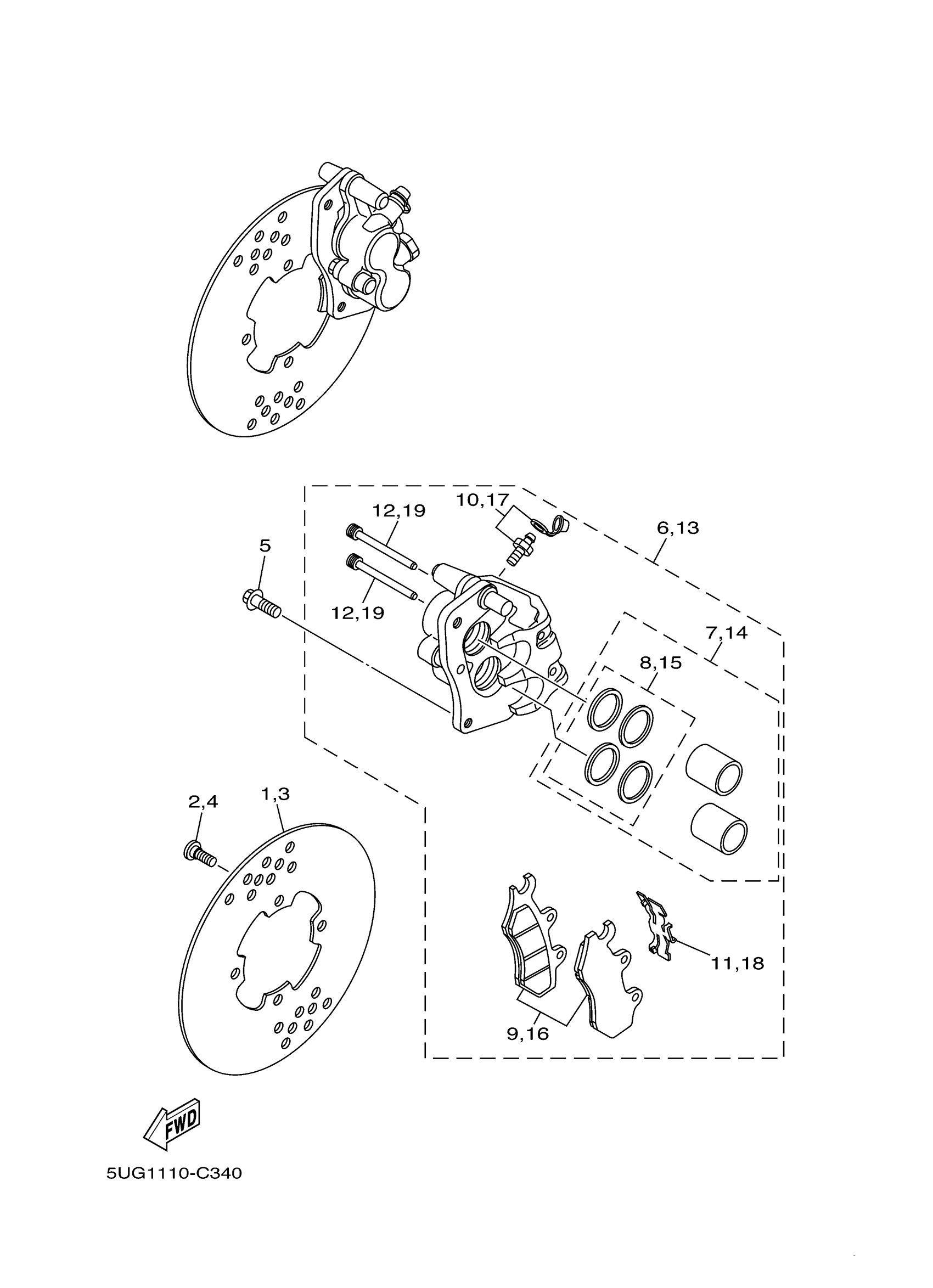

Yamaha YXR66FAHV (RHINO 660 4WD HUNTER) 5UGF 2006 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

5B4-F582T-00-00

$56.24

2

BOLT

90109-08087-00

$2.65

3

DISC, BRAKE (LEFT)

5B4-F582T-00-00

$56.24

4

BOLT

90109-08087-00

$2.65

5

BOLT, FLANGE

90105-10082-00

$4.35

6

CALIPER ASSY (RIGHT)

5B4-2580U-01-00

$375.40

7

PISTON ASSY, CALIPER

3LD-25802-00-00

Unavailable

8

CALIPER SEAL KIT

3JD-25803-00-00

Unavailable

9

BRAKE PAD KIT

5B4-W0045-10-00

$51.99

10

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

11

SPRING, PAD

3LD-25934-01-00

$26.56

12

PIN, PAD

3FV-25924-00-00

Unavailable

13

CALIPER ASSY (LEFT)

5B4-2580T-01-00

$421.97

14

PISTON ASSY, CALIPER

3LD-25802-00-00

Unavailable

15

CALIPER SEAL KIT

3JD-25803-00-00

Unavailable

16

BRAKE PAD KIT

5B4-W0045-00-00

Unavailable

17

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

18

SPRING, PAD

3LD-25934-01-00

$26.56

19

PIN, PAD

3FV-25924-00-00

Unavailable
